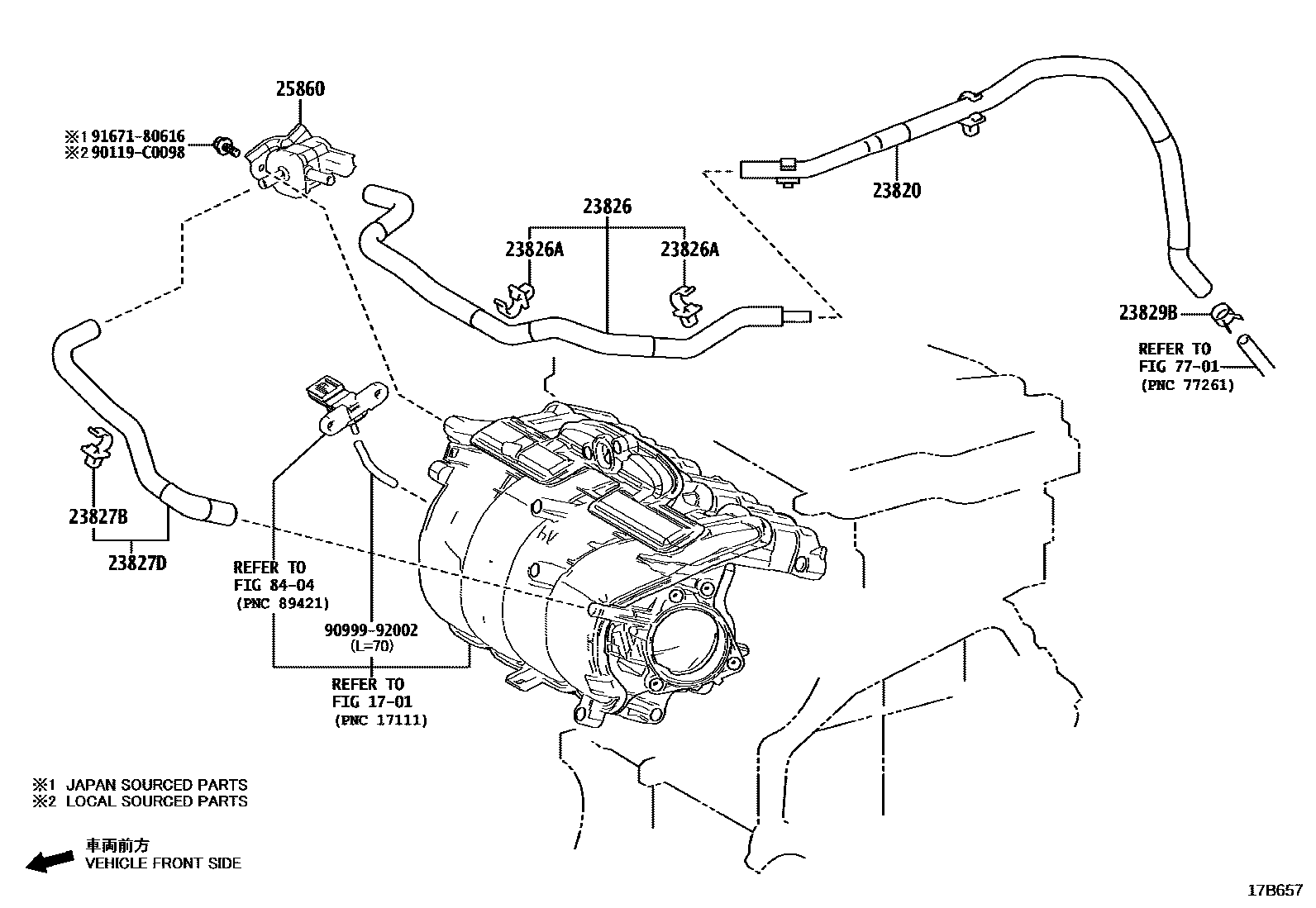

VACUUM PIPING

0001 1 0002 1 0003 1

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-F0390iA25DFXS..AXUH7#202108-202405

main23820-F6010iS20AFTS..SXUA75202209-202405

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-25051iA25DFXS..AXUH7#202108-202405

(J)

main23820-F0440iA25DFXS..AXUH7#202108-202405

(L)

main23826-25280iS20AFTS..SXUA75202209-202405

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main77196-0E010iA25DFXS..AXUH7#202108-202405

(L)

main77196-50030iA25DFXS..AXUH7#202108-202405

(J)

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main77196-0E010iA25DFXS..AXUH7#202108-202405

(L)

main77196-50030iA25DFXS..AXUH7#202108-202405

(J)

23827DHOSE, FUEL VAPOR FEED, NO.2

main23820-25130iA25DFXS..AXUH7#202108-202405

(J)

main23820-F0450iA25DFXS..AXUH7#202108-202405

(L)

main23827-25150iS20AFTS..SXUA75202209-202405

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-C0021iS20AFTS..SXUA75202209-202405

main96133-41501iA25DFXS..AXUH7#202108-202405

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25020iA25DFXS..AXUH7#202108-202405

(J)

main25860-25080iS20AFTS..SXUA75202209-202405

main25860-F0070iA25DFXS..AXUH7#202108-202405

(L)

7701

8404

90119C0098

main90119-C0098

9099992002

main90999-92002

9167180616

main91671-80616

13 parts on this diagram · 3 diagrams in section
