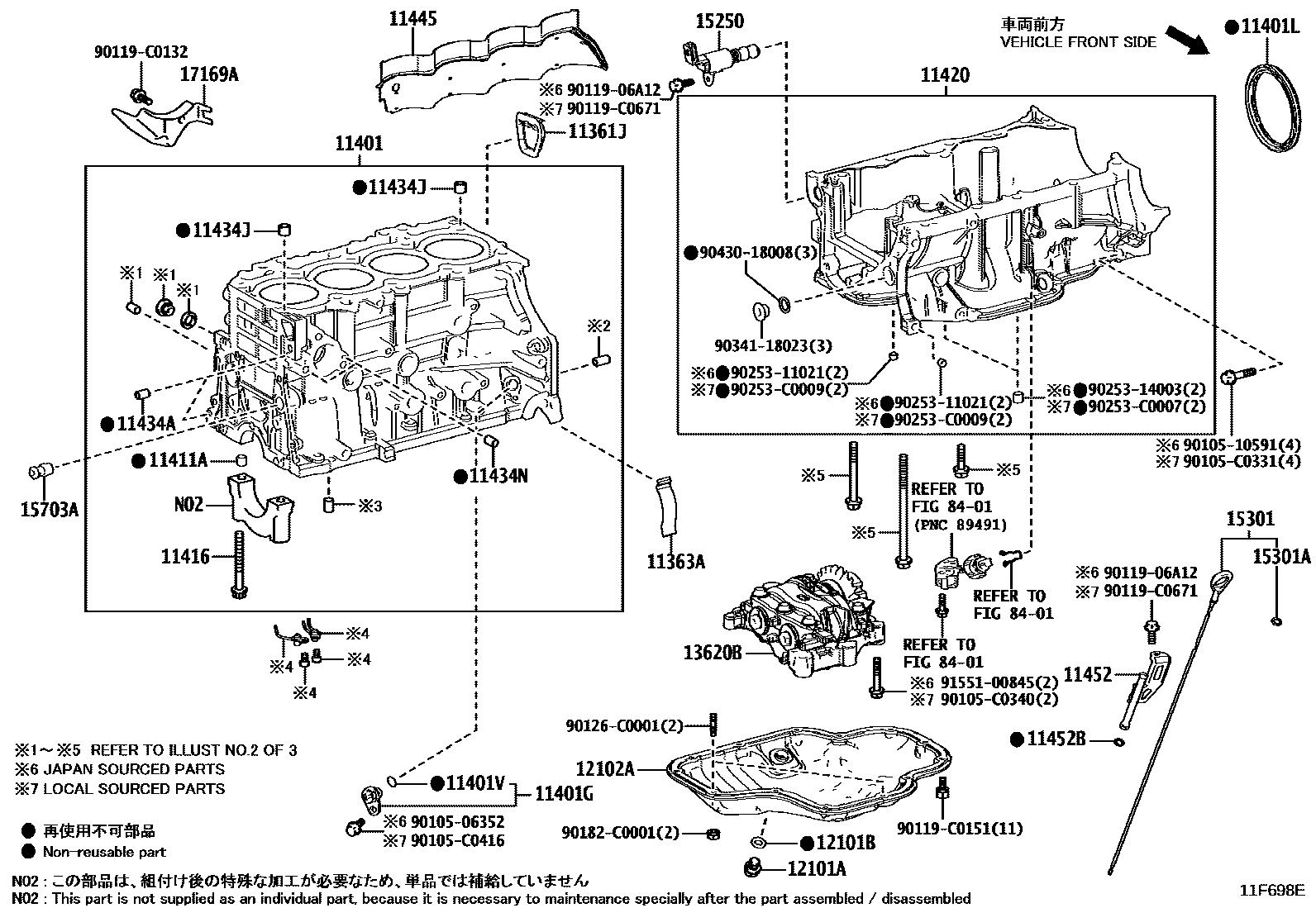

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
(J)
(L)
11363ACOVER, FLYWHEEL HOUSING SIDE
(J)
(L)
11401BLOCK SUB-ASSY, CYLINDER
11401GSENSOR, CRANK POSITION
(J)
(L)
11401LSEAL, ENGINE REAR OIL
11401VO-RING, CRANK POSITION SENSOR
11411APIN, RING(FOR CYLINDER BLOCK NO.1 )
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.3:REFER ILLUST.
11420CRANKCASE ASSY, STIFFENING
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
11445SPACER, CYLINDER BLOCK WATER JACKET
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
(L)
(J)
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
13620BBALANCER ASSY, ENGINE
15250VALVE ASSY, OIL PRESSURE CONTROL
(J)
(L)
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
(L)
(J)
15703AVALVE SUB-ASSY, OIL NOZZLE
(J)
(L)
17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3
8401
9010506352
main90105-06352
9010510591
main90105-10591
90105C0331
main90105-C0331
90105C0340
main90105-C0340
90105C0416
main90105-C0416
9011906A12
main90119-06A12
90119C0132
main90119-C0132
90119C0151
main90119-C0151
90119C0671
main90119-C0671
90126C0001
main90126-C0001
90182C0001
main90182-C0001
9025311021
main90253-11021
9025314003
main90253-14003
90253C0007
main90253-C0007
90253C0009
main90253-C0009
9034118023
main90341-18023
9043018008
main90430-18008
9155100845
main91551-00845
43 parts on this diagram · 4 diagrams in section
