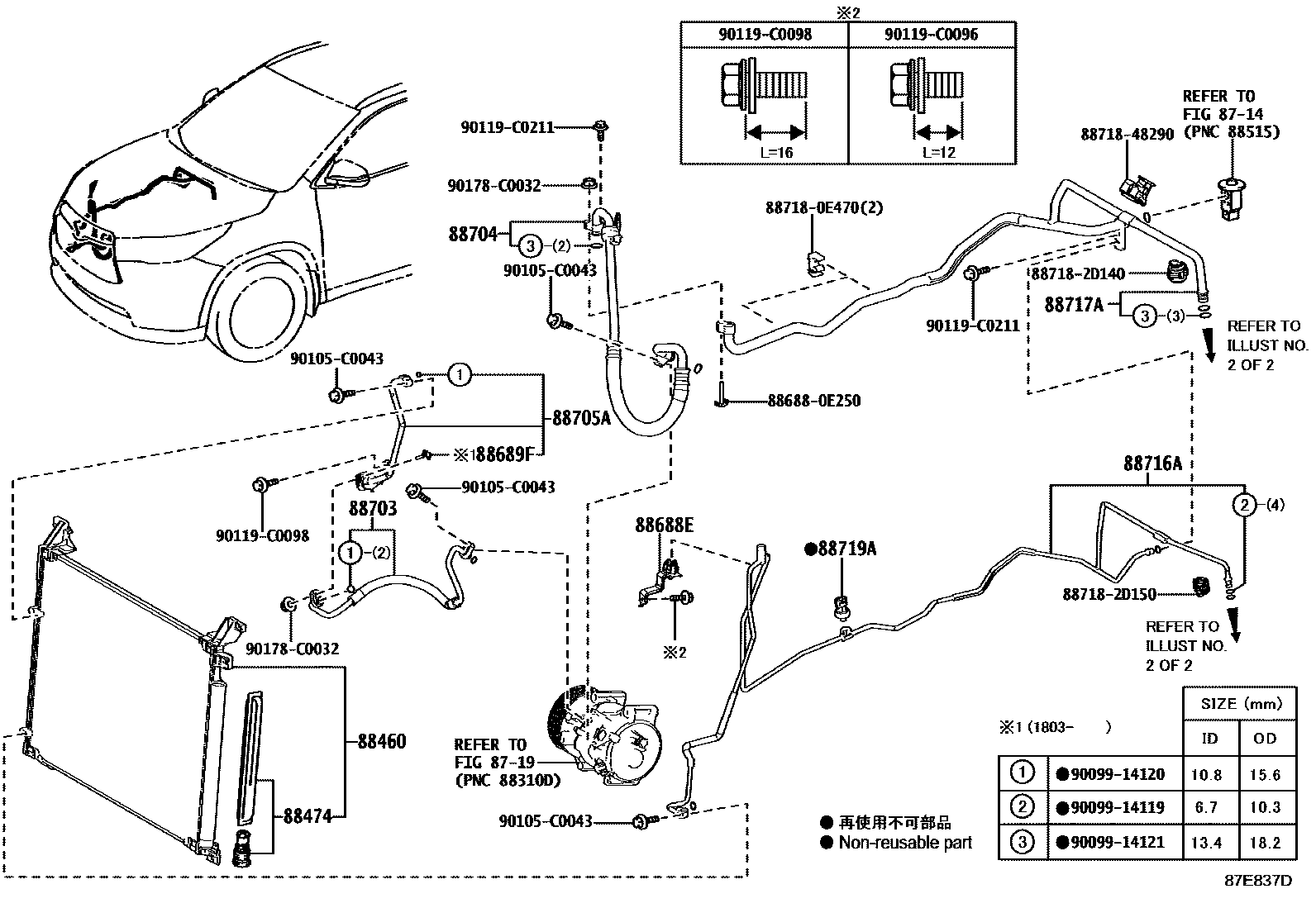

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT 0002 1FRONT 0003 1REAR

8714

8719

88460CONDENSER ASSY, COOLER

main88460-0E090iGSU55201503-201710

main88460-0E100iASU5#201503-201803

main88460-0E140iASU5#201909

main88460-0E150iASU5#201803-201909

88474DRYER, COOLER

main88474-12010iASU5#201503-201803

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-0E140iGSU55201503-201803

88689FBRACKET, COOLER, NO.2

main88688-0E250iASU5#201803

88703HOSE SUB-ASSY, DISCHARGE

main88703-0E130iASU5#201503-201803

main88703-0E140iGSU55201503-201710

88704HOSE SUB-ASSY, SUCTION

main88704-0E240iASU5#201503-201803

main88704-0E250iGSU55201503-201710

88705ATUBE SUB-ASSY, DISCHARGE

main88705-0E080iASU5#201503-201803

main88705-0E090iGSU55201503-201710

main88705-0E100iASU5#201803

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-0E410iASU5#201503-201803

main88716-0E420iGSU55201503-201710

main88716-0E530iASU5#201803

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-0E230iASU5#201503-201803

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iGSU55201503-201803

886880E250BRACKET, COOLER DIAPHRAGM

main88688-0E250

887180E470PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0E470

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871848290PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48290

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

90105C0043

main90105-C0043

90119C0096

main90119-C0096

90119C0098

main90119-C0098

90119C0211

main90119-C0211

90178C0032

main90178-C0032

25 parts on this diagram · 3 diagrams in section
