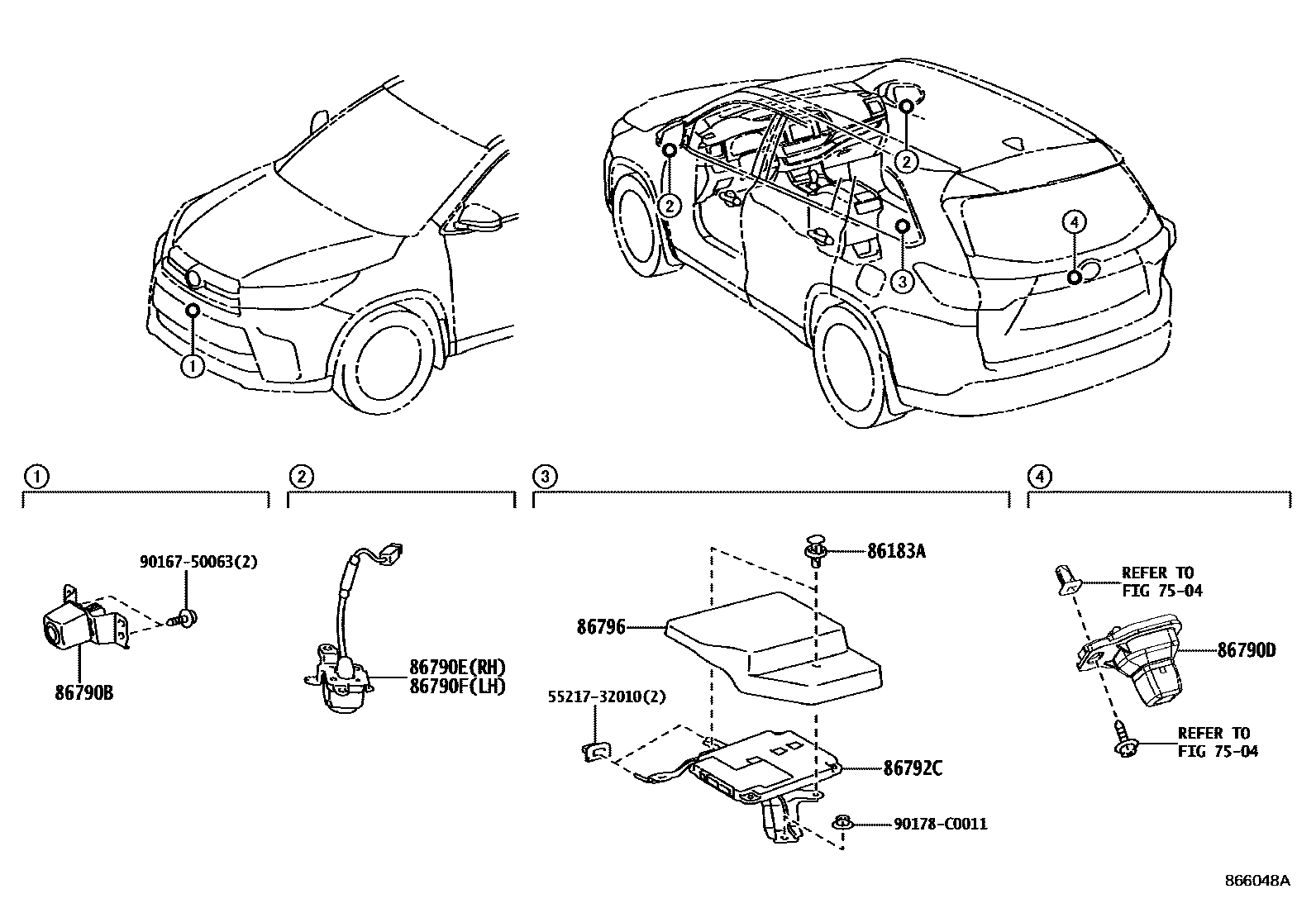

CAMERA & REAR MONITOR DISPLAY

7504

86183ACLIP(FOR AUDIO RACK COVER)

main90467-07220iASU55..LIMD201803

86790BCAMERA ASSY, TELEVISION, FR

main86790-0E140iASU55..LIMD201803

86790DCAMERA ASSY, TELEVISION, RR

main86790-0E040iASU55..SPO201909-202101

SPORT PACKAGE(*PBD & HEADLAMP:LED)

main86790-0E040iASU5#..SPO202101

main86790-0E040iASU5#..SPO201803-202101

SPORT PACKAGE(*PBD & HEADLAMP:*HAL)

main86790-0E110iASU55..LIMD201803

main867B0-0E020iASU5#..LIMD,SPO201503-201803

main867B0-0E110iASU5#..SPO201803-202101

main867B0-0E110iASU5#..SPO202105

AUDIO-*DA & 6SPEAKER

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-0R110iASU55..LIMD201803

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-0R100iASU55..LIMD201803

86792CCOMPUTER, PARKING ASSIST

main86792-48350iASU55..LIMD201803

86796COVER, COMPUTER PARKING ASSIST

main86796-0E020iASU55..LIMD201803

5521732010STRIP, DASH PANEL SILENCER FINISH

main55217-32010

9016750063

main90167-50063

90178C0011

main90178-C0011

11 parts on this diagram · 1 diagram in section
