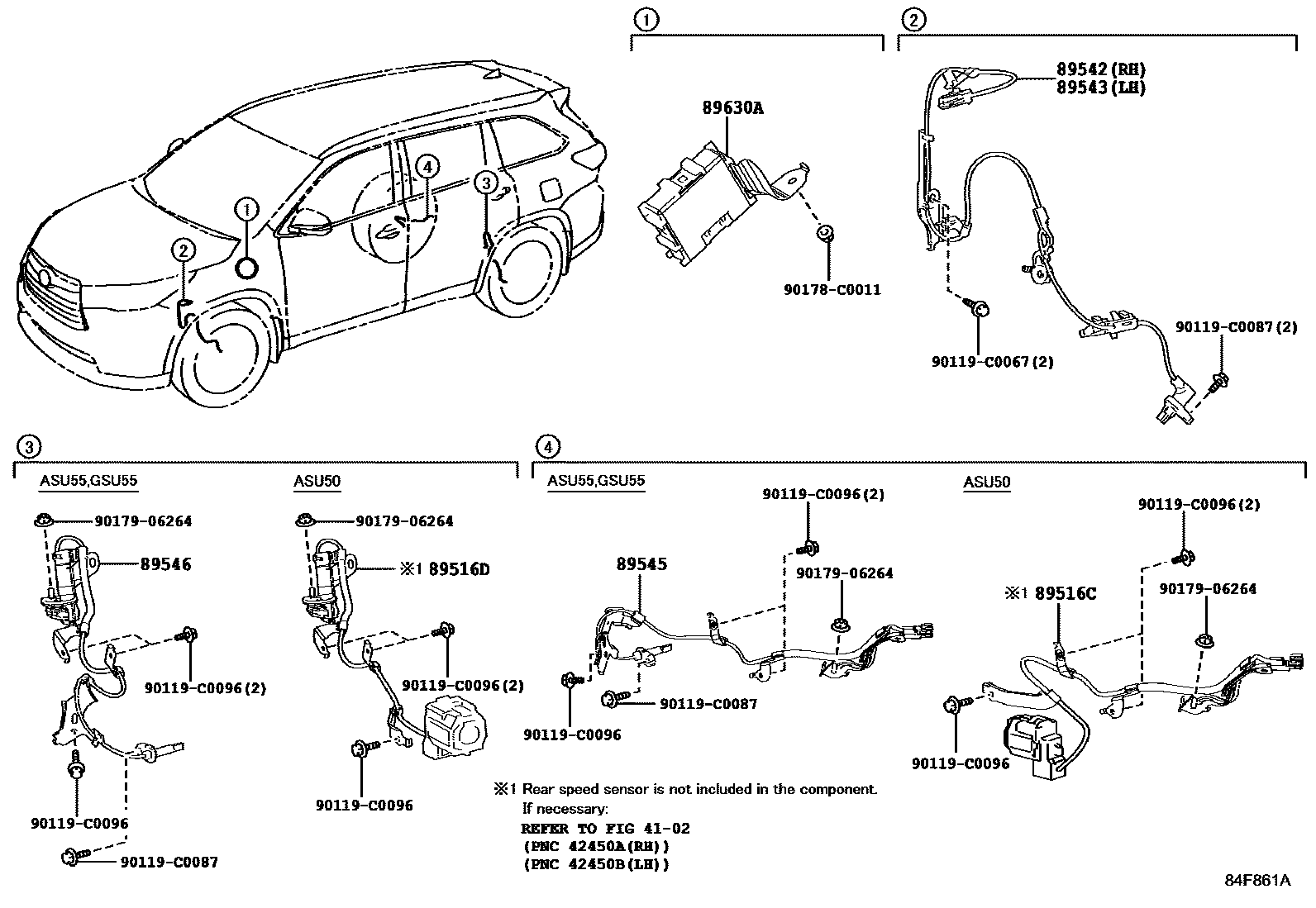

ABS & VSC

4102

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-0E100iASU50201503-201803

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-0E110iASU50201503-201803

89542SENSOR, SPEED, FRONT RH

main89542-0E090iGSU55201503-201710

89543SENSOR, SPEED, FRONT LH

main89543-0E090iGSU55201503-201710

89545SENSOR, SPEED, REAR RH

main89545-0E080iGSU55201503-201710

89546SENSOR, SPEED, REAR LH

main89546-0E070iGSU55201503-201710

89630ACOMPUTER ASSY, 4WD

main89630-48060iGSU55201503-201710

90119C0067

main90119-C0067

90119C0087

main90119-C0087

90119C0096

main90119-C0096

90178C0011

main90178-C0011

9017906264

main90179-06264

13 parts on this diagram · 1 diagram in section
