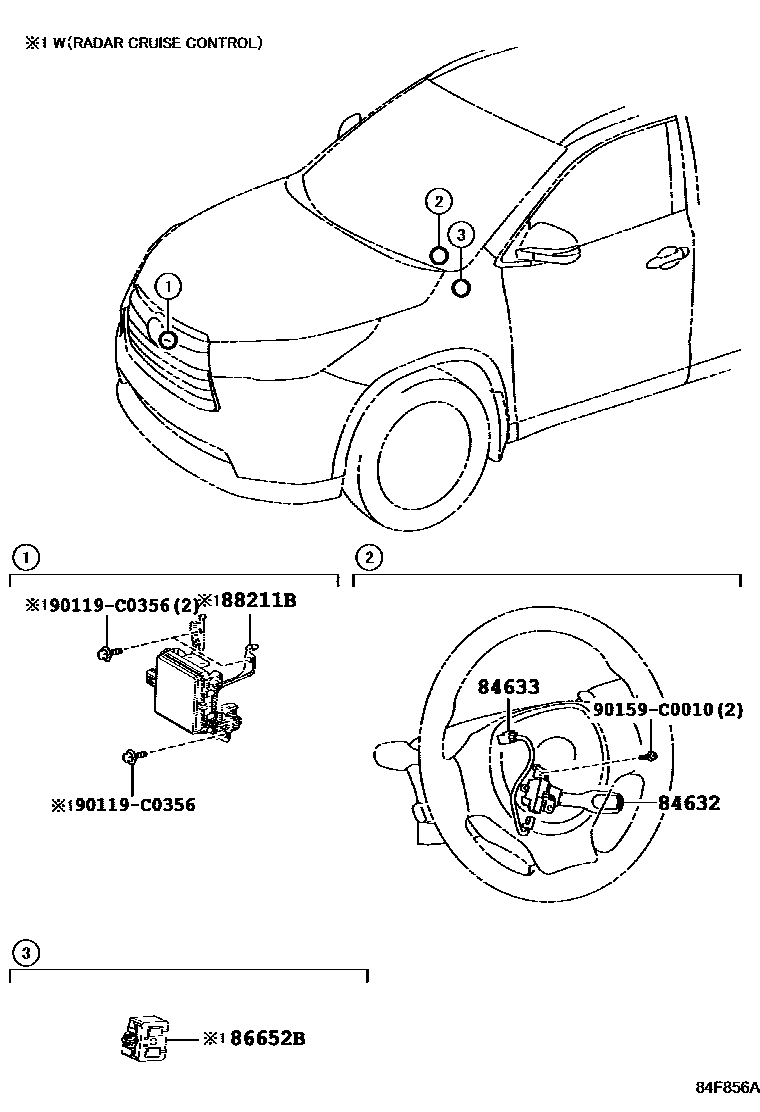

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

84632SWITCH, CRUISE CONTROL MAIN

main84632-02020iASU5#..SPO201503-201803

main84632-0N010iASU5#..LIMD201503-201803

main84632-0R020iASU5#..LIMD,SPO201803

84633WIRE, CRUISE CONTROL SWITCH

main84633-0E060iGSU55..SPO201503-201803

main84633-0E070iASU5#..LIMD,SPO201803

main84633-0N010iASU5#..LIMD201503-201803

86652BBUZZER, SKID CONTROL

main86652-50010iASU5#..LIMD,SPO201503-201803

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-0E030iASU5#..LIMD,SPO202105

main88210-47090iASU5#..LIMD,SPO201803-202104

main88210-48082iGSU55..LIMD201503-201803

90119C0356

main90119-C0356

90159C0010

main90159-C0010

6 parts on this diagram · 2 diagrams in section
