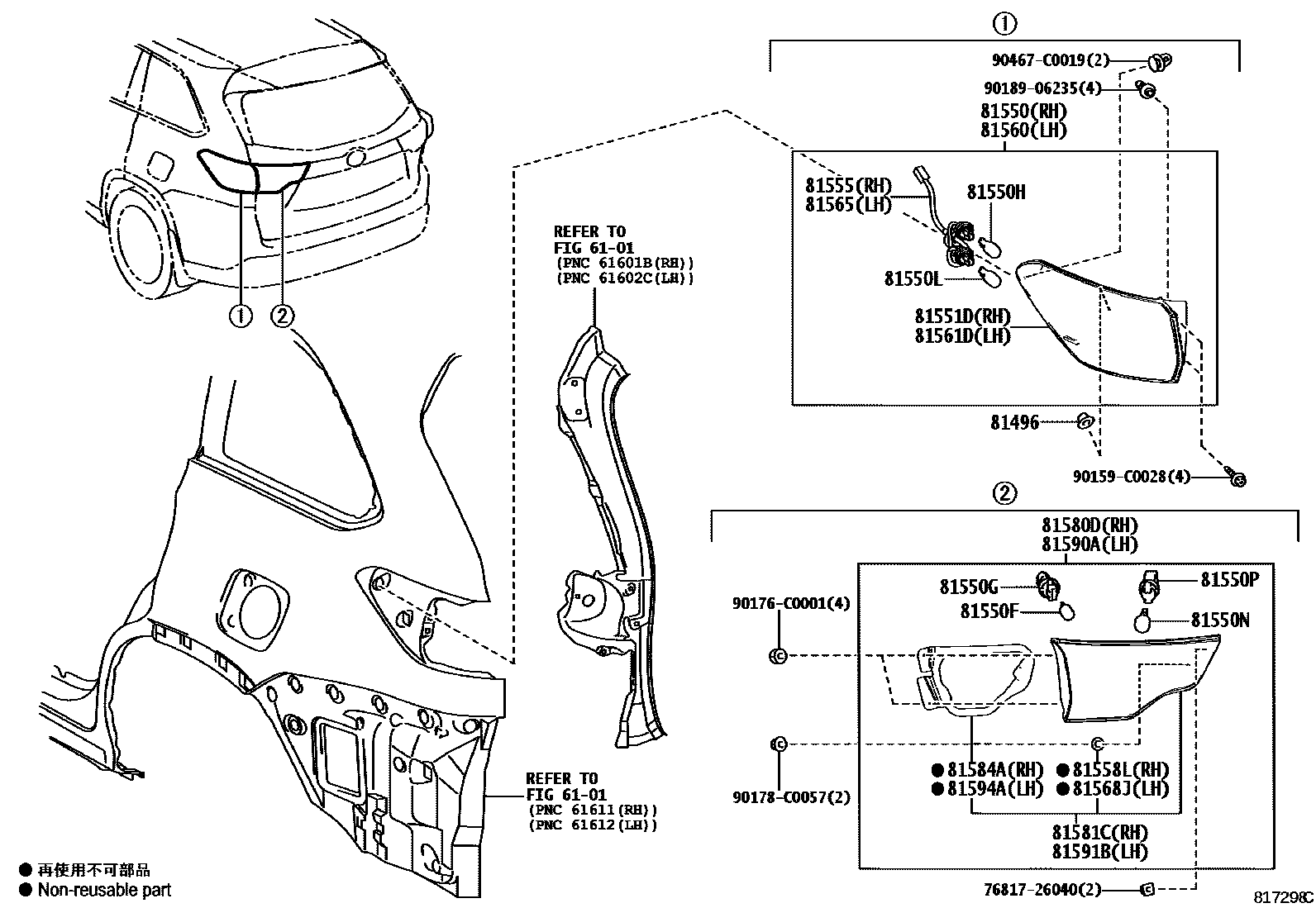

REAR COMBINATION LAMP
6101
81496GUIDE, REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
SPECIAL BLACK PACKAGE
BLACK EDITION
81550FBULB, TAILLAMP
12V 5W
81550GSOCKET, TAILLAMP
81550HBULB, TAIL & STOP LAMP
12V 21/5W
81550LBULB, REAR TURN SIGNAL LAMP
12V 21W,AMBER
81550NBULB, BACK UP LAMP
12V 16W
81550PSOCKET, BACK UP LAMP
81551DLENS & BODY, REAR COMBINATION LAMP, RH
BLACK EDITION
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81558LPROTECTOR, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
SPECIAL BLACK PACKAGE
BLACK EDITION
81561DLENS & BODY, REAR COMBINATION LAMP, LH
BLACK EDITION
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81568JPROTECTOR, REAR COMBINATION LAMP, LH
81580DLAMP ASSY, REAR, RH
SPECIAL BLACK PACKAGE
BLACK EDITION
81581CLENS AND BODY, REAR LAMP, RH
BLACK EDITION
81590ALAMP ASSY, REAR, LH
SPECIAL BLACK PACKAGE
BLACK EDITION
81591BLENS AND BODY, REAR LAMP, LH
BLACK EDITION
7681726040CLIP, BACK DOOR OUTSIDE GARNISH
main76817-26040
90159C0028
main90159-C0028
90176C0001
main90176-C0001
90178C0057
main90178-C0057
9018906235
main90189-06235
90467C0019
main90467-C0019
28 parts on this diagram · 2 diagrams in section
