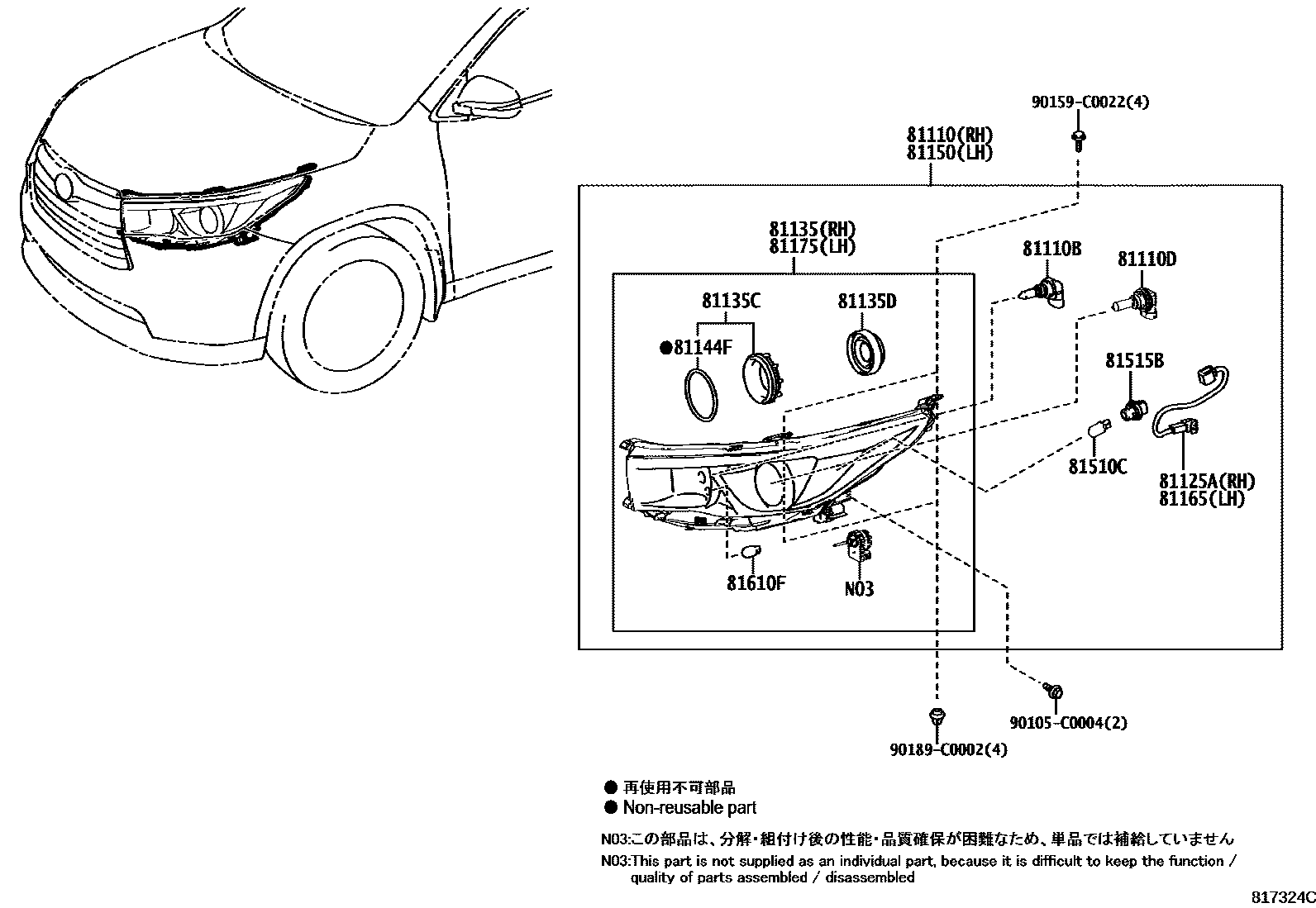

HEADLAMP
81110HEADLAMP ASSY, RH
SPORT PACKAGE(*PBD & HEADLAMP:LED)
SPORT PACKAGE(*PBD & HEADLAMP:*HAL)
SPECIAL BLACK PACKAGE
SPORT LED PACKAGE
BLACK EDITION
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,HALOGEN
81125ACORD, HEADLAMP, RH
81135UNIT ASSY, HEADLAMP, RH
BLACK EDITION
81135CCOVER, HEADLAMP BACK, NO.1
SPORT PACKAGE(*PBD & HEADLAMP:LED)
SPECIAL BLACK PACKAGE
SPORT LED PACKAGE
81135DCOVER, HEADLAMP BACK, NO.2
81144FO-RING, HEADLAMP COVER
SPECIAL BLACK PACKAGE
SPORT PACKAGE(*PBD & HEADLAMP:LED)
SPORT LED PACKAGE
81150HEADLAMP ASSY, LH
SPORT PACKAGE(*PBD & HEADLAMP:LED)
SPORT PACKAGE(*PBD & HEADLAMP:*HAL)
SPECIAL BLACK PACKAGE
SPORT LED PACKAGE
BLACK EDITION
81165CORD, HEADLAMP, LH
81175UNIT ASSY, HEADLAMP, LH
BLACK EDITION
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
90105C0004
main90105-C0004
90159C0022
main90159-C0022
90189C0002
main90189-C0002
17 parts on this diagram · 4 diagrams in section
