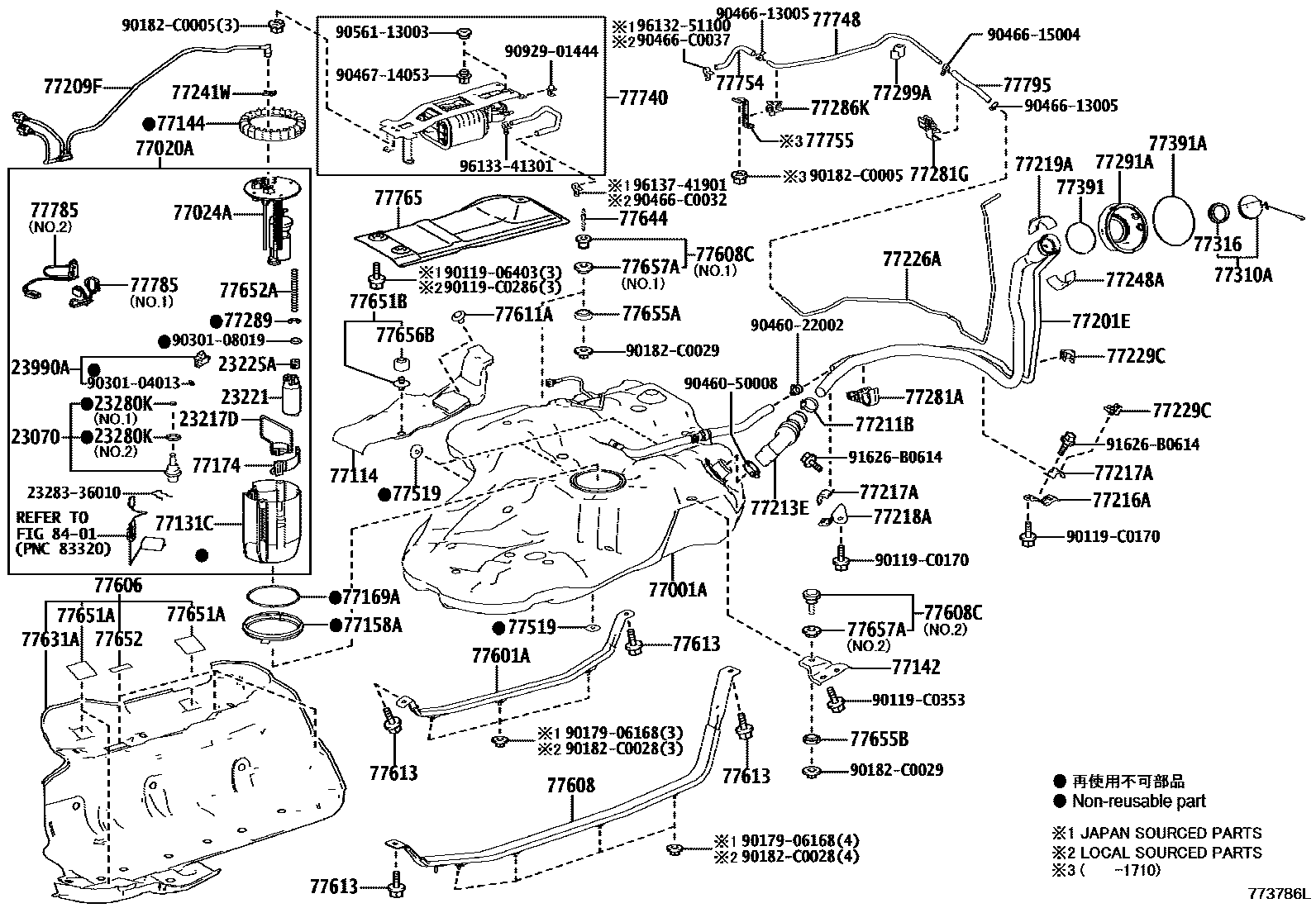

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23217DFILTER, FUEL PUMP
23225ASPACER, FUEL PUMP
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23990AVALVE ASSY, PRESSURE DISCHARGE
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77114PLATE, FUEL TANK SIDE, REAR
77131CSUB-TANK, FUEL, NO.1
77142BRACKET, FUEL TANK MOUNTING, REAR
77144RETAINER, FUEL PUMP GAUGE
77158ASUPPORT, TANK SUCTION TUBE
77174SUPPORT, FUEL SUCTION, NO.1
77209FTUBE SUB-ASSY, FUEL TANK MAIN
(L)
(J)
77211BCLAMP (FOR FUEL FILLER PIPE)
77213EHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77241WCLIP, TUBE JOINT
77248AHOLDER, FUEL TANK FILLER PIPE COVER
77286KCLAMP, FUEL TUBE, NO.2
77289HOLDER, FUEL TANK PIPE SETTING
77291ASHIELD, FUEL TANK FILLER PIPE
77299ACLAMP, FUEL TUBE, NO.5
77391RING, FUEL INLET BOX
(L)
(J)
77391ARING, FUEL INLET BOX
77519SPACER, FUEL TANK BRACKET
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77608BAND SUB-ASSY, FUEL TANK, NO.2
77608CCUSHION SET, FUEL TANK
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77611APIN (FOR FUEL TANK BAND)
77613BOLT, FUEL TANK BAND SET
(J)
(L)
77631APROTECTOR, FUEL TANK, LOWER CENTER
77644BOLT, FUEL TANK
77651ACUSHION, FUEL TANK, NO.1
77651BCUSHION, FUEL TANK
77652CUSHION, FUEL TANK, NO.1
77655ACUSHION, FUEL TANK, NO.5
77655BCUSHION, FUEL TANK
77656BCUSHION, FUEL TANK, NO.6
77657ACUSHION, FUEL TANK, NO.5
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77748PIPE, CHARCOAL CANISTER, NO.2
77754HOSE, CHARCOAL CANISTER OUTLET, NO.1
77755BRACKET, CHARCOAL CANISTER OUTLET HOSE
77795HOSE, CHARCOAL CANISTER OUTLET, NO.2
8401
2328336010VALVE, VACUUM TRANSMITTING, NO.3
main23283-36010
9011906403
main90119-06403
90119C0170
main90119-C0170
90119C0286
main90119-C0286
90119C0353
main90119-C0353
9017906168
main90179-06168
90182C0005
main90182-C0005
90182C0028
main90182-C0028
90182C0029
main90182-C0029
9030104013
main90301-04013
9030108019
main90301-08019
9046022002
main90460-22002
9046050008
main90460-50008
9046613005
main90466-13005
9046615004
main90466-15004
90466C0032
main90466-C0032
90466C0037
main90466-C0037
9046714053
main90467-14053
9056113003
main90561-13003
9092901444
main90929-01444
91626B0614
main91626-B0614
9613251100
main96132-51100
9613341301
main96133-41301
9613741901
main96137-41901
87 parts on this diagram · 6 diagrams in section
