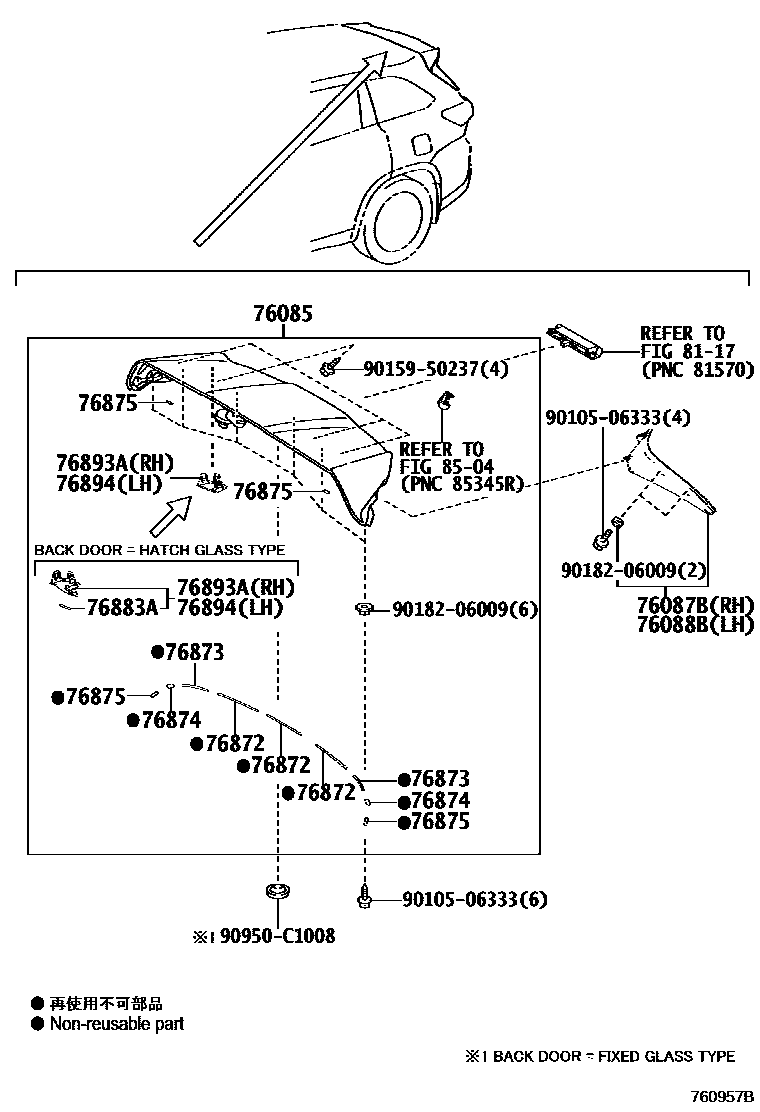

MUDGUARD & SPOILER
76085SPOILER SUB-ASSY, REAR
PAINT REQ.
PAINT REQ.,POWER BACK DOOR-WITH
PAINT REQ.
PAINT REQ.,SPORT PACKAGE(*PBD & HEADLAMP:*HAL)
76087BSPOILER SUB-ASSY, REAR SIDE, RH
76088BSPOILER SUB-ASSY, REAR SIDE, LH
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76874PROTECTOR, REAR SPOILER, NO.3
76875PROTECTOR, REAR SPOILER, NO.4
76883APROTECTOR, REAR SOPILER, NO.7
POWER BACK DOOR-WITH
SPORT PACKAGE(*PBD & HEADLAMP:*HAL)
76893ACOVER, REAR SPOILER, RH
POWER BACK DOOR-WITH
SPORT PACKAGE(*PBD & HEADLAMP:*HAL)
76894COVER, REAR SPOILER, LH
POWER BACK DOOR-WITH
SPORT PACKAGE(*PBD & HEADLAMP:*HAL)
8117
8504
9010506333
main90105-06333
9015950237
main90159-50237
9018206009
main90182-06009
90950C1008
main90950-C1008
16 parts on this diagram · 1 diagram in section
