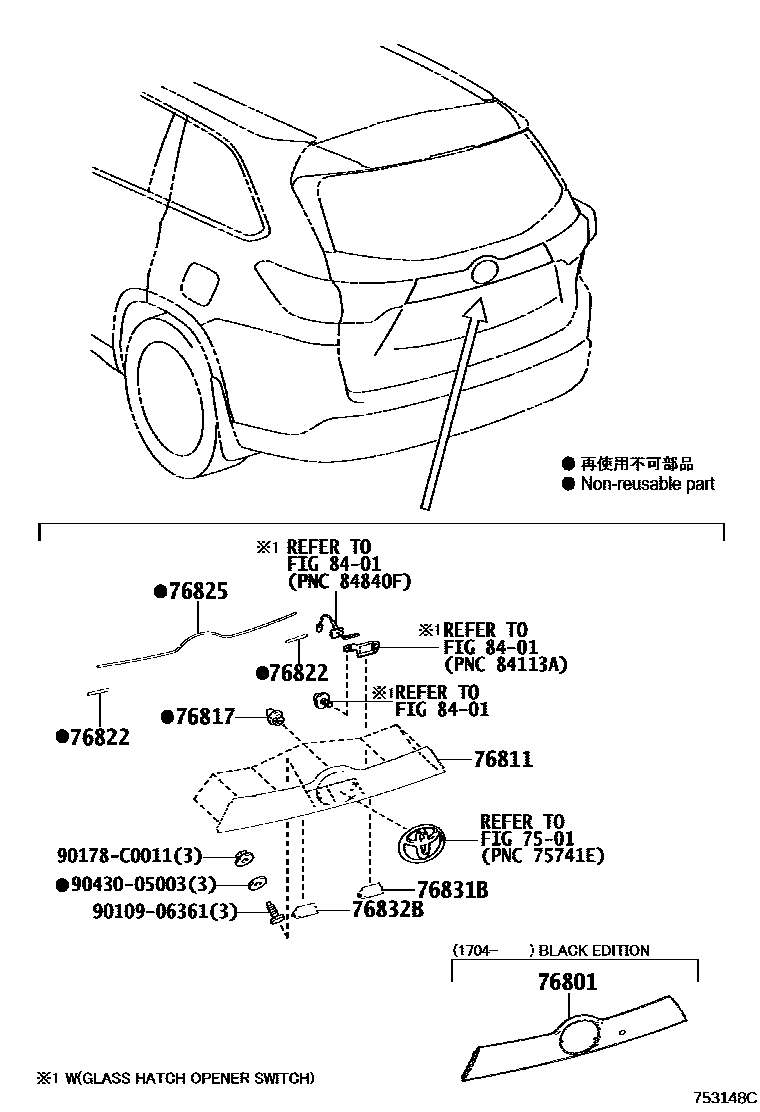

REAR MOULDING

7501

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-YY010

76811GARNISH, BACK DOOR, OUTSIDE

main76811-0E903iGSU55..D201503-201803

main76811-0E904iGSU55..SPO201503-201803

main76811-0E905iASU5#..LIMD201503-201803

POWER BACK DOOR-WITH

main76811-0E905iASU55..LIMD201803

SPORT PACKAGE(*PBD & HEADLAMP:*HAL)

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90467-09206iASU5#,GSU55201503-201705

main90467-C0033iASU5#201706-201803

76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER

main76822-0E040iGSU55201503-201803

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-0E090iGSU55201503-201803

76831BCOVER, BACK DOOR FINISH PANEL, RH

main76831-0E020iGSU55201503-201803

76832BCOVER, BACK DOOR FINISH PANEL, LH

main76832-0E020iGSU55201503-201803

8401

9010906361

main90109-06361

90178C0011

main90178-C0011

9043005003

main90430-05003

12 parts on this diagram · 1 diagram in section
