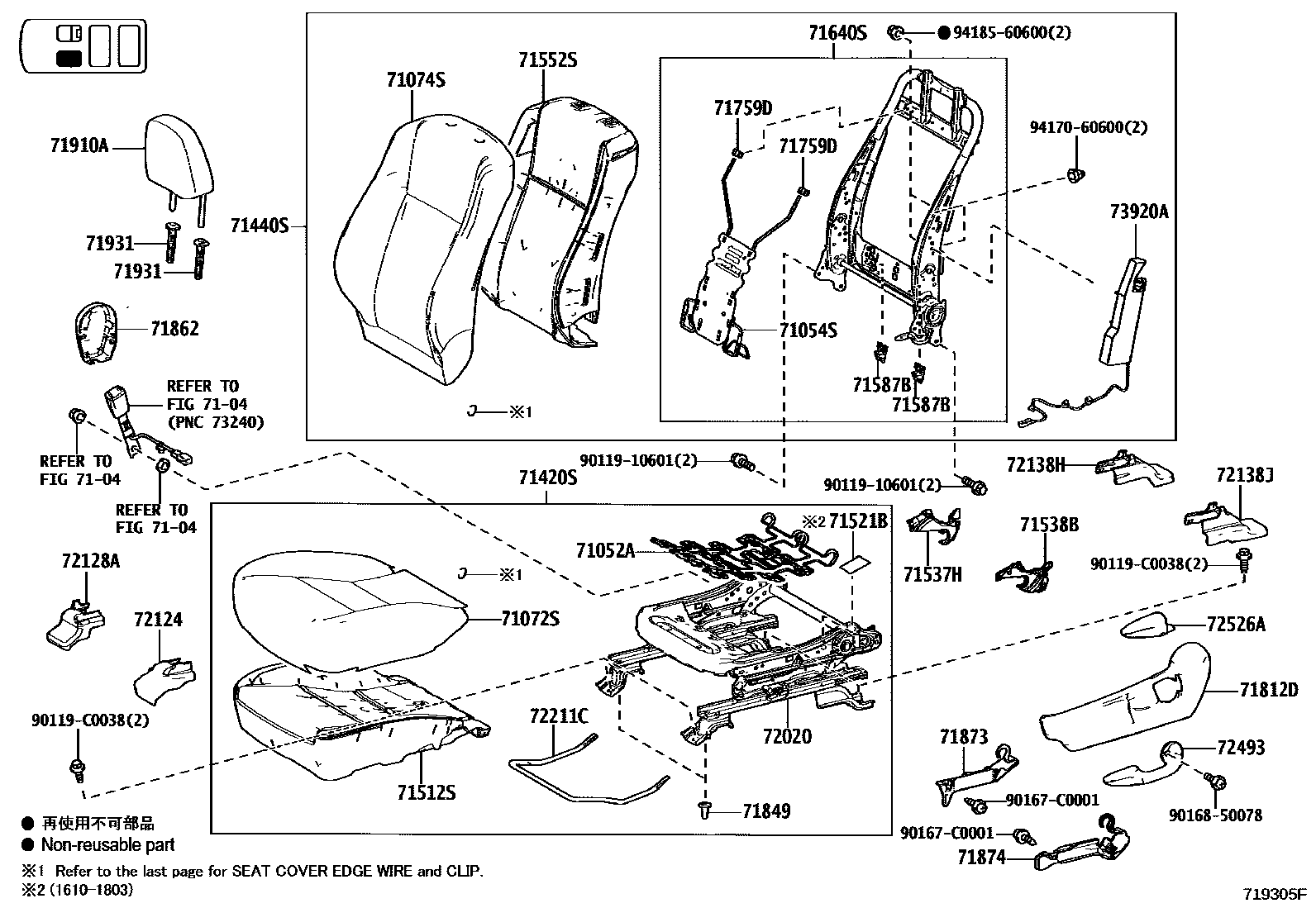

FRONT SEAT & SEAT TRACK

0001 1LH SEAT(MANUAL) 0002 1RH SEAT(MANUAL) 0003 1LH SEAT(POWER) 0004 1RH SEAT(POWER) 0005 1SEAT COVER EDGE WIRE & CLIP

7104

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-06050iASU55..LIMD201503-201803

main71051-0P030iASU5#..D,SPO201503-201803

71054SSPRING SUB-ASSY, FRONT SEATBACK, LH

main71053-06100iGSU55..D201503-201803

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0E350-A1iASU5#,GSU55..D201503-201909

FLAXEN,TRIM0#

main71072-0E350-A3iASU5#..D201909-202005

FLAXEN,TRIM0#

main71072-0E351-A3iASU5#..D202005

FLAXEN,TRIM0#

main71072-0E360-A1iASU5#,GSU55..SPO201503-201803

FLAXEN,TRIM0#

sub71072-0E363

main71072-0E360-C1iASU5#,GSU55..SPO201503-201803

BLACK,TRIM2#

sub71072-0E363

main71072-0E362-A1iASU5#..SPO201803-201805

FLANXEN,TRIM0#

sub71072-0E362

sub71072-0E364

main71072-0E362-A2iASU5#..SPO201805-201906

FLAXEN,TRIM0#

sub71072-0E362

sub71072-0E364

main71072-0E362-C1iASU5#..SPO201803-201805

BLACK,TRIM2#

sub71072-0E362

sub71072-0E364

main71072-0E362-C2iASU5#..SPO201805-201906

BLACK,TRIM2#

sub71072-0E362

sub71072-0E364

main71072-0E364-A2iASU5#..SPO201907-201909

FLAXEN,TRIM0#

main71072-0E364-A3iASU5#..SPO201909

FLAXEN,TRIM0#

main71072-0E364-C2iASU5#..SPO201907-201909

BLACK,TRIM2#

main71072-0E364-C3iASU5#..SPO201909

BLACK,TRIM20

main71072-0E364-E0iASU5#..SPO201909

OCHER,TRIM20

main71072-0E370-A1iASU5#,GSU55..LIMD201503-201803

FLAXEN,TRIM0#

sub71072-0E373

main71072-0E370-C1iASU5#,GSU55..LIMD201503-201803

BLACK,TRIM2#

sub71072-0E373

main71072-0E372-A1iASU55..LIMD201803-201805

FLAXEN,TRIM0#

sub71072-0E372

sub71072-0E374

main71072-0E372-A2iASU55..LIMD201805-201906

FLAXEN,TRIM0#

sub71072-0E372

sub71072-0E374

main71072-0E372-C1iASU55..LIMD201803-201805

BLACK,TRIM2#

sub71072-0E372

sub71072-0E374

main71072-0E372-C2iASU55..LIMD201805-201906

BLACK,TRIM2#

sub71072-0E372

sub71072-0E374

main71072-0E374-A2iASU55..LIMD201907-201909

FLAXEN,TRIM0#

main71072-0E374-A3iASU55..LIMD201909

FLAXEN,TRIM0#

main71072-0E374-C2iASU55..LIMD201907-201909

BLACK,TRIM2#

main71072-0E374-C3iASU55..LIMD201909-202009

BLACK,TRIM2#

main71072-0E374-C3iASU55..LIMD202009

BLACK,TRIM20

main71072-0E374-E0iASU55..LIMD202009

OCHER,TRIM20

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0E350-A0iASU5#,GSU55..D201503-201602

FLAXEN,TRIM0#

sub71074-0E351

main71074-0E351-A0iASU5#..D201603-201909

FLAXEN,TRIM0#

main71074-0E351-A2iASU5#..D201909-202005

FLAXEN,TRIM0#

main71074-0E352-A2iASU5#..D202005

FLAXEN,TRIM0#

main71074-0E360-A0iASU5#,GSU55..SPO201503-201602

FLAXEN,TRIM0#

sub71074-0E361

main71074-0E360-C1iASU5#,GSU55..SPO201503-201602

BLACK,TRIM2#

sub71074-0E361

main71074-0E361-A0iASU5#..SPO201603-201909

FLAXEN,TRIM0#

main71074-0E361-A1iASU5#..SPO201909-202106

FLAXEN,TRIM0#

main71074-0E361-A2iASU5#..SPO202106

FLAXEN,TRIM0#

main71074-0E361-C1iASU5#..SPO201603-201909

BLACK,TRIM2#

main71074-0E361-C2iASU5#..SPO201909-202106

BLACK,TRIM20

main71074-0E361-C3iASU5#..SPO202106

BLACK,TRIM20

main71074-0E361-E0iASU5#..SPO201909

OCHER,TRIM20

main71074-0E370-A0iASU5#,GSU55..LIMD201503-201602

FLAXEN,TRIM0#

sub71074-0E371

main71074-0E370-C1iASU5#,GSU55..LIMD201503-201602

BLACK,TRIM2#

sub71074-0E371

main71074-0E371-A0iASU55..LIMD201603-201909

FLAXEN,TRIM0#

main71074-0E371-A1iASU55..LIMD201909-202106

FLAXEN,TRIM0#

main71074-0E371-A2iASU55..LIMD202106

FLAXEN,TRIM0#

main71074-0E371-C1iASU55..LIMD201603-201909

BLACK,TRIM2#

main71074-0E371-C2iASU55..LIMD201909-202009

BLACK,TRIM2#

main71074-0E371-C2iASU55..LIMD202009-202106

BLACK,TRIM20

main71074-0E371-C3iASU55..LIMD202106

BLACK,TRIM20

main71074-0E371-E0iASU55..LIMD202009

OCHER,TRIM20

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-0E140-A1iASU5#..D201503-201909

FALXEN,TRIM0#

main71420-0E140-A3iASU5#..D201909-202005

FLAXEN,TRIM0#

main71420-0E141-A0iASU5#..D202005

FLAXEN,TRIM0#

main71420-0E150-A1iASU5#,GSU55..SPO201503-201803

FLAXEN,TRIM0#

main71420-0E150-C1iASU5#,GSU55..SPO201503-201803

BLACK,TRIM2#

main71420-0E152-A0iASU5#..SPO201803-201805

FLAXEN,TRIM0#

main71420-0E152-A1iASU5#..SPO201805-201909

FLAXEN,TRIM0#

main71420-0E152-A2iASU5#..SPO201909

FLAXEN,TRIM0#

main71420-0E152-C0iASU5#..SPO201803-201805

BLACK,TRIM2#

main71420-0E152-C1iASU5#..SPO201805-201909

BLACK,TRIM2#

main71420-0E152-C2iASU55..SPO201909

OCHER,TRIM20

main71420-0E152-C3iASU55..SPO201909

BLACK,TRIM20

main71420-0E152-C3iASU50..SPO201909-202005

BLACK,TRIM2#

main71420-0E160-A1iASU5#,GSU55..LIMD201503-201803

FLAXEN,TRIM0#

main71420-0E160-C1iASU5#,GSU55..LIMD201503-201803

BLACK,TRIM2#

main71420-0E162-A0iASU55..LIMD201803-201805

FLAXEN,TRIM0#

main71420-0E162-A1iASU55..LIMD201805-201909

FLAXEN,TRIM0#

main71420-0E162-A2iASU55..LIMD201909

FLAXEN,TRIM0#

main71420-0E162-C0iASU55..LIMD201803-201805

BLACK,TRIM2#

main71420-0E162-C1iASU55..LIMD201805-201909

BLACK,TRIM2#

main71420-0E162-C2iASU55..LIMD201909-202009

BLACK,TRIM2#

main71420-0E162-C2iASU55..LIMD202009

BLACK,TRIM20

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-0E120-A0iASU5#,GSU55..D201503-201602

FLAXEN,TRIM0#

sub71440-0E121

main71440-0E121-A0iASU5#..D201603-201909

FLAXEN,TRIM0#

main71440-0E121-A2iASU5#..D201909-202005

FLAXEN,TRIM0#

main71440-0E122-A0iASU5#..D202005

FLAXEN,TRIM0#

main71440-0E130-A0iASU5#,GSU55..SPO201503-201602

FLAXEN,TRIM0#

sub71440-0E131

main71440-0E130-C1iASU5#,GSU55..SPO201503-201602

BLACK,TRIM2#

sub71440-0E131

main71440-0E131-A0iASU5#..SPO201603-201909

FLAXEN,TRIM0#

main71440-0E131-A1iASU5#..SPO201909-202106

FLAXEN,TRIM0#

main71440-0E131-A2iASU5#..SPO202106

FLAXEN,TRIM0#

main71440-0E131-C0iASU5#,GSU55..SPO201603-201909

BLACK,TRIM2#

main71440-0E131-C1iASU55..SPO201909

OCHER,TRIM20

main71440-0E131-C2iASU55..SPO201909-202106

BLACK,TRIM20

main71440-0E131-C2iASU50..SPO201909-202005

BLACK,TRIM2#

main71440-0E131-C3iASU5#..SPO202106

BLACK,TRIM20

main71440-0E132-A0iASU5#,GSU55..SPO201703-201803

FLAXEN,TRIM0#

main71440-0E132-C0iASU5#,GSU55..SPO201703-201803

BLACK,TRIM2#

main71440-0E140-A0iASU5#,GSU55..LIMD201503-201602

FLAXEN,TRIM0#

sub71440-0E141

main71440-0E140-C1iASU5#,GSU55..LIMD201503-201602

BLACK,TRIM2#

sub71440-0E141

main71440-0E141-A0iASU5#,GSU55..LIMD201603-201909

FLAXEN,TRIM0#

main71440-0E141-A1iASU55..LIMD201909-202106

FLAXEN,TRIM0#

main71440-0E141-A2iASU55..LIMD202106

FLAXEN,TRIM0#

main71440-0E141-C0iASU5#,GSU55..LIMD201603-201909

BLACK,TRIM2#

main71440-0E141-C1iASU55..LIMD201909-202009

BLACK,TRIM2#

main71440-0E141-C1iASU55..LIMD202009-202106

BLACK,TRIM20

main71440-0E141-C3iASU55..LIMD202106

BLACK,TRIM20

main71440-0E142-A0iASU5#,GSU55..LIMD201703-201803

FLAXEN,TRIM0#

main71440-0E142-C0iASU5#,GSU55..LIMD201703-201803

BLACK,TRIM2#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-0E050iASU5#..LIMD201503-201803

main71502-0E060iGSU55..D201503-201803

main71502-0E070iGSU55..SPO201503-201803

71521BPAD,FRONT SEAT CUSHION SILENCER

main71521-0E020iASU5#..LIMD,SPO201610-201803

71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

main71537-02250-A1iASU5#201503-201803

FLAXEN,TRIM0#

main71537-02250-C0iASU55;ASU50..SPO201503-201803

BLACK,TRIM2#

71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

main71538-02180-A1iASU5#,GSU55201503-201803

FLAXEN,TRIM0#

main71538-02180-C0iASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM2#

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71506-0E020iASU5#..LIMD201503-201803

main71552-0E100iGSU55..D,SPO201503-201803

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-52030iGSU55201503-201803

71587BPROTECTOR, FRONT SEATBACK EDGE

main71587-52030iASU5#201503-201803

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-0E070iASU5#..D201503-201803

main71640-0E080iASU5#..SPO201503-201803

main71640-0E090iASU55..LIMD201503-201803

71759DHOOK, FRONT SEATBACK, NO.2

main71759-47011iASU5#201503-201803

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-0E190-A0iASU5#,GSU55..D201503-201803

FLAXEN,TRIM0#

main71812-0E190-C0iASU55..D201803

BLACK,TRIM2#

main71812-0E200-A0iASU5#,GSU55..LIMD,SPO201503-201803

FLAXEN,TRIM0#

main71812-0E200-C0iASU5#..LIMD,SPO201503-201803

BLACK,TRIM2#

71849CAP, SEAT ADJUSTER COVER, LH

main71848-0E100iASU5#201503-201803

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-0E090-A0iASU5#,GSU55201503-201803

FLAXEN,TRIM0#

main71862-0E090-C0iASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-06440iGSU55..D201503-201803

main71873-06450iGSU55..LIMD,SPO201503-201803

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06430iASU5#..LIMD,SPO201503-201803

main71874-06520iASU5#..D201503-201803

71910AHEADREST ASSY, FRONT SEAT

main71910-0E280-A0iASU5#,GSU55201503-201603

FLAXEN,TRIM0#

main71910-0E280-C1iASU5#,GSU55..LIMD,SPO201503-201603

BLACK,TRIM2#

main71910-0E281-A0iASU5#,GSU55201603-201803

FLAXEN,TRIM0#

main71910-0E281-A0iASU5#..D201803-201909

FLAXEN,TRIM00

main71910-0E281-A1iASU5#..LIMD,SPO201803-201909

FLAXEN,TRIM0#

main71910-0E281-A1iASU5#..LIMD,SPO201803-201909

SPORT PACKAGE(LEATHER SEAT),FLAXEN,TRIM00

main71910-0E281-A2iASU55..D201909-202005

FLAXEN,TRIM0#

main71910-0E281-A2iASU55..D201909-202005

FLAXEN,TRIM00

main71910-0E281-A3iASU55..D201909-202005

SPORT PACKAGE(LEATHER SEAT),FLAXEN,TRIM00

main71910-0E281-A3iASU55..D201909-202007

FLAXEN,TRIM0#

main71910-0E281-C1iASU5#,GSU55..LIMD,SPO201603-201803

BLACK,TRIM2#

main71910-0E281-C2iASU55;ASU50..SPO201803-201909

BLACK,TRIM2#

main71910-0E281-C3iASU55..SPO201909-202005

BLACK,TRIM20

main71910-0E281-C3iASU55..SPO201909-202007

BLACK,TRIM2#

main71910-0E281-E0iASU55..SPO201909-202005

OCHER,TRIM20

main71910-0E282-A2iASU50..D202005

FLAXEN,TRIM0#

main71910-0E282-A3iASU55..D202005

FLAXEN,TRIM0#

main71910-0E282-A3iASU55..D202005

SPORT PACKAGE(LEATHER SEAT),FLAXEN,TRIM00

main71910-0E282-A3iASU5#..SPO202005

FLAXEN,TRIM00

main71910-0E282-C3iASU55..LIMD202005

BLACK,TRIM20

main71910-0E282-C3iASU5#..SPO202005-202009

BLACK,TRIM2#

main71910-0E282-E0iASU5#..SPO202005

OCHER,TRIM20

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-A7iASU5#,GSU55201503-201803

W(LOCK),FLAXEN,TRIM0#

sub71930-47020

main71930-47020-C0iASU5#,GSU55..LIMD,SPO201503-201710

W(LOCK),BLACK,TRIM2#

sub71930-47020

main71930-47020-C4iASU5#..LIMD,SPO201710-201803

W(LOCK),BLACK,TRIM2#

sub71930-47020

main71931-47020-A7iASU5#,GSU55201503-201803

W/O(LOCK),FLAXEN,TRIM0#

sub71931-47020

main71931-47020-C0iASU5#,GSU55..LIMD,SPO201503-201710

W/O(LOCK),BLACK,TRIM2#

sub71931-47020

main71931-47020-C4iASU5#..LIMD,SPO201710-201803

W/O(LOCK),BLACK,TRIM2#

sub71931-47020

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-0E120iASU5#..D201503-201803

main72020-0E130iASU5#..SPO201503-201803

main72020-0E140iASU5#..LIMD201503-201803

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72124-0E090-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#

main72124-0E090-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#,2#

72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72128-0E100-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#

main72128-0E100-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#,2#

72138HCOVER, FRONT SEAT TRACK, LH REAR INNER

main72158-0E100-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#

main72158-0E100-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#,2#

72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER

main72138-0E110-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#

main72138-0E110-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#,2#

72211HANDLE, SEAT TRACK ADJUSTING

main72211-06120iGSU55..D201503-201803

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-06120iGSU55..D201503-201803

72493HANDLE, VERTICAL ADJUSTING, NO.2

main72493-0E010-A0iASU5#,GSU55..D201503-201803

FLAXEN,TRIM0#

main72493-0E010-C0iASU55..D201803

BLACK,TRIM2#

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-0P020-A3iASU5#,GSU55..D201503-201803

FLAXEN,TRIM0#

main72526-0P020-C0iASU55..D201803

BLACK,TRIM2#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-0E070iGSU55201503-201803

9011910601

main90119-10601

90119C0038

main90119-C0038

90167C0001

main90167-C0001

9016850078

main90168-50078

9417060600

main94170-60600

9418560600

main94185-60600

39 parts on this diagram · 5 diagrams in section
