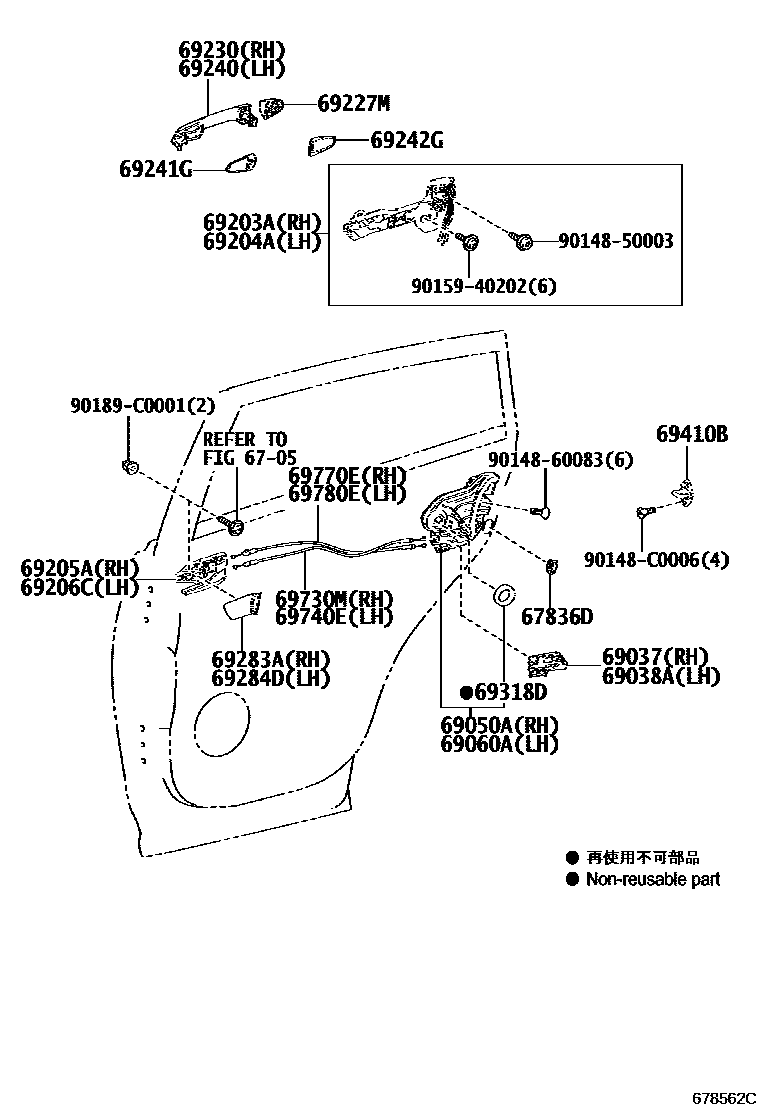

REAR DOOR LOCK & HANDLE
6705
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM0#
BLACK,TRIM0#,2#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM0#,2#
BLACK,TRIM0#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D4
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
BLACK MC.,209
DK.RED M.M.,3T0
DARK SHERRY M.M.,4W4
STEEL BLONDE ME.,4X1
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D4
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
BLACK MC.,209
DK.RED M.M.,3T0
DARK SHERRY M.M.,4W4
STEEL BLONDE ME.,4X1
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D4
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
BLACK MC.,209
DK.RED M.M.,3T0
DARK SHERRY M.M.,4W4
STEEL BLONDE ME.,4X1
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM0#
BLACK,TRIM0#,2#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM0#
BLACK,TRIM0#,2#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
main90148-50003
9014860083
main90148-60083
90148C0006
main90148-C0006
9015940202
main90159-40202
90189C0001
main90189-C0001
28 parts on this diagram · 1 diagram in section
