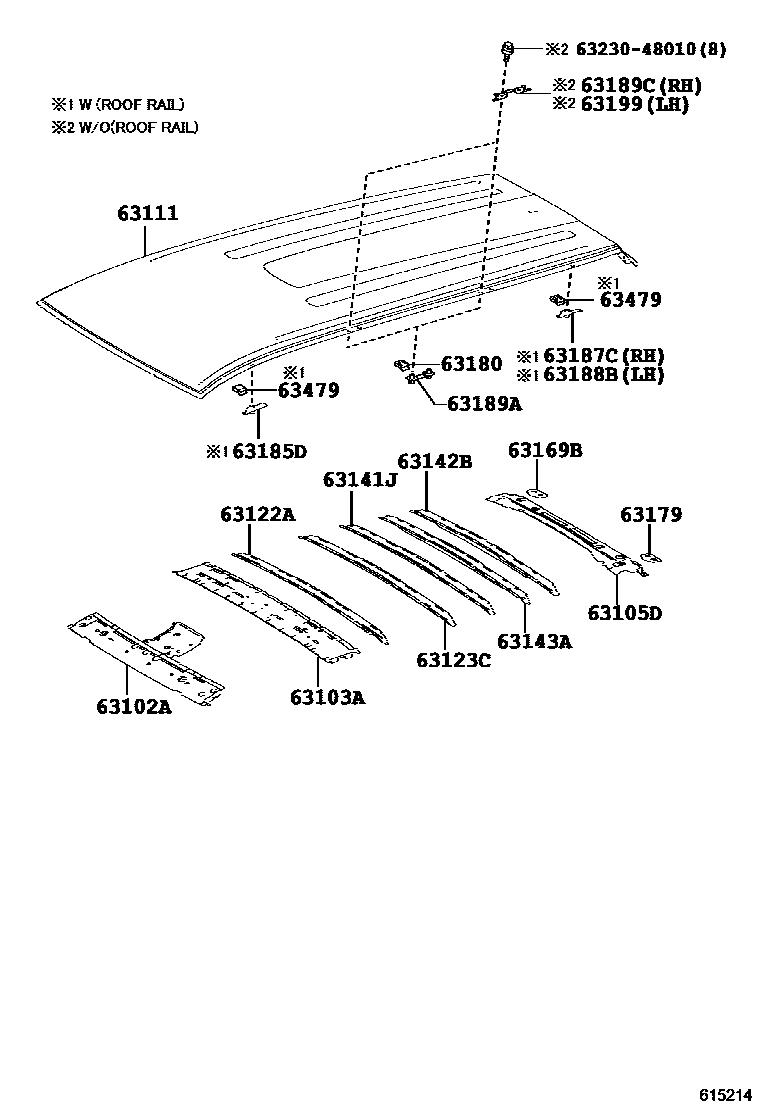

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(NORMAL) 0002 1ROOF PANEL(PANORAMIC ROOF) 0003 1REMOVABLE ROOF HOUSING(PANORA0004 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0E908iASU5#..LIMD,SPO201503-201803

main63102-0E908iASU5#..LIMD,SPO201803

SPORT PACKAGE(LEATHER SEAT)

main63102-0E909iGSU55..D201503-201803

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-0E050iGSU55..LIMD,SPO201503-201803

main63103-0E050iASU5#..LIMD,SPO201803

SPORT PACKAGE(LEATHER SEAT)

main63103-0E060iGSU55..D201503-201803

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-0E060iGSU55201503-201803

63111PANEL, ROOF

main63111-0E170iASU5#..LIMD,SPO201803

SPORT PACKAGE(LEATHER SEAT)

main63111-0E170iGSU55..LIMD,SPO201503-201803

main63111-0E180iASU50..D201503-201803

ROOF RAIL-WITH(SILVER PAINTED)

main63111-0E220iASU5#..D201503-201803

63122AREINFORCEMENT, ROOF PANEL, FRONT

main63143-0E080iGSU55..D201503-201803

63123CREINFORCEMENT, ROOF PANEL

main63123-0E060iGSU55..D201503-201803

63141JREINFORCEMENT, ROOF PANEL

main63177-0E020iASU5#..D201503-201803

63142BREINFORCEMENT, ROOF PANEL, REAR

main63144-0E060iASU5#201503-201803

63143AREINFORCEMENT, ROOF PANEL

main63178-0E040iGSU55..D201503-201803

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-0E050iGSU55201503-201803

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-0E050iGSU55201503-201803

63180CLIP(BRACKET, ROOF RACK)

main63479-48010iGSU55..D201503-201803

REAR

main63479-48020iASU5#..D201503-201803

FRONT

63185DBRACKET, ROOF RACK, FRONT

main63187-48030iGSU55..LIMD,SPO201503-201803

RH

main63187-48030iASU5#..LIMD,SPO201803

SPORT PACKAGE(LEATHER SEAT),RH

main63187-48060iASU5#..D201503-201803

ROOF RAIL-WITH(SILVER PAINTED)

main63188-48010iASU55..D201803

SPORT PACKAGE(LEATHER SEAT),LH

main63188-48010iGSU55..LIMD,SPO201503-201803

LH

63187CBRACKET, ROOF RACK, NO.1 REAR RH

main63187-48050iASU50..D201503-201803

ROOF RAIL-WITH(SILVER PAINTED)

main63187-48050iASU5#..LIMD,SPO201803

SPORT PACKAGE(LEATHER SEAT)

63188BBRACKET, ROOF RACK, NO.1 REAR LH

main63187-48050iGSU55..LIMD,SPO201503-201803

ROOF RAIL-WITH(SILVER PAINTED)

main63187-48050iASU5#..LIMD,SPO201803

SPORT PACKAGE(LEATHER SEAT)

63189ABRACKET, ROOF RACK, CENTER

main63187-0E100iASU5#,GSU55..D201503-201803

FRONT

main63187-0E110iASU5#..D201503-201803

REAR

main63187-48040iASU5#,GSU55..LIMD,SPO201503-201803

main63187-48040iASU5#..LIMD,SPO201803

SPORT PACKAGE(LEATHER SEAT)

63189CBRACKET, ROOF RACK, CENTER RH

main63185-48010iGSU55..D201503-201803

63199BRACKET, ROOF RACK, CENTER LH

main63185-48010iGSU55..D201503-201803

63479RETAINER, ROOF INNER RACK

main63479-48010iGSU55..D201503-201803

ROOF RAIL-WITH(SILVER PAINTED),REAR

main63479-48010iASU50..D201803

SPORT PACKAGE(LEATHER SEAT)

main63479-48020iASU5#..D201503-201803

ROOF RAIL-WITH(SILVER PAINTED),FRONT

6323048010MOULDING ASSY, ROOF WINDOW, SIDE

main63230-48010

20 parts on this diagram · 4 diagrams in section
