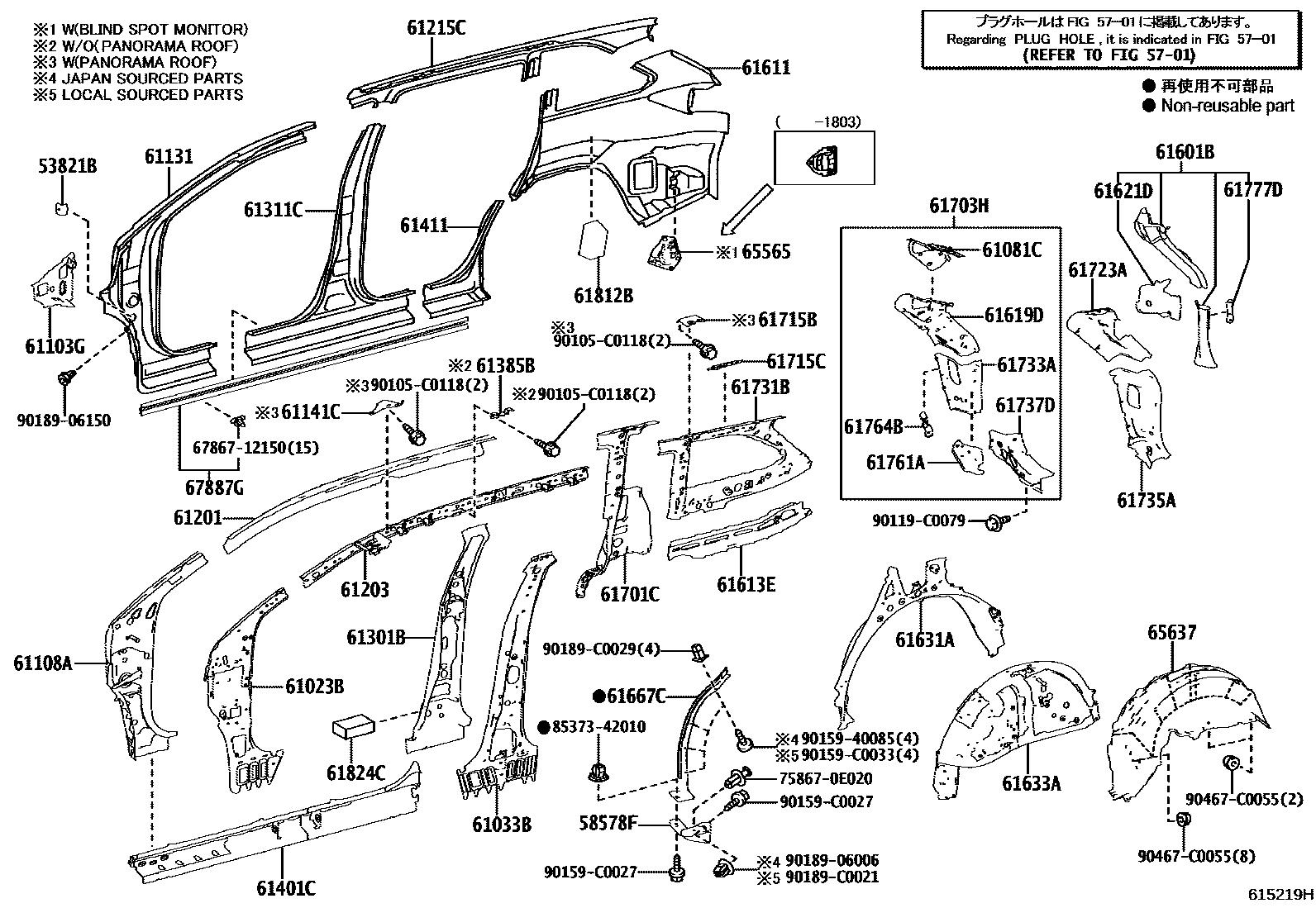

SIDE MEMBER

0001 1RH 0002 1LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-0E030iGSU55201503-201803

5701

58578FPAD, REAR WHEEL HOUSE, RH

main58578-0E040iGSU55201503-201803

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-0E060iASU5#,GSU55201503-201803

61033BPILLAR SUB-ASSY, NO.2 INNER, RH

main61033-0E040iGSU55201503-201803

61081CREINFORCE, ROOF SIDE, INNER RH

main61081-0E040iGSU55201503-201803

61103GGUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61103-0E050iGSU55201503-201803

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-0E905iGSU55201503-201803

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-0E070iGSU55201503-201803

61141CEXTENSION, FRONT PILLAR, UPPER INNER RH

main61141-0E040iGSU55..LIMD,SPO201503-201803

main61141-0E040iASU5#..LIMD,SPO201803

SPORT PACKAGE(LEATHER SEAT)

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-0E050iGSU55201503-201803

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-0E050iGSU55201503-201803

61215CRAIL, ROOF SIDE, OUTER REAR RH

main61215-0E040iGSU55201503-201803

61301BPILLAR, CENTER BODY, OUTER RH

main61301-0E904iGSU55201503-201803

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-0E060iGSU55201503-201803

61385BEXTENSION, CENTER BODY PILLAR, INNER RH

main61385-0E050iGSU55..D201503-201803

61401CPANEL SUB-ASSY, ROCKER, OUTER RH

main61401-0E904iGSU55201503-201803

61411PANEL, ROCKER, OUTER RH

main61411-0E020iGSU55201503-201803

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-0E040iGSU55201503-201803

61611PANEL, QUARTER, RH

main61611-0E120iGSU55201503-201803

61613EPANEL, QUARTER, INNER RH

main61613-0E060iGSU55201503-201803

61619DREINFORCEMENT, QUARTER PANEL, RH

main61619-0E040iGSU55201503-201803

61621DTROUGH, BACK DOOR OPENING, RH

main61621-0E060iGSU55201503-201803

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61605-0E030iGSU55201503-201803

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-0E060iGSU55201503-201803

61667CSEAL, QAURTER PANEL, NO.1

main61667-0E060iGSU55201503-201803

61701CPANEL SUB-ASSY, ROOF SIDE, OUTER RH

main61701-0E901iGSU55201503-201803

61703HREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH

main61703-0E040iGSU55201503-201803

61715BEXTENSION, ROOF SIDE, INNER FRONT RH

main61715-0E070iGSU55..LIMD,SPO201503-201803

main61715-0E070iASU5#..LIMD,SPO201803

SPORT PACKAGE(LEATHER SEAT)

61715CBRACKET, ROOF SIDE, RH

main61715-0E080iGSU55201503-201803

61723AREINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1

main61723-0E060iGSU55201503-201803

61731BPANEL, ROOF SIDE, INNER RH

main61731-0E060iGSU55201503-201803

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-0E060iGSU55201503-201803

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-0E060iGSU55201503-201803

61737DREINFORCEMENT, ROOF SIDE, INNER RH

main61737-0E020iGSU55201503-201803

61761AREINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH

main61761-0E040iGSU55201503-201803

61764BREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH

main61764-0E050iGSU55201503-201803

61777DRETAINER, BACK DOOR SIDE STOPPER, RH

main61777-0E020iGSU55201503-201803

61812BPLATE, NOISE CONTROL, RH

main61822-0E010iGSU55201503-201803

61824CPAD, NOISE SHUTTER, NO.1

main61826-0E030iGSU55201503-201803

65565PATCH, SIDE PANEL REAR END, RH

main65565-0E030iGSU55..LIMD201503-201803

main65565-0E070iASU55..LIMD201803

65637LINER, REAR WHEEL HOUSE, RH

main65637-0E050iGSU55201503-201803

67887GWEATHERSTRIP, ROCKER OUTER, RH

main67863-0E040iGSU55201503-201803

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150

758670E020MOULDING, FRONT PANEL

main75867-0E020

8537342010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-42010

90105C0118

main90105-C0118

90119C0079

main90119-C0079

9015940085

main90159-40085

90159C0027

main90159-C0027

90159C0033

main90159-C0033

9018906006

main90189-06006

9018906150

main90189-06150

90189C0021

main90189-C0021

90189C0029

main90189-C0029

90467C0055

main90467-C0055

56 parts on this diagram · 2 diagrams in section
