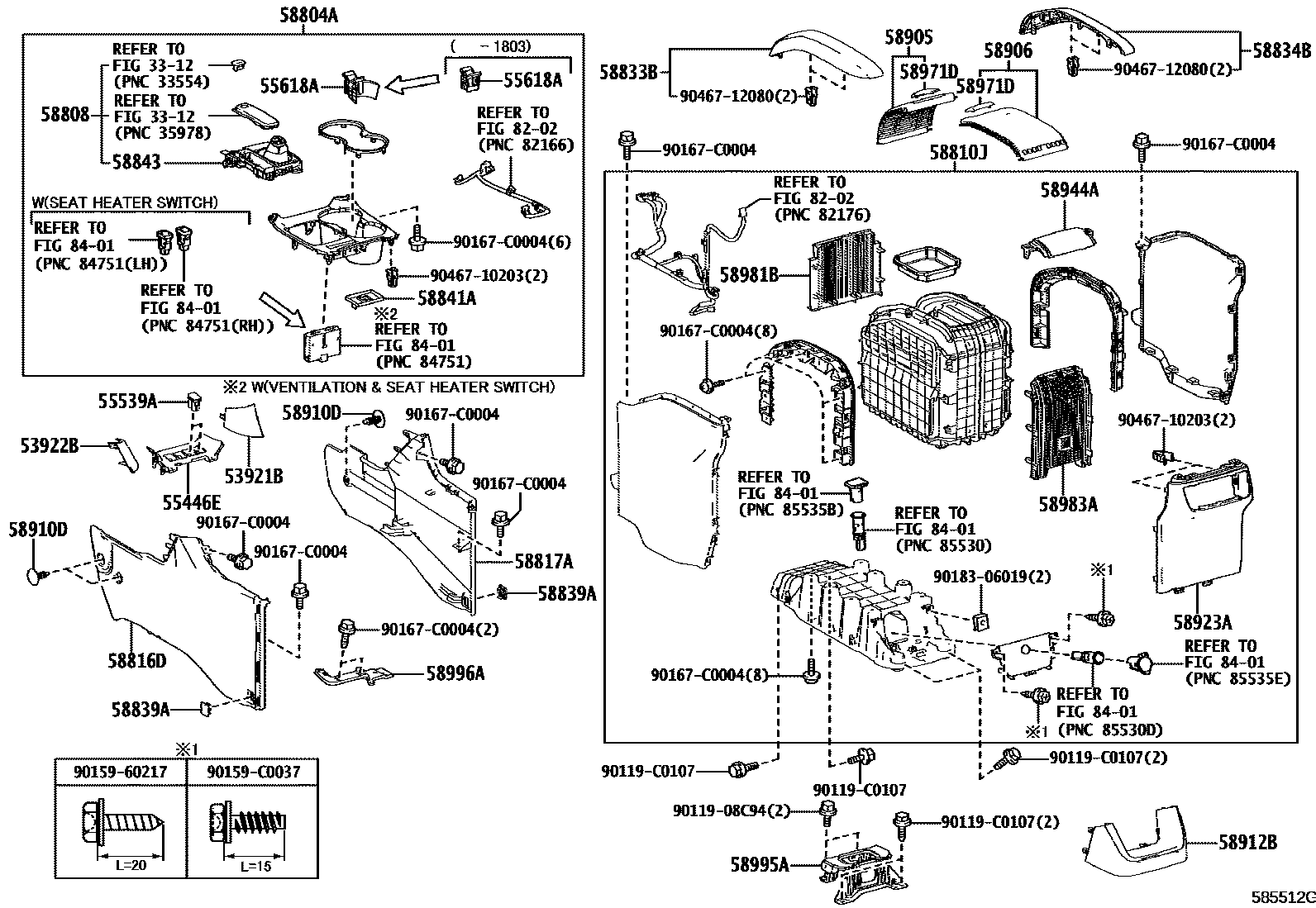

CONSOLE BOX & BRACKET

0001 1 0002 1

3312

53921BGARNISH, FRONT PANEL, RH

main53921-0E030-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#

main53921-0E030-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#,2#

53922BGARNISH, FRONT PANEL, LH

main53922-0E030-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#

main53922-0E030-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#,2#

55446EBASE, SWITCH HOLE, NO.1

main55447-0E050-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#

main55447-0E050-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#,2#

55539ACOVER, SPARE SWITCH HOLE

main55539-0E060iASU50201503-201803

55618AHOLDER, CONSOLE BOX CUP

main55618-0E130-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#,2#

main55618-0E130-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#

main55618-0E220-C0iASU50..D201803

BLACK,TRIM0#,2#

main55618-0E220-C0iASU50..D201803

BLACK,TRIM0#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-0E240-C0iGSU55..D201503-201710

BLACK,TRIM0#

main58804-0E250-C0iGSU55..SPO201503-201603

BLACK,TRIM0#,2#

sub58804-0E251

main58804-0E251-C0iGSU55..SPO201604-201710

BLACK,TRIM0#,2#

main58804-0E260-C0iGSU55..LIMD201503-201710

BLACK,TRIM0#,2#

main58804-0E270-C0iASU5#..D201503-201803

BLACK,TRIM0#

main58804-0E280-C0iASU5#..SPO201503-201603

BLACK,TRIM0#,2#

sub58804-0E281

main58804-0E281-C0iASU5#..SPO201604-201803

BLACK,TRIM0#,2#

main58804-0E290-C0iASU5#..LIMD201503-201803

BLACK,TRIM0#,2#

main58804-0E490-C0iASU50..D201803

BLACK,TRIM0#,2#

main58804-0E490-C0iASU50..D201803

BLACK,TRIM0#

main58804-0E500-C0iASU5#..SPO201803

BLACK,TRIM0#,2#

main58804-0E510-C0iASU55..LIMD201803

BLACK,TRIM0#,2#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-0E040iGSU55201503-201710

main58808-0E050iASU5#201503-201803

58810JBOX ASSY, CONSOLE

main58810-0E900-A0iASU5#201803-201908

FLAXEN,TRIM0#

sub58810-0E902

main58810-0E900-C0iASU55;ASU50..SPO201803-201908

BLACK,TRIM2#

sub58810-0E902

main58810-0E901-A0iASU5#,GSU55201503-201803

FLAXEN,TRIM0#

main58810-0E901-C0iASU5#,GSU55201503-201803

BLACK,TRIM2#

main58810-0E902-A0iASU5#201908

FLAXEN,TRIM00

sub58810-0E905

main58810-0E902-C0iASU50..D201908

BLACK,TRIM00

sub58810-0E905

main58810-0E902-C0iASU50..D201908

BLACK,TRIM00,2#

sub58810-0E905

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-0E070-A0iASU5#,GSU55201503-201512

FLAXEN,TRIM0#

sub58816-0E071

main58816-0E070-C0iASU5#,GSU55..LIMD,SPO201503-201512

BLACK,TRIM2#

sub58816-0E071

main58816-0E071-A0iASU5#201601-201803

FLAXEN,TRIM0#

main58816-0E071-C0iASU55;ASU50..SPO201601-201803

BLACK,TRIM2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-0E070-A0iASU5#,GSU55201503-201512

FLAXEN,TRIM0#

sub58817-0E071

main58817-0E070-C0iASU5#,GSU55..LIMD,SPO201503-201512

BLACK,TRIM2#

sub58817-0E071

main58817-0E071-A0iASU5#201601-201803

FLAXEN,TRIM0#

main58817-0E071-C0iASU5#,GSU55..LIMD,SPO201601-201803

BLACK,TRIM2#

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-0E120-A0iASU5#,GSU55201503-201803

FLAXEN,TRIM0#

main58833-0E120-C0iASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM2#

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-0E120-A0iASU5#,GSU55201503-201803

FLAXEN,TRIM0#

main58834-0E120-C0iASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM2#

58839ACOVER, CONSOLE BOX HOLE

main58839-0E090-A0iASU5#201503-201803

FLAXEN,TRIM0#

main58839-0E090-C0iASU55;ASU50..SPO201503-201803

BLACK,TRIM2#

58841ACOVER, SHIFTING HOLE

main58841-0E030iGSU55201503-201803

58843BEZEL, SHIFTING HOLE

main58843-0E050iGSU55201503-201710

main58843-0E060iASU5#201503-201803

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-0E090-A0iASU5#,GSU55201503-201803

FLAXEN,TRIM0#

main58905-0E090-C0iASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM2#

58906DOOR SUB-ASSY, UPPER CONSOLE

main58906-0E020-A0iASU5#,GSU55201503-201803

FLAXEN,TRIM0#

main58906-0E020-C0iASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM2#

58910DCLIP(FOR CONSOLE BOX)

main90467-06020-A8iASU5#,GSU55201503-201803

FLAXEN,TRIM0#

sub90467-06020

main90467-06020-C0iASU5#,GSU55..D201503-201803

BLACK

sub90467-06020

main90467-06020-C0iASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM2#

sub90467-06020

58912BBOX, REAR CONSOLE, LOWER

main58912-0E090-A0iASU5#201503-201803

FLAXEN,TRIM0#

main58912-0E090-C0iASU55;ASU50..SPO201503-201803

BLACK,TRIM2#

58923APANEL, CONSOLE REAR END

main58923-0E170-A0iASU5#201503-201803

FLAXEN,TRIM0#

main58923-0E170-C0iASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM2#

58944ACOVER, CONSOLE, REAR

main58944-0E020-A0iASU5#201503-201803

FLAXEN,TRIM0#

main58944-0E020-C0iASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM2#

58971DLEVER, CONSOLE COMPARTMENT DOOR LOCK

main58971-0E050-A0iASU5#201503-201803

FLAXEN,TRIM0#

main58971-0E050-C0iASU55;ASU50..SPO201503-201803

BLACK,TRIM2#

58981BRETAINER, CONSOLE MOUNTING, NO.1

main58981-0E040-C0iASU55;ASU50..SPO201503-201803

BLACK,TRIM0#

main58981-0E040-C0iASU55;ASU50..SPO201503-201803

BLACK,TRIM0#,2#

58983ARETAINER, CONSOLE MOUNTING

main58982-0E030iASU5#,GSU55201503-201803

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-0E060iGSU55201503-201803

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-0E080iGSU55201503-201803

8202

8401

9011908C94

main90119-08C94

90119C0107

main90119-C0107

9015960217

main90159-60217

90159C0037

main90159-C0037

90167C0004

main90167-C0004

9018306019

main90183-06019

9046710203

main90467-10203

9046712080

main90467-12080

37 parts on this diagram · 2 diagrams in section
