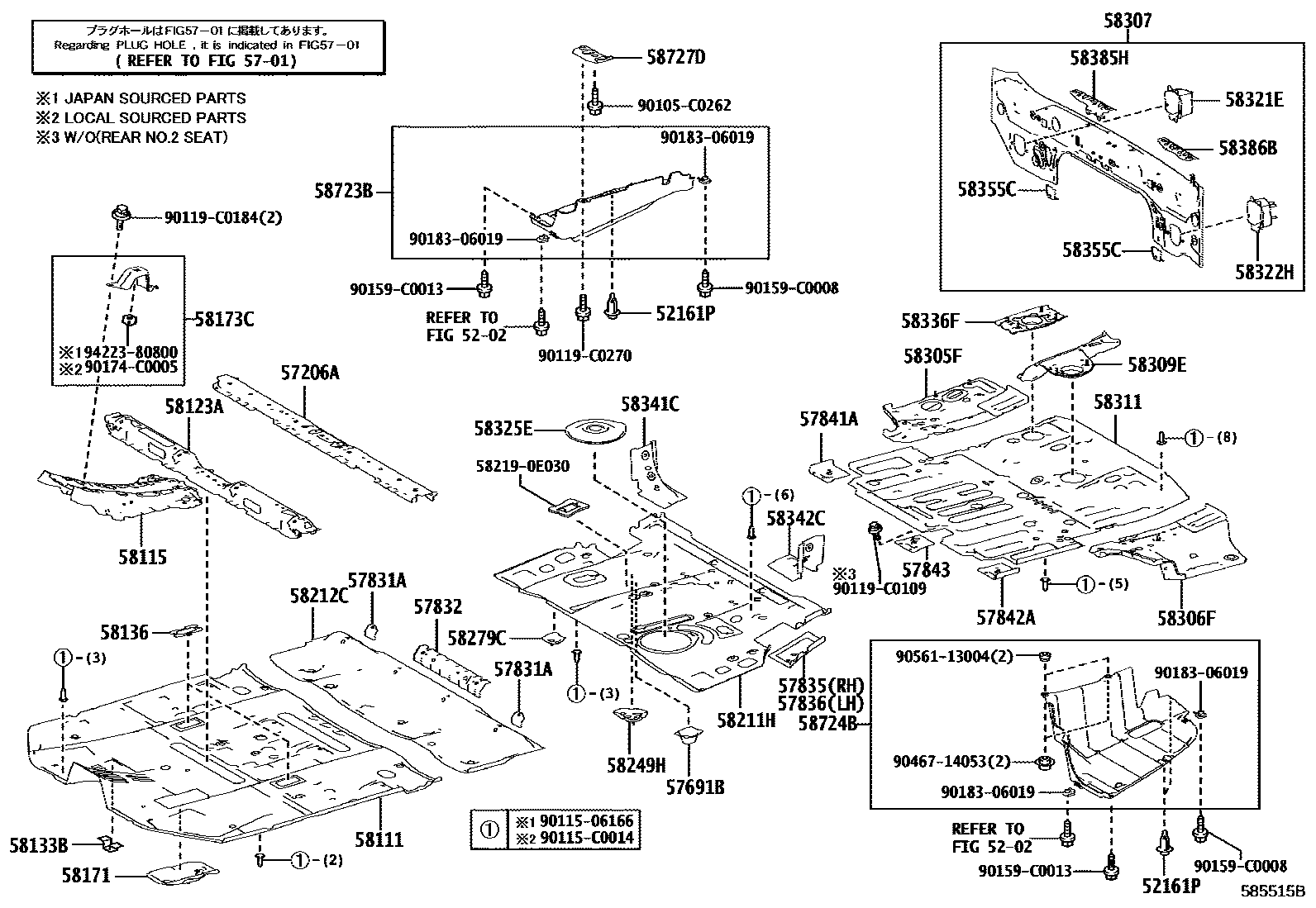

FLOOR PAN & LOWER BACK PANEL
5202
52161PPIECE, REAR BUMPER
(L)
5701
57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
57691BBRACKET, FUEL TANK MOUNTING, FRONT CENTER
57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
57841AREINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH
57842AREINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH
57843REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.5
58111PAN, FRONT FLOOR
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58173CBRACKET, WIRING HARNESS PROTECTOR
58211HPAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58249HBRACKET, CENTER FLOOR BOARD SUPPORT
58279CPROTECTOR, FUEL TANK, UPPER NO.2
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58309EPLATE SUB-ASSY, REAR FLOOR
58311PAN, REAR FLOOR
58321EPLATE, REAR BUMPER ARM SUPPORT, RH
58322HPLATE, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336FREINFORCEMENT, REAR FLOOR PAN, RH
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58355CBRACKET, REAR BUMPER ARM
58385HBRACKET, REAR BUMPER COVER, NO.1
58386BBRACKET, REAR BUMPER COVER, NO.2
58723BPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1
58724BPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2
58727DPLATE, ENGINE SERVICE COVER, NO.1
582190E030PROTECTOR, FRONT FLOOR
main58219-0E030
90105C0262
main90105-C0262
9011506166
main90115-06166
90115C0014
main90115-C0014
90119C0109
main90119-C0109
90119C0184
main90119-C0184
90119C0270
main90119-C0270
90159C0008
main90159-C0008
90159C0013
main90159-C0013
90174C0005
main90174-C0005
9018306019
main90183-06019
9046714053
main90467-14053
9056113004
main90561-13004
9422380800
main94223-80800
54 parts on this diagram · 2 diagrams in section
