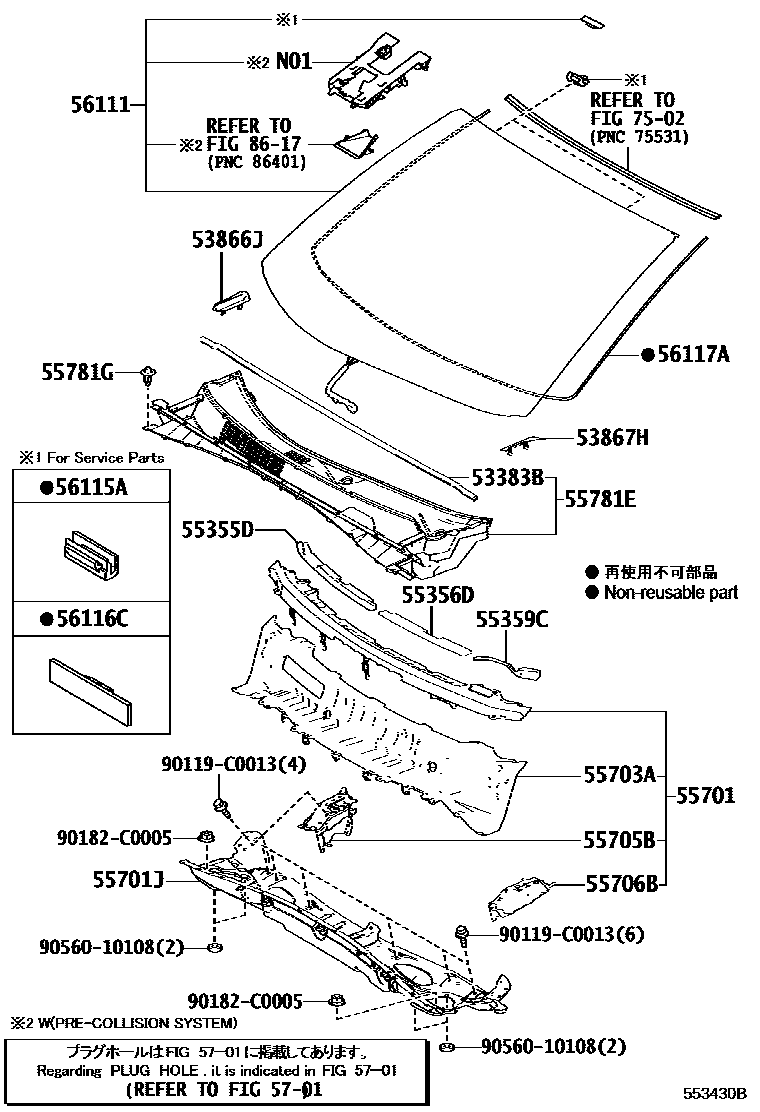

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-0E060iGSU55201503-201803

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0E070iGSU55201503-201803

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0E070iGSU55201503-201803

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55359-0E110iGSU55201503-201803

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55359-0E150iGSU55201503-201803

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-0E180iGSU55201503-201803

55701PANEL SUB-ASSY, COWL

main55700-0E070iGSU55201503-201803

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-0E090iGSU55201503-201803

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-0E070iGSU55201503-201803

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0E060iGSU55201503-201803

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0E060iGSU55201503-201803

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0E090iASU5#201503-201803

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08180iASU5#,GSU55201503-201607

main90467-C0010iGSU55201608-201803

56111GLASS, WINDSHIELD

main56101-0E906iASU5#..LIMD201503-201803

main56101-0E907iASU5#..D201503-201803

main56101-0E908iASU5#,GSU55..LIMD201703-201708

sub56101-0E906

main56101-0E909iASU5#,GSU55..D,SPO201703-201708

sub56101-0E907

main56101-0E910iASU55..LIMD201803

main56101-0E911iASU5#..SPO201803

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iGSU55201503-201803

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iGSU55201503-201803

56117ADAM, WINDOW GLASS ADHESIVE

main56117-0E070iGSU55201503-201803

L=3025

5701

7502

8617

90119C0013

main90119-C0013

90182C0005

main90182-C0005

9056010108

main90560-10108

23 parts on this diagram · 1 diagram in section
