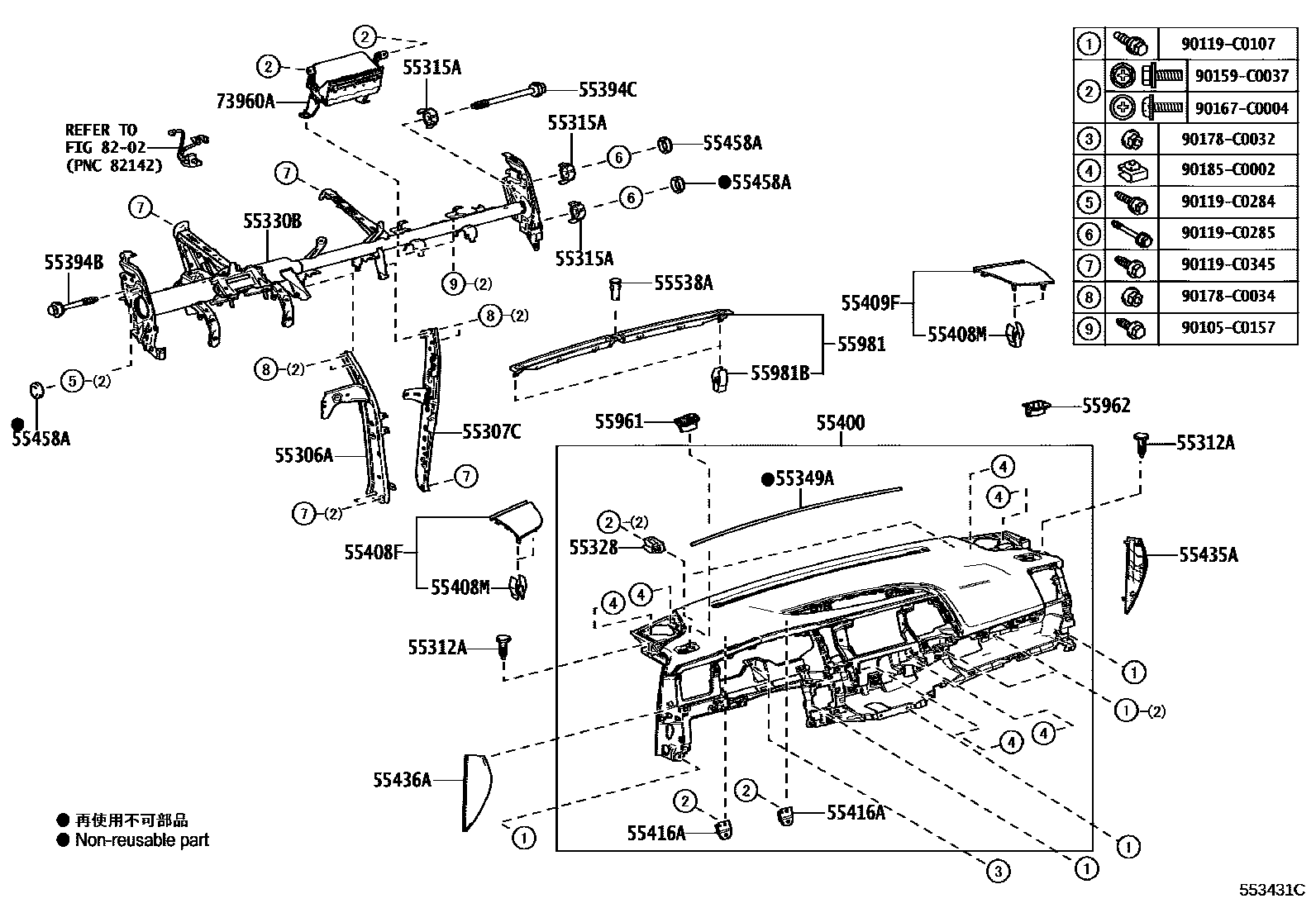

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1DRIVER SIDE 0004 1CENTER 0005 1CENTER 0006 1PASSENGER SIDE 0007 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0E080iASU5#201503-201803

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0E080iGSU55201503-201803

55312ACLIP, INSTRUMENT PANEL

main52161-02040iASU5#201608-201803

(L)

main52161-16010iASU5#201608-201803

(J)

sub52161-0K040

main52161-16010iASU5#,GSU55201503-201608

sub52161-0K040

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-53040iGSU55201503-201803

55328PIN, INSTRUMENT PANEL, NO.1

main55328-0E100iASU5#201503-201803

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0E080iGSU55201503-201803

main55330-0E120iASU5#201803

55349ACUSHION, INSTRUMENT PANEL

main55349-0E030iASU5#201503-201803

55394BBOLT, INSTRUMENT PANEL

main55394-08060iASU5#201503-201803

55394CBOLT, INSTRUMENT PANEL

main55394-08070iGSU55201503-201803

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-0E010-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#

main55400-0E010-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#,2#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-0E060-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#

main55472-0E060-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#,2#

55408MCLIP(FOR INSTRUMENT PANEL SPEAKER PANEL)

main90467-13082-A0iASU5#,GSU55201503-201803

MELLOW WHITE

sub90467-13082

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-0E060-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#

main55473-0E060-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#,2#

55416ARETAINER, METER HOOD, NO.1

main55416-0E060iASU5#201503-201803

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-0E080-A0iASU5#201503-201803

FLAXEN,TRIM0#

main55435-0E080-C0iASU55;ASU50..SPO201503-201803

BLACK,TRIM2#

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-0E090-A0iASU5#201503-201803

FLAXEN,TRIM0#

main55436-0E090-C0iASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM2#

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-0E010iASU5#201503-201803

55538ACOVER, COOLER SWITCH HOLE

main55538-0E020-C0iASU50..D201503-201803

BLACK,TRIM0#

main55538-0E020-C0iASU50..D201803

BLACK,TRIM0#,2#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-0E050-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#

main55961-0E050-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#,2#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-0E050-C0iASU50..D201503-201803

BLACK,TRIM0#,2#

main55962-0E050-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-0E050-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#

main55981-0E050-C0iASU5#,GSU55..D201503-201803

BLACK,TRIM0#,2#

55981BCLIP(FOR DEFROSTER NOZZLE GARNISH)

main90467-13082-A0iASU5#,GSU55201503-201803

MELLOW WHITE

sub90467-13082

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0E080iGSU55201503-201803

8202

90105C0157

main90105-C0157

90119C0107

main90119-C0107

90119C0284

main90119-C0284

90119C0285

main90119-C0285

90119C0345

main90119-C0345

90159C0037

main90159-C0037

90167C0004

main90167-C0004

90178C0032

main90178-C0032

90178C0034

main90178-C0034

90185C0002

main90185-C0002

34 parts on this diagram · 7 diagrams in section
