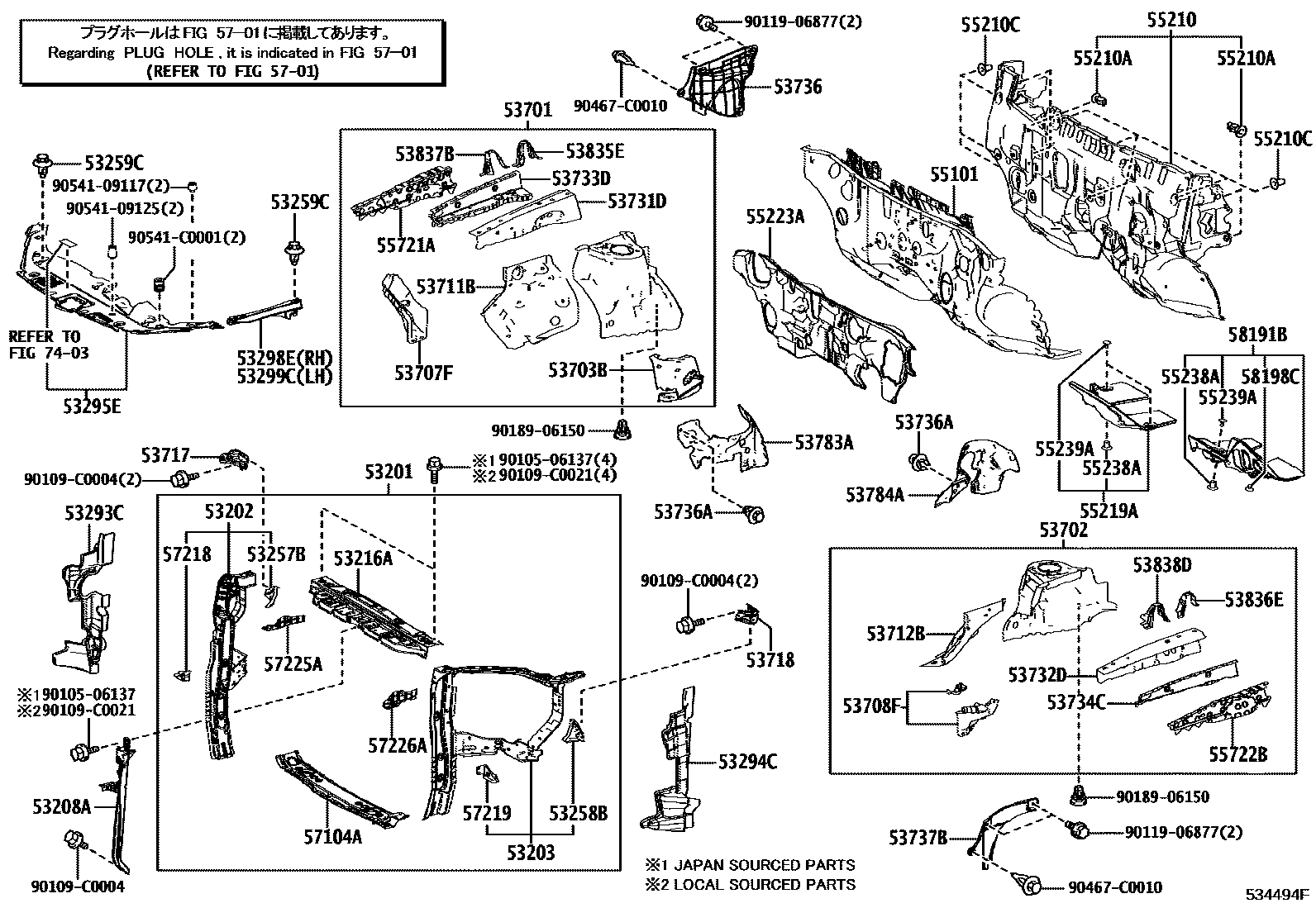

FRONT FENDER APRON & DASH PANEL
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL
53298ESEAL, RADIATOR SIDE, RH
53299CSEAL, RADIATOR SIDE, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53703BRETAINER SUB-ASSY, FENDER APRON, RH
53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH
53708FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53717PLATE, FENDER APRON, RH
53718PLATE, FENDER APRON, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53736SEAL, FRONT FENDER APRON, RH
53736ACLIP(FOR FRONT FENDER APRON SEAL)
BLACK
53737BSEAL, FRONT FENDER APRON, LH
53783AINSULATOR, APRON FRONT FENDER, RH
53784AINSULATOR, APRON FRONT FENDER, LH
53835EBRACE, FRONT FENDER TO APRON, RH
53836EBRACE, FRONT FENDER TO APRON, LH
53837BBRACKET, FRONT SIDE PANEL, NO.2
53838DBRACKET, FRONT SIDE PANEL, NO.2 LH
55210ACLIP
55210CCLIP
(J)
(L)
55219APACKING, DASH PANEL HOLE COVER
55238APLATE, DASH PANEL INSULATOR, NO.2
55239APLATE, DASH PANEL INSULATOR, NO.3
55721ABRACE, COWL TOP TO COWL, INNER NO.1
55722BBRACE, COWL TOP TO COWL, INNER NO.2
5701
57104AMEMBER SUB-ASSY, FRONT CROSS
57218GUSSET, FRONT SIDE MEMBER, NO.1
57219GUSSET, FRONT SIDE MEMBER, NO.2
57225ABRACE, FRONT MOUNTING BRACKET, RH
57226ABRACE, FRONT MOUNTING BRACKET, LH
58191BFOOTREST, FRONT FLOOR
58198CCLIP, DASH PANEL INSULATOR PAD
7403
9010506137
90109C0004
main90109-C0004
90109C0021
main90109-C0021
9011906877
9018906150
90467C0010
main90467-C0010
9054109117
9054109125
90541C0001
main90541-C0001
63 parts on this diagram · 1 diagram in section
