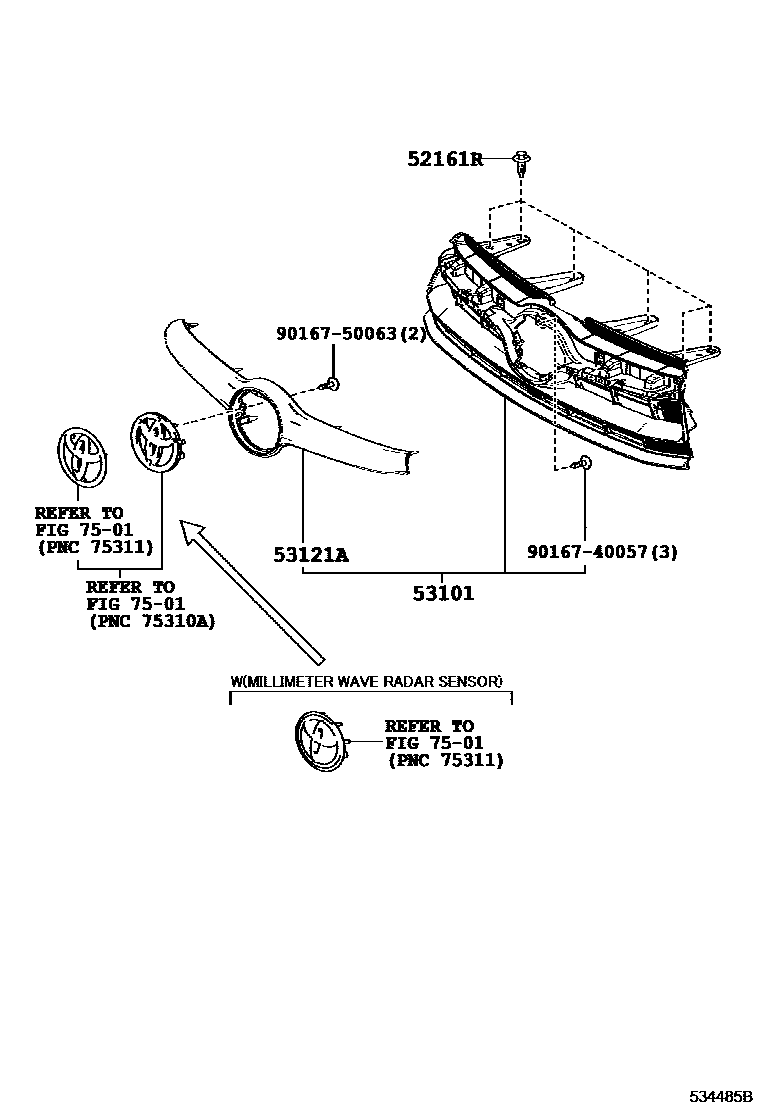

RADIATOR GRILLE

0001 1 0002 1 0003 1SPORT PACKAGE

52161RPIECE, FRONT BUMPER

main52161-02040iGSU55201607-201803

main52161-16010iASU5#,GSU55201503-201606

sub52161-0K040

53101GRILLE SUB-ASSY, RADIATOR

main53101-0E200iASU5#,GSU55201503-201803

PLATED

main53101-0E310iASU55..LIMD201803

PLATED

main53101-0E320iASU5#..D,SPO201803

NO PAINT REQ.

main53101-YY060iASU5#..SPO201803

PLATED,SPORT PACKAGE(*PBD & HEADLAMP:*HAL)

main53101-YY060iASU55..SPO201909

PLATED,SPORT PACKAGE(*PBD & HEADLAMP:LED)

main53101-YY070iASU55..SPO201909

PLATED, SPECIAL BLACK PACKAGE

53121AMOULDING, RADIATOR GRILLE

main53121-0E110iGSU55201503-201803

7501

9016740057

main90167-40057

9016750063

main90167-50063

6 parts on this diagram · 3 diagrams in section
