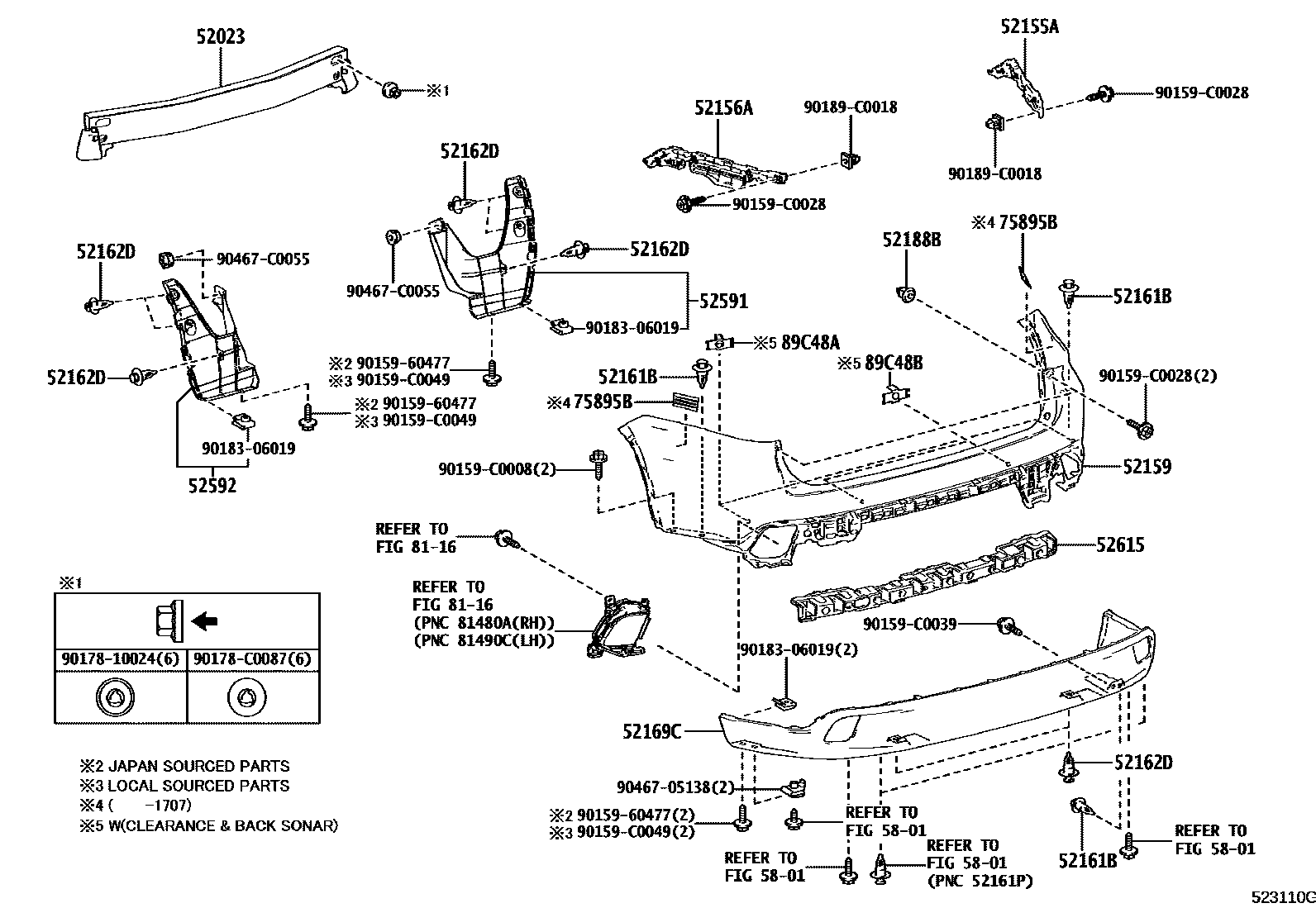

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-0E010iASU5#,GSU55201503-201803

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-0E080iGSU55201503-201803

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-0E080iGSU55201503-201803

52159COVER, REAR BUMPER

main52159-0E913iGSU55201503-201803

PAINT REQ.

main52159-0E919iASU5#..LIMD,SPO201803

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-02040iGSU55201607-201803

main52161-16010iASU5#,GSU55201503-201606

sub52161-0K040

52162DPIECE, REAR BUMPER

main52161-02040iASU5#201607-201803

main52161-16010iASU5#,GSU55201503-201606

sub52161-0K040

52169CCOVER, REAR BUMPER, LOWER

main52169-0E080iGSU55201503-201803

NO PAINT REQ.

52188BSPACER, REAR BUMPER MOUNTING

main52188-06040iGSU55201503-201803

52591SEAL, REAR BUMPER SIDE, RH

main52591-0E070iGSU55201503-201803

52592SEAL, REAR BUMPER SIDE, LH

main52592-0E070iGSU55201503-201803

52615ABSORBER, REAR BUMPER ENERGY

main52615-0E090iGSU55201503-201803

5801

75895BTAPE, MOULDING, NO.2

main75895-0E020iASU5#,GSU55201503-201707

8116

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-02100iASU5#..LIMD,SPO201803

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-02100iASU5#..LIMD,SPO201803

9015960477

main90159-60477

90159C0008

main90159-C0008

90159C0028

main90159-C0028

90159C0039

main90159-C0039

90159C0049

main90159-C0049

9017810024

main90178-10024

90178C0087

main90178-C0087

9018306019

main90183-06019

90189C0018

main90189-C0018

9046705138

main90467-05138

90467C0055

main90467-C0055

27 parts on this diagram · 1 diagram in section
