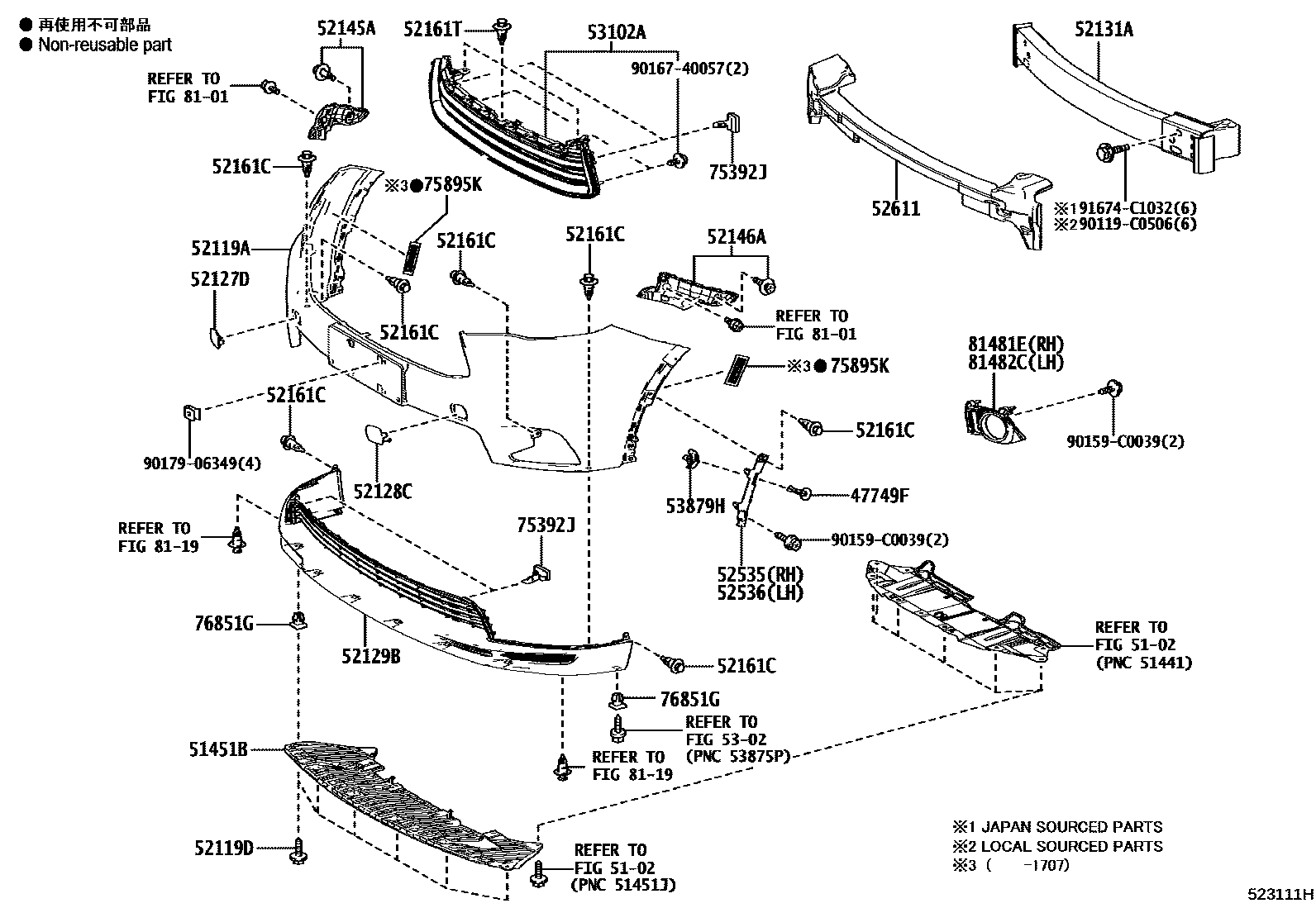

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1SPORT PACKAGE

47749FCLIP, PIN HOLD

main47749-0F010iASU5#201503-201803

5102

51451BCOVER, ENGINE UNDER, CENTER

main51451-0E030iGSU55201503-201803

main51451-0E040iASU5#201803

52119ACOVER, FRONT BUMPER

main52119-0E931iGSU55..LIMD201503-201803

PAINT REQ.

main52119-0E932iGSU55..D,SPO201503-201803

PAINT REQ.

main52119-0E939iASU5#..SPO201803

PAINT REQ.

main52119-0E940iASU5#..D201803

PAINT REQ.

main52119-0E941iASU55..LIMD201803

PAINT REQ.

52119DSCREW, NO.1

main90159-60477iASU5#,GSU55201503-201803

(J)

main90159-C0049iASU5#201503-201803

(L)

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-0E926iGSU55201503-201803

main52127-0E928iASU5#201803

52128CCOVER, FRONT BUMPER HOLE, LH

main52128-0E927iGSU55201503-201803

main52128-0E929iASU5#201803

52129BCOVER, FRONT BUMPER, LOWER

main52129-0E020iGSU55201503-201803

main52129-0E040iASU5#201803

52131AREINFORCEMENT, FRONT BUMPER

main52021-0E060iGSU55201503-201803

52145ASTAY, FRONT BUMPER, NO.2 RH

main52145-0E070iGSU55201503-201803

main52145-0E090iASU5#201803

52146ASTAY, FRONT BUMPER, NO.2 LH

main52146-0E070iGSU55201503-201803

main52146-0E090iASU5#201803

52161CPIECE, FRONT BUMPER

main52161-02040iASU5#201607-201803

main52161-16010iASU5#,GSU55201503-201606

sub52161-0K040

52161TPIECE, FRONT BUMPER

main52161-02040iASU5#,GSU55201607-201803

main52161-16010iASU5#,GSU55201503-201606

sub52161-0K040

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0E060iGSU55201503-201803

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0E050iASU5#201503-201803

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0E100iGSU55201503-201803

main52611-0E130iASU5#201803

5302

53102AGRILLE SUB-ASSY, RADIATOR, LWR

main53102-0E060iASU5#,GSU55201503-201803

main53102-0E160iASU5#..D,SPO201803

main53102-0E170iASU55..LIMD201803

53879HRETAINER, FRONT FENDER LINER

main53879-0E030iGSU55201503-201803

75392JRETAINER, OUTSIDE MOULDING

main75392-0R030iASU5#201909

main75392-35200iGSU55201503-201908

75895KTAPE, MOULDING, NO.1

main75895-0E020iASU5#,GSU55201503-201707

76851GGROMMET, SCREW, NO.1

main90189-C0006iASU5#,GSU55201503-201803

8101

8119

81481ECOVER, FOG LAMP, RH

main81481-0E170iGSU55201503-201803

main81481-0E210iASU5#201803

81482CCOVER, FOG LAMP, LH

main81482-0E170iGSU55201503-201803

main81482-0E210iASU5#201803

90119C0506

main90119-C0506

90159C0039

main90159-C0039

9016740057

main90167-40057

9017906349

main90179-06349

91674C1032

main91674-C1032

31 parts on this diagram · 3 diagrams in section
