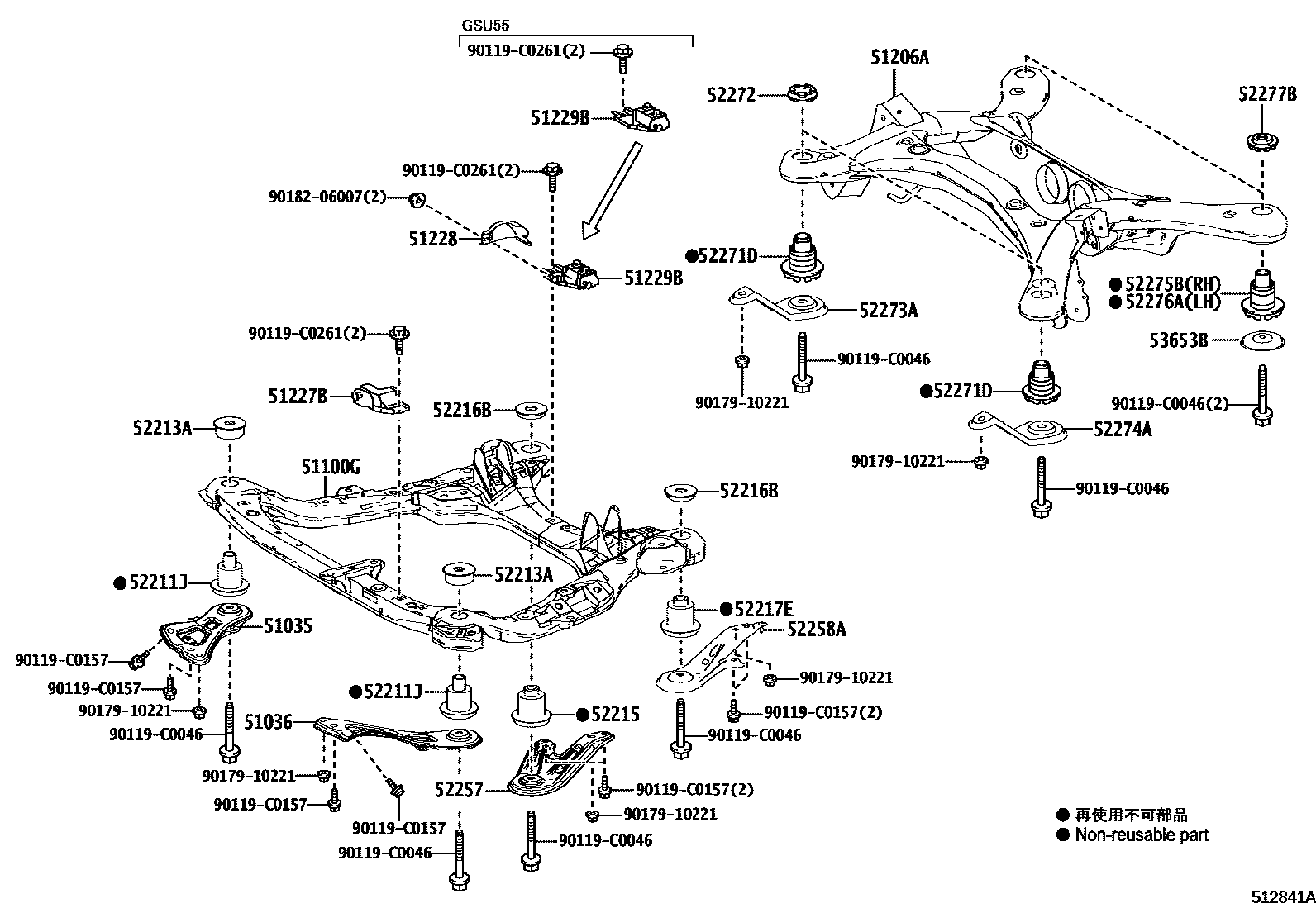

SUSPENSION CROSSMEMBER & UNDER COVER
51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC
51228PLATE, SUSPENSION MEMBER SET
51229BDUMPER, NO.2 FRAME CROSSMEMBER DYNAMIC
52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH
52257BRACE, FRONT SUSPENSION MEMBER, REAR RH
52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH
52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52272STOPPER, REAR SUSPENSION MEMBER, UPPER
52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH
52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH
52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH
52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH
52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER
53653BBRACE, REAR SUSPENSION, LOWER
90119C0046
main90119-C0046
90119C0157
main90119-C0157
90119C0261
main90119-C0261
9017910221
9018206007
27 parts on this diagram · 2 diagrams in section
