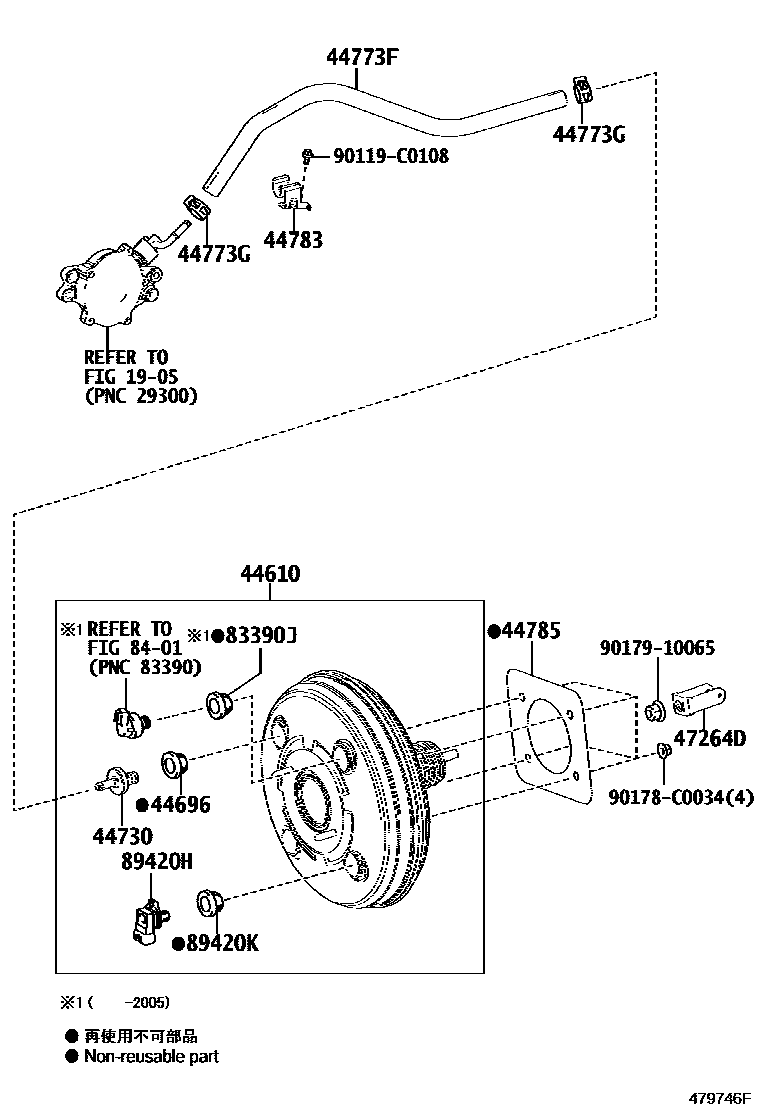

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-0E110iGSU55201503-201710

main44610-0E120iASU5#201503-202003

main44610-0E220iASU5#202004

44696GROMMET, CHECK VALVE

main90080-48071iGSU55201503-201803

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iASU5#201803-202004

main44730-30060iASU5#202004

main44730-60070iASU5#,GSU55201503-201803

44773FHOSE, UNION TO CHECK VALVE

main44773-0E060iGSU55201503-201710

main44773-0E070iASU5#201503-201803

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-C0034iGSU55201503-201803

44783CLAMP, VACUUM HOSE

main44783-78010iASU5#201503-201803

44785GASKET, BRAKE BOOSTER

main44785-06020iGSU55201503-201803

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0E010iASU5#201607-201803

main47264-48020iASU5#,GSU55201503-201607

83390JGROMMET, VACUUM WARNING SWITCH

main90080-48071iASU5#201503-202004

8401

89420HSENSOR ASSY, VACUUM

main89421-52020iASU5#201503-201803

WITHOUT(STOP & START SYSTEM)

main89421-52020iASU5#201803

89420KGROMMET, VACUUM SENSOR

main90080-48071iASU5#201503-201803

90119C0108

main90119-C0108

90178C0034

main90178-C0034

9017910065

main90179-10065

16 parts on this diagram · 2 diagrams in section
