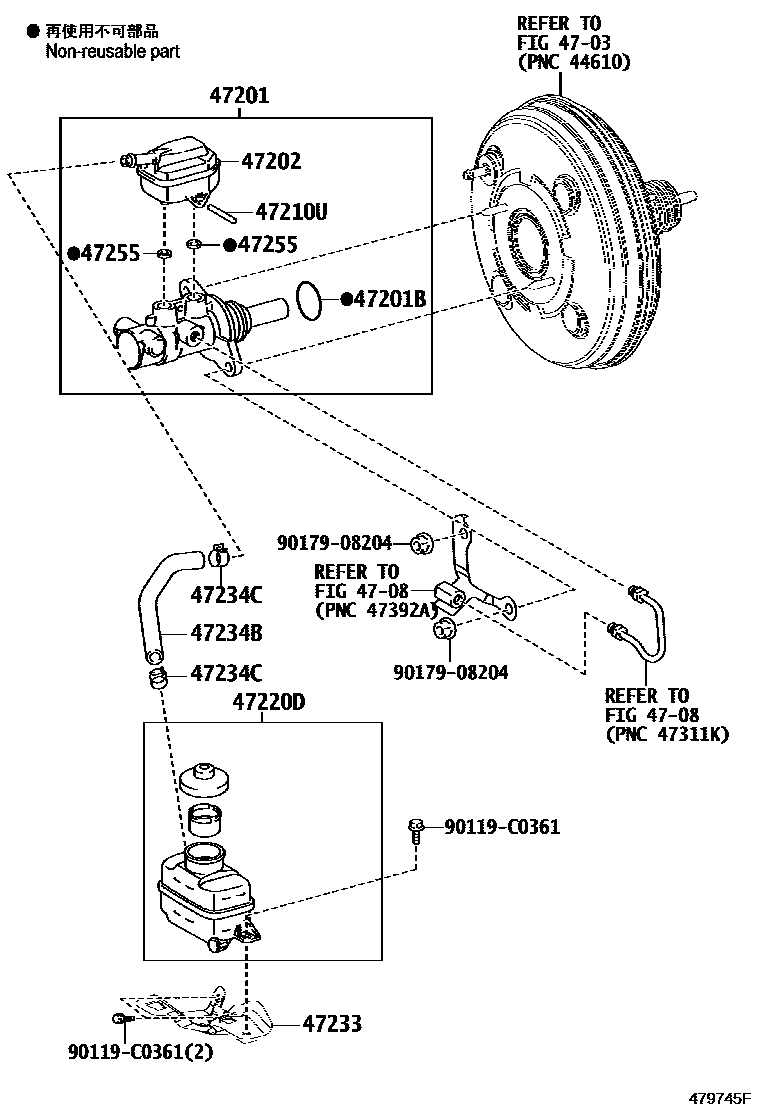

BRAKE MASTER CYLINDER

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0E032iGSU55201503-202003

main47201-0E070iASU5#202004

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90016-AH902iGSU55201503-201803

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-0E040iGSU55201503-201803

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iGSU55201503-201803

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0E090iGSU55201503-201803

47233BRACKET, RESERVOIR

main47233-0E060iGSU55201503-201803

47234BTUBE, RESERVOIR, NO.1

main47234-0E060iGSU55201503-201803

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main90466-C0021iGSU55201503-201803

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT002iGSU55201503-201803

90119C0361

main90119-C0361

9017908204

main90179-08204

13 parts on this diagram · 1 diagram in section
