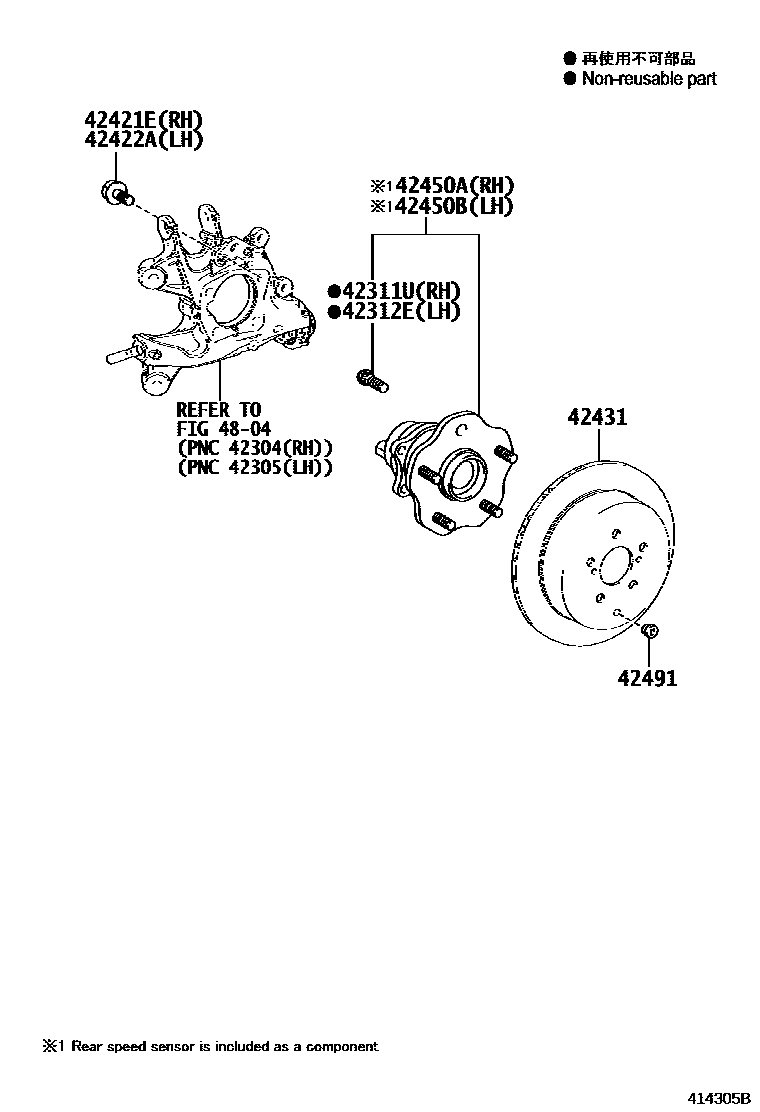

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iGSU55201503-201803

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iGSU55201503-201803

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-C0284iASU5#,GSU55201503-201803

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-C0284iASU5#,GSU55201503-201803

42431DISC, REAR

main42431-0E050iASU5#201503-201803

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-0E060iASU55201503-201803

main42450-0E060iASU50201503-201803

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-0E060iASU55201503-201803

main42450-0E060iASU50201503-201803

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47493-06010iASU5#201503-201803

4804

9 parts on this diagram · 3 diagrams in section
