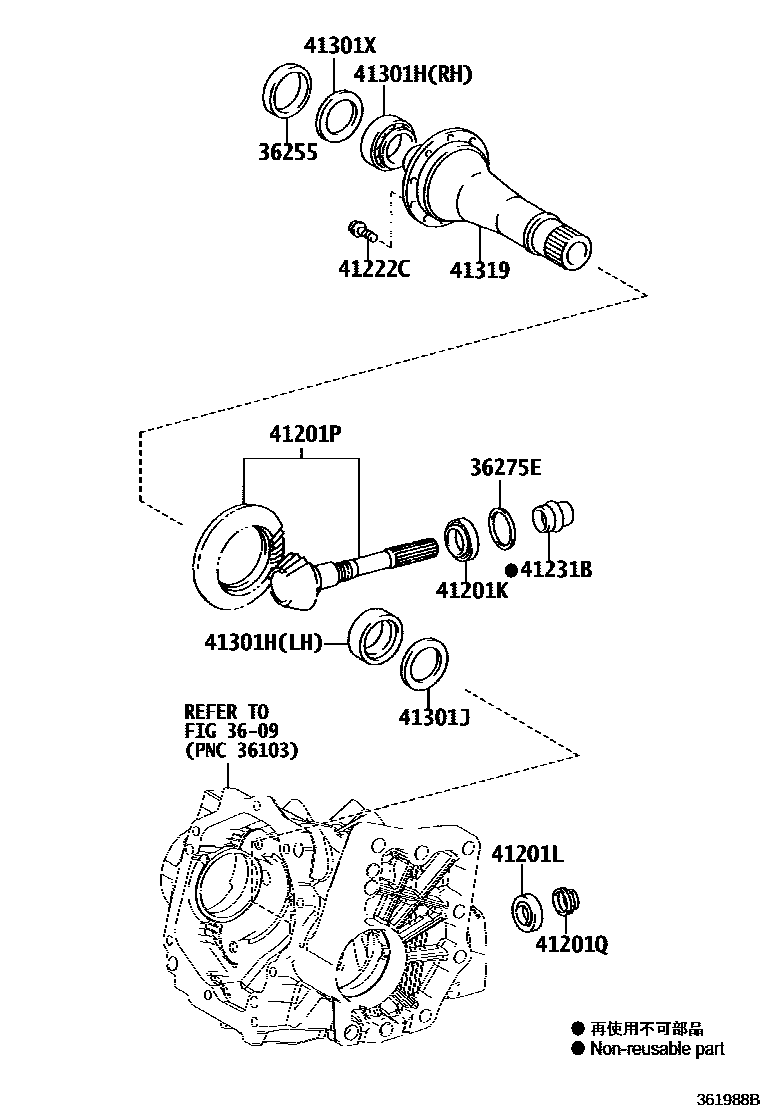

TRANSFER GEAR
3609
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
36275EWASHER, TRANSFER OUTPUT SHAFT
T=2.10,MARK AA
T=2.12,MARK AC
T=2.14,MARK BB
T=2.16,MARK CA
T=2.18,MARK CC
T=2.20,MARK DB
T=2.22,MARK EA
T=2.24,MARK EC
T=2.26,MARK FB
T=2.28,MARK GA
T=2.30,MARK GC
T=2.32,MARK HB
T=2.34,MARK JA
T=2.36,MARK JC
T=2.38,MARK KB
T=2.40,MARK LA
T=2.42,MARK LC
T=2.44,MARK MB
T=2.46,MARK NA
T=2.48,MARK NC
T=2.50,MARK PB
T=2.52,MARK QA
T=2.54,MARK QC
T=2.00,MARK ZA
T=2.02,MARK ZB
T=2.04,MARK ZC
T=2.06,MARK ZD
T=2.08,MARK ZE
T=2.56,MARK RA
T=2.58,MARK RB
T=2.60,MARK RC
T=2.62,MARK SA
T=2.64,MARK SB
T=2.66,MARK SC
T=2.68,MARK TA
T=2.70,MARK TB
T=2.72,MARK TC
41201KBEARING (FOR TRANSFER DRIVEN PINION FRONT)
41201LBEARING (FOR TRANSFER DRIVEN PINION REAR)
41201PGEAR KIT, TRANSFER
41201QNUT (FOR TRANSFER GEAR)
41222CBOLT (FOR TRANSFER RING GEAR)
41231BSPACER, TRANSFER PINION BEARING
41301HBEARING(FOR RING GEAR MOUNTING CASE)
RH
LH
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
T=1.96,MARK 5Q
T=1.98,MARK 5R
T=2.00,MARK 5S
T=2.02,MARK 5T
T=2.04,MARK 5U
T=2.06,MARK 5V
T=2.08,MARK 5W
T=2.10,MARK 5X
T=2.12,MARK 5Y
T=2.14,MARK 5Z
T=2.16,MARK 6F
T=2.18,MARK 6G
T=2.20,MARK 6H
T=2.22,MARK 6J
T=2.24,MARK 6K
T=2.26,MARK 6L
T=2.28,MARK 6M
T=2.30,MARK 6N
T=2.32,MARK 6P
T=2.34,MARK 6Q
T=2.36,MARK 6R
T=2.38,MARK 6S
T=2.40,MARK 6T
T=2.42,MARK 6U
T=2.44,MARK 6V
T=2.46,MARK 6W
T=2.48,MARK 6X
T=2.50,MARK 6Y
T=2.52,MARK 6Z
T=2.54,MARK 7F
T=2.56,MARK 7G
T=2.58,MARK 7H
T=2.60,MARK 7J
T=2.62,MARK 7K
T=2.64,MARK 7L
T=2.66,MARK 7M
T=2.68,MARK 7N
T=2.70,MARK 7P
T=2.72,MARK 7Q
T=2.74,MARK 7R
T=2.76,MARK 7S
T=2.78,MARK 7T
T=2.80,MARK 7U
T=2.82,MARK 7V
T=2.84,MARK 7W
T=2.86,MARK 7X
T=2.88,MARK 7Y
T=2.90,MARK 7Z
T=2.92,MARK 8F
T=2.94,MARK 8G
T=2.96,MARK 8H
T=2.98,MARK 8J
T=3.00,MARK 8K
T=3.02,MARK 8L
T=3.04,MARK 8M
T=3.06,MARK 8N
T=3.08,MARK 8P
T=3.10,MARK 8Q
T=3.12,MARK 8R
T=3.14,MARK 8S
T=3.16,MARK 8T
T=3.18 MARK 8U
T=3.20 MARK 8V
T=3.22 MARK 8W
T=3.24 MARK 8X
T=3.26 MARK 8Y
T=3.28 MARK 8Z
T=3.30 MARK 9D
T=3.32 MARK 9E
T=3.34 MARK 9F
T=3.36 MARK 9G
T=3.38 MARK 9H
T=1.95
T=1.97
T=1.99
T=2.01
T=2.03
T=2.05
T=2.07
T=2.09
T=2.11
T=2.13
T=2.15
T=2.17
T=2.19
T=2.21
T=2.23
T=2.25
T=2.27
T=2.29
T=2.31
T=2.33
T=2.35
T=2.37
T=2.39
T=2.41
T=2.43
T=2.45
T=2.47
T=2.49
T=2.51
T=2.53
T=2.55
T=2.57
T=2.59
T=2.61
T=2.63
T=2.65
T=2.67
T=2.69
T=2.71
T=2.73
T=2.75
T=2.77
T=2.79
T=2.81
T=2.83
T=2.85
T=2.87
T=2.89
T=2.91
T=2.93
T=2.95
T=2.97
T=2.99
T=3.01
T=3.03
T=3.05
T=3.07
T=3.09
T=3.11
T=3.13
T=3.15
T=3.17
T=3.19
T=3.21
T=3.23
T=3.25
T=3.27
T=3.29
T=3.31
T=3.33
T=3.35
T=3.37
41301XWASHER, TRANSFER RING GEAR MOUNTING CASE, NO.2
T=2.47,MARK G7
T=2.49,MARK G8
T=2.51,MARK G9
T=2.53,MARK H0
T=2.55,MARK H1
T=2.57,MARK H2
T=2.59,MARK H3
T=2.61,MARK H4
T=2.63,MARK H5
T=2.65,MARK H6
T=2.67,MARK H7
T=2.69,MARK H8
T=2.71,MARK H9
T=2.73,MARK J0
T=2.75,MARK J1
T=2.77,MARK J2
T=2.79,MARK J3
T=2.81,MARK J4
T=2.83,MARK J5
T=2.85,MARK J6
T=2.87,MARK J7
T=2.89,MARK J8
T=2.91,MARK J9
T=2.93,MARK K0
T=2.95,MARK K1
T=2.97,MARK K2
T=2.99,MARK K3
T=3.01,MARK K4
T=3.03,MARK K5
T=3.05,MARK K6
T=3.07,MARK K7
T=3.09,MARK K8
T=3.11,MARK K9
T=3.13,MARK L0
T=3.15,MARK L1
T=3.17,MARK L2
T=3.19,MARK L3
T=3.21,MARK L4
T=3.23,MARK L5
T=3.25,MARK L6
T=3.27,MARK L7
T=3.29,MARK L8
T=3.31,MARK L9
T=3.33,MARK M0
T=3.35,MARK M1
T=3.37,MARK M2
T=3.39,MARK M3
T=3.41,MARK M4
T=3.43,MARK M5
T=3.45,MARK M6
T=3.47,MARK M7
T=3.49,MARK M8
T=3.51,MARK M9
T=3.53,MARK N0
T=3.55,MARK N1
T=3.57,MARK N2
T=3.59,MARK N3
T=3.61,MARK N4
T=3.63,MARK N5
T=3.65,MARK N6
T=3.67,MARK N7
T=3.69,MARK N8
T=3.71,MARK N9
T=3.73,MARK P0
T=3.75,MARK P1
T=3.77,MARK P2
T=3.79,MARK P3
T=3.81,MARK P4
T=3.83,MARK P5
T=3.85,MARK P6
T=3.87,MARK P7
T=3.89,MARK P8
T=3.91,MARK P9
T=3.93,MARK Q0
T=3.95,MARK Q1
T=3.97,MARK Q2
T=3.99,MARK Q3
T=4.01,MARK Q4
T=4.03,MARK Q5
T=4.05,MARK Q6
T=4.07,MARK Q7
T=4.09,MARK Q8
T=4.11,MARK Q9
T=4.13,MARK R0
T=4.15,MARK R1
T=4.17,MARK R2
T=4.19,MARK R3
T=4.21 MARK R4
T=4.23 MARK R5
T=4.25 MARK R6
T=4.27 MARK R7
T=4.29 MARK R8
T=4.31 MARK R9
T=4.33 MARK S0
T=4.35 MARK S1
T=4.37 MARK S2
T=4.39 MARK S3
T=4.41 MARK S4
T=4.43 MARK S5
T=4.45 MARK S6
41319CASE, TRANSFER RING GEAR MOUNTING
13 parts on this diagram · 1 diagram in section
