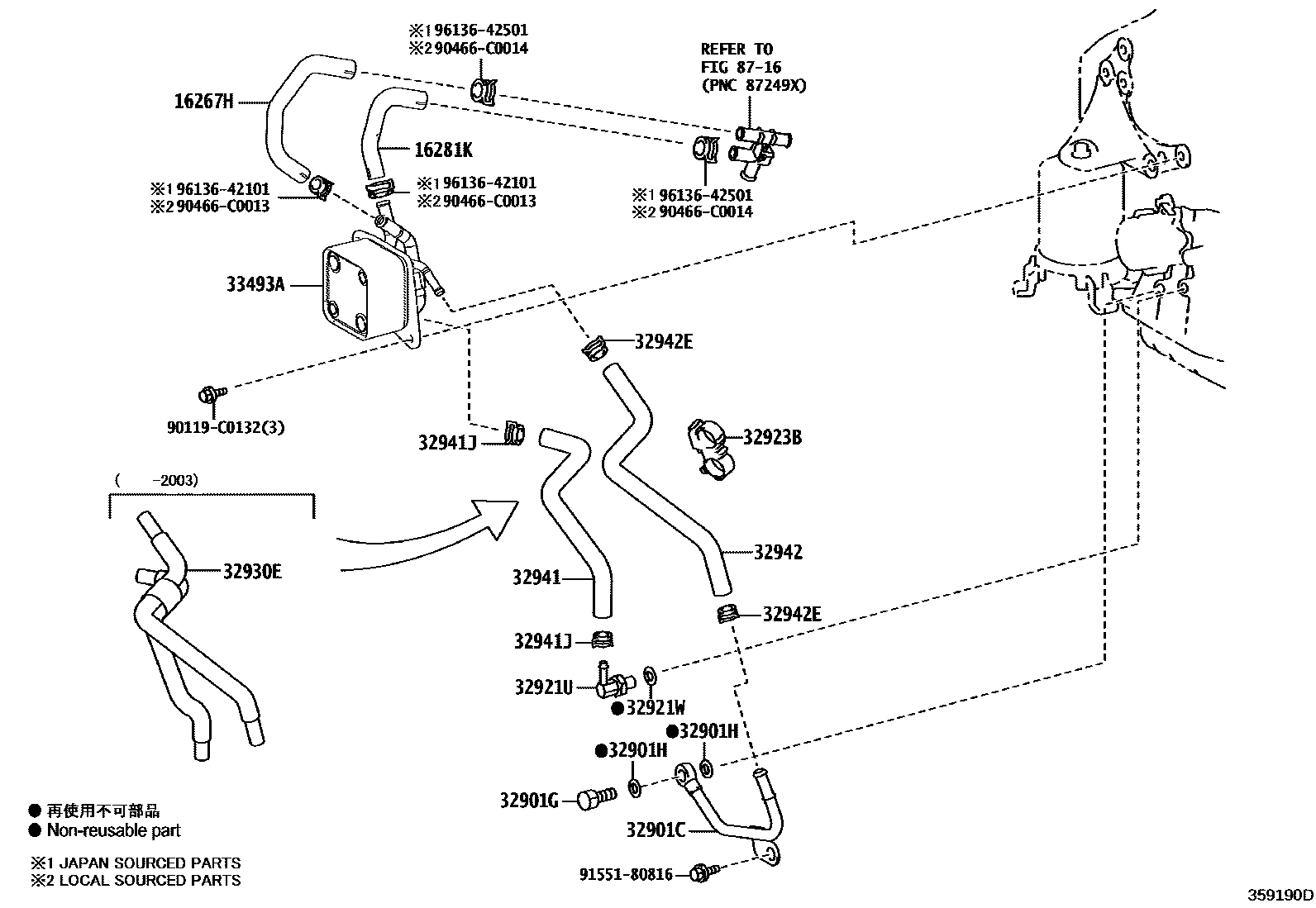

OIL COOLER & TUBE (ATM)

0001 1U661E,U661F 0002 1U660F

16267HHOSE, WATER BY-PASS, NO.3

main16267-0V070i8ARFTS..ASU5#201503-201803

16281KHOSE, WATER BY-PASS, NO.4

main16281-0V070i8ARFTS..ASU5#201503-201803

32901CUNION SUB-ASSY, OIL COOLER

main32901-48010iASU5#¥1,190201503-201803

32901GBOLT, UNION(FOR OIL COOLER)

main90401-14003iASU5#¥370201503-201803

32901HGASKET(FOR OIL COOLER UNION)

main90430-14013iASU5#¥80201503-201803

32921UELBOW(FOR OIL COOLER TUBE)

main90407-14032iASU5#¥400201503-201803

32921WRING, O(FOR OIL COOLER TUBE ELBOW)

main90301-11031iASU5#¥200201503-201803

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-48100iASU5#¥300202003

32930EHOSE ASSY, TRANSMISSION OIL COOLER, NO.1

main32930-0E120iASU5#201503-202003

32941HOSE, OIL COOLER INLET, NO.1

main32930-0E110iGSU55201503-201710

main32941-0E121iASU5#202003

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-C0024iGSU55201503-201803

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-0E120iGSU55201503-201710

main32942-0E131iASU5#202003

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-C0024iGSU55201503-201803

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-0E010iASU5#201503-201803

8716

90119C0132

main90119-C0132

90466C0013

main90466-C0013

90466C0014

main90466-C0014

9155180816

main91551-80816¥80

9613642101

main96136-42101¥240

9613642501

main96136-42501¥200

21 parts on this diagram · 2 diagrams in section
