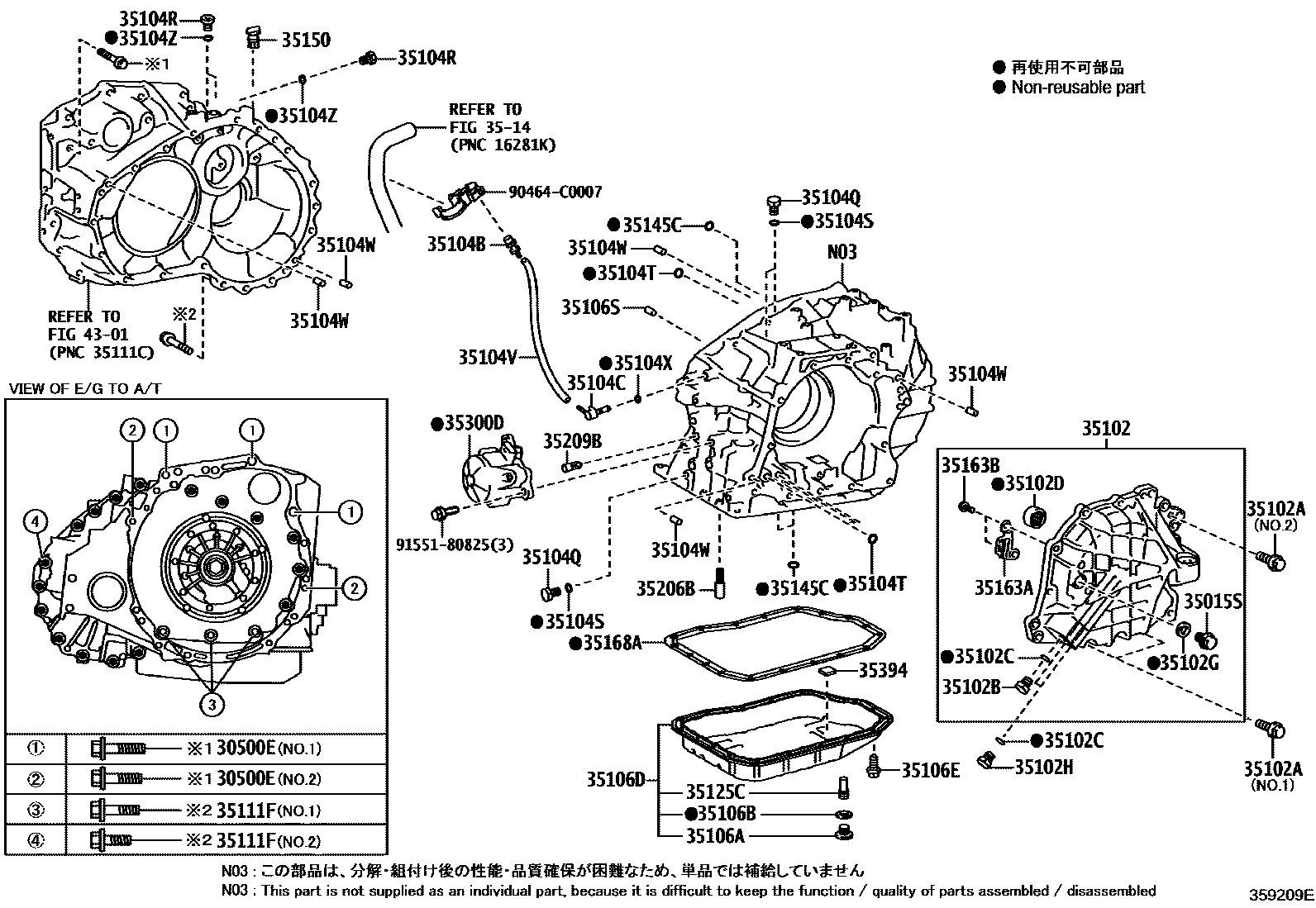

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U661E,U661F 0002 1U660F

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10425iGSU55201503-201710

*10-1.25PX41-28,(J),NO.3:SEE ILLUST

main90105-C0031×2iASU5#201503-201803

*10-1.25PX50-30,NO.2:REFER ILLUST.

main90105-C0273iGSU55201503-201710

*10-1.25PX41-28,(L),NO.3:SEE ILLUST

main90119-12250iGSU55201503-201710

*12-1.25PX50-30,(J),NO.2:SEE ILLUST

main90119-C0040×3iASU5#201503-201803

*12-1.25PX55-30,NO.1:REFER ILLUST.

main90119-C0358iGSU55201503-201710

*12-1.25PX50-30,(L),NO.2:SEE ILLUST

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18064iASU5#201503-201803

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-33061iGSU55201503-201710

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08431×2iASU5#201803

*8-1.25PX28-22,NO.1:REFER ILLUST.

main91551-00828×12iASU5#201503-201803

*8-1.25PX28-22,NO.2:REFER ILLUST.

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001iGSU55201503-201710

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196×3iASU5#201803

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-18010iGSU55201503-201710

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008iGSU55201503-201710

35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)

main90341-08001×2iGSU55201503-201710

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149iGSU55201503-201710

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03187iGSU55201503-201710

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×3iGSU55201503-201710

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015×3iGSU55201503-201710

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×3iGSU55201503-201710

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-10018×4iGSU55201503-201710

35104VHOSE (FOR BREATHER PLUG)

main35121-73011iASU5#201503-201803

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×5iASU5#201503-201803

35104XRING, O (FOR BREATHER PLUG)

main90301-06021iGSU55201503-201710

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008×3iGSU55201503-201710

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12034iGSU55201503-201710

35106BGASKET, DRAIN PLUG (ATM)

main90430-12008iGSU55201503-201710

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-48011iGSU55201503-201710

main35106-48020iASU5#201503-201803

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iGSU55201503-201710

35106SPIN, RING (FOR TRANSAXLE CASE)

main90253-11007iGSU55201503-201710

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08432×3iASU5#201803

*8-1.25PX45-22,NO.1:REFER ILLUST.

main91551-10845×17iASU5#201503-201803

*8-1.25PX45-22,NO.2:REFER ILLUST.

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-33130iGSU55201503-201710

3514

35145CGASKET, TRANSAXLE CASE

main35145-33010iGSU55201503-201710

35150PLUG ASSY, TRANSMISSION CASE

main35150-44010iASU5#201503-201803

35163APLATE, TRANSAXLE REAR COVER

main35163-33010iGSU55201503-201710

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90148-60055×2iGSU55201503-201710

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-33080iGSU55201503-201710

35206BVALVE SUB-ASSY, CHECK, NO.1

main35206-48010iASU5#201503-201803

35209BVALVE SUB-ASSY, TRANSAXLE OIL CHECK

main35209-48010iASU5#201503-201803

35300DPUMP ASSY, OIL W/MOTOR

main35300-48030iASU5#201503-201803

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iGSU55201503-201710

4301

90464C0007

main90464-C0007

9155180825

main91551-80825

39 parts on this diagram · 2 diagrams in section
