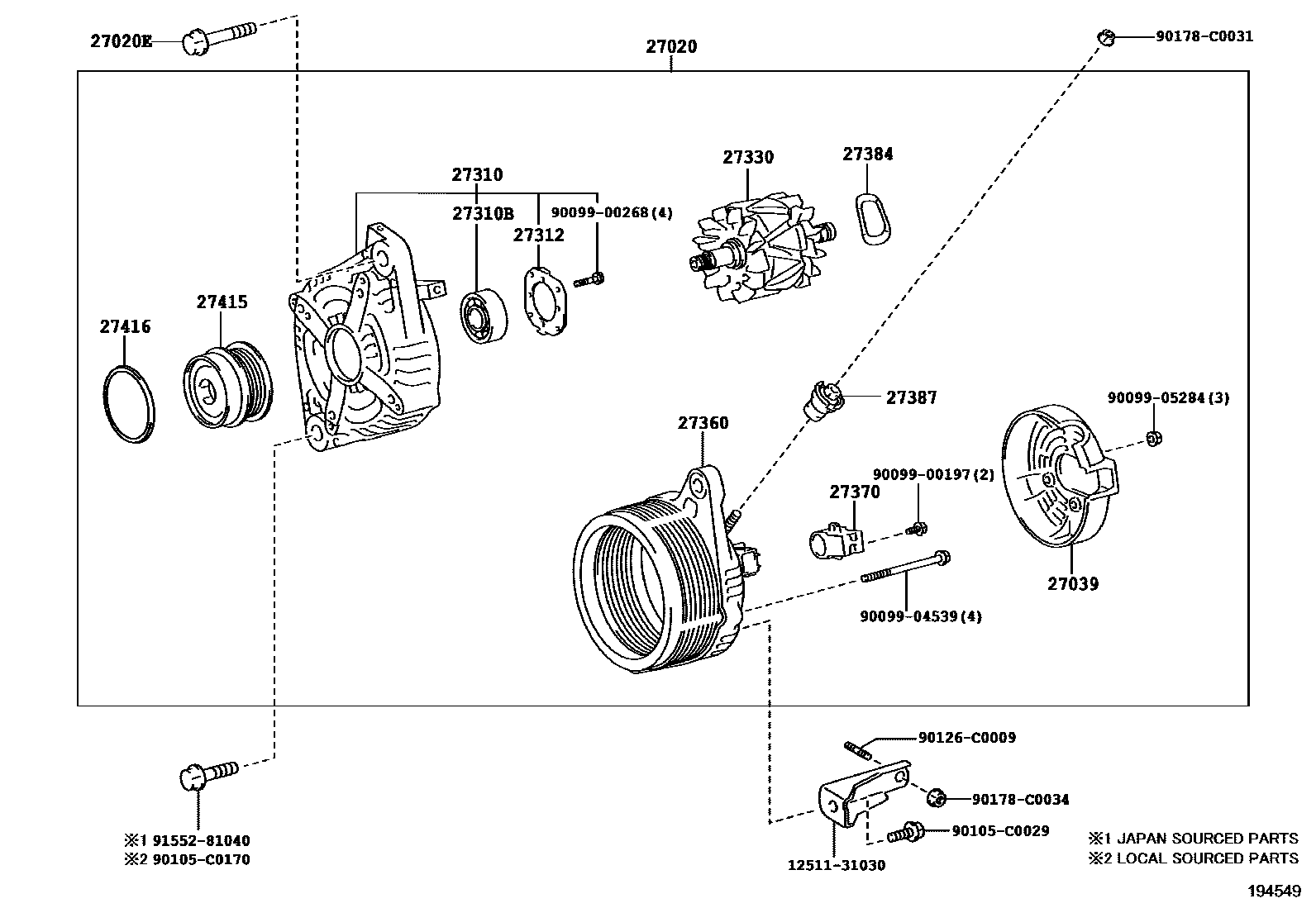

ALTERNATOR

0001 112V 150A 0002 112V 150A

27020ALTERNATOR ASSY

main27060-0P270i2GRFE..GSU55201503-201710

12V 150A

main27060-0V160i8ARFTS..ASU5#201503-201803

12V 150A

27020EBOLT(FOR ALTERNATOR)

main90105-C0098i2GRFE..GSU55201503-201710

27039COVER, ALTERNATOR REAR END

main27039-0P070i2GRFE..GSU55201503-201710

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0P040i2GRFE..GSU55201503-201710

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10042i2GRFE..GSU55201503-201710

27312PLATE, RETAINER

main27312-0M070i2GRFE..GSU55201503-201710

27330ROTOR ASSY, ALTERNATOR

main27330-0P180i2GRFE..GSU55201503-201710

27360COIL ASSY, ALTERNATOR

main27360-0P320i2GRFE..GSU55201503-201710

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0T030i2GRFE..GSU55201503-201710

27384WASHER

main27384-50030i2GRFE..GSU55201503-201710

27387INSULATOR, TERMINAL

main27387-0H110i2GRFE..GSU55201503-201710

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W131i2GRFE..GSU55201503-201710

main27415-0W160i8ARFTS..ASU5#201503-201803

27416CAP, ALTERNATOR PULLEY

main27416-0W050i8ARFTS,2GRFE..ASU5#,GSU55201503-201803

1251131030BRACKET, ALTERNATOR, NO.1

main12511-31030

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

90105C0029

main90105-C0029

90105C0170

main90105-C0170

90126C0009

main90126-C0009

90178C0031

main90178-C0031

90178C0034

main90178-C0034

9155281040

main91552-81040

24 parts on this diagram · 2 diagrams in section
