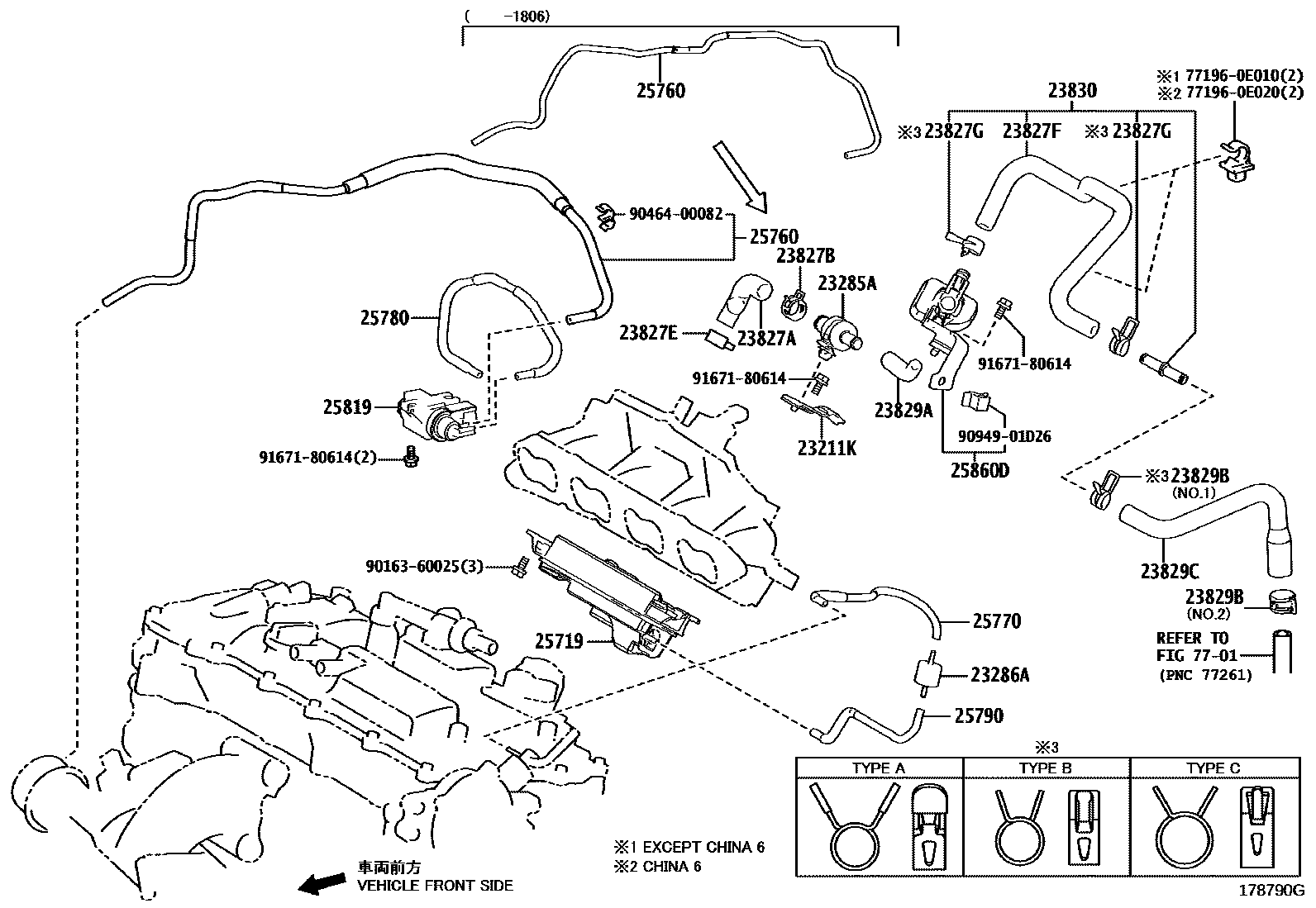

VACUUM PIPING
23211KBRACKET
23285AVALVE, CHECK, NO.1
sub25748-25030
23286AVALVE, CHECK, NO.2
23827AHOSE, FUEL VAPOR FEED, NO.2
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
23827FHOSE, FUEL VAPOR FEED, NO.3
23827GCLIP(FOR FUEL VAPOR FEED HOSE, NO.3)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
23829AHOSE, FUEL VAPOR FEED
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
NO.1,TYPE A:REF ILL.
(L),NO.2
(L),NO.2:SEE ILLUST
NO.1,TYPE B:REF ILL.
(L),NO.3
(L),NO.1
NO.2:REFER ILLUST.
(J),NO.2
(J),NO.1
(J),NO.3
NO.1,TYPE C:REF ILL.
(J),NO.2:SEE ILLUST
NO.2:REFER ILLUST.
23829CHOSE, FUEL VAPOR FEED, NO.2
23830HOSE ASSY, FUEL VAPOR FEED, NO.2
25719TANK, VACUUM SURGE
25770HOSE ASSY, VACUUM TRANSMITTING, NO.2
25780HOSE ASSY, VACUUM TRANSMITTING, NO.3
25790HOSE ASSY, VACUUM TRANSMITTING, NO.4
25819VALVE ASSY, VACUUM REGULATING
25860DVALVE ASSY, VACUUM SWITCHING, NO.2
7701
771960E010CLAMP, EVAPORATION VENT TUBE, NO.1
main77196-0E010
771960E020CLAMP, EVAPORATION VENT TUBE, NO.1
main77196-0E020
9016360025
main90163-60025
9046400082
main90464-00082
9094901D26
main90949-01D26
9167180614
main91671-80614
26 parts on this diagram · 2 diagrams in section
