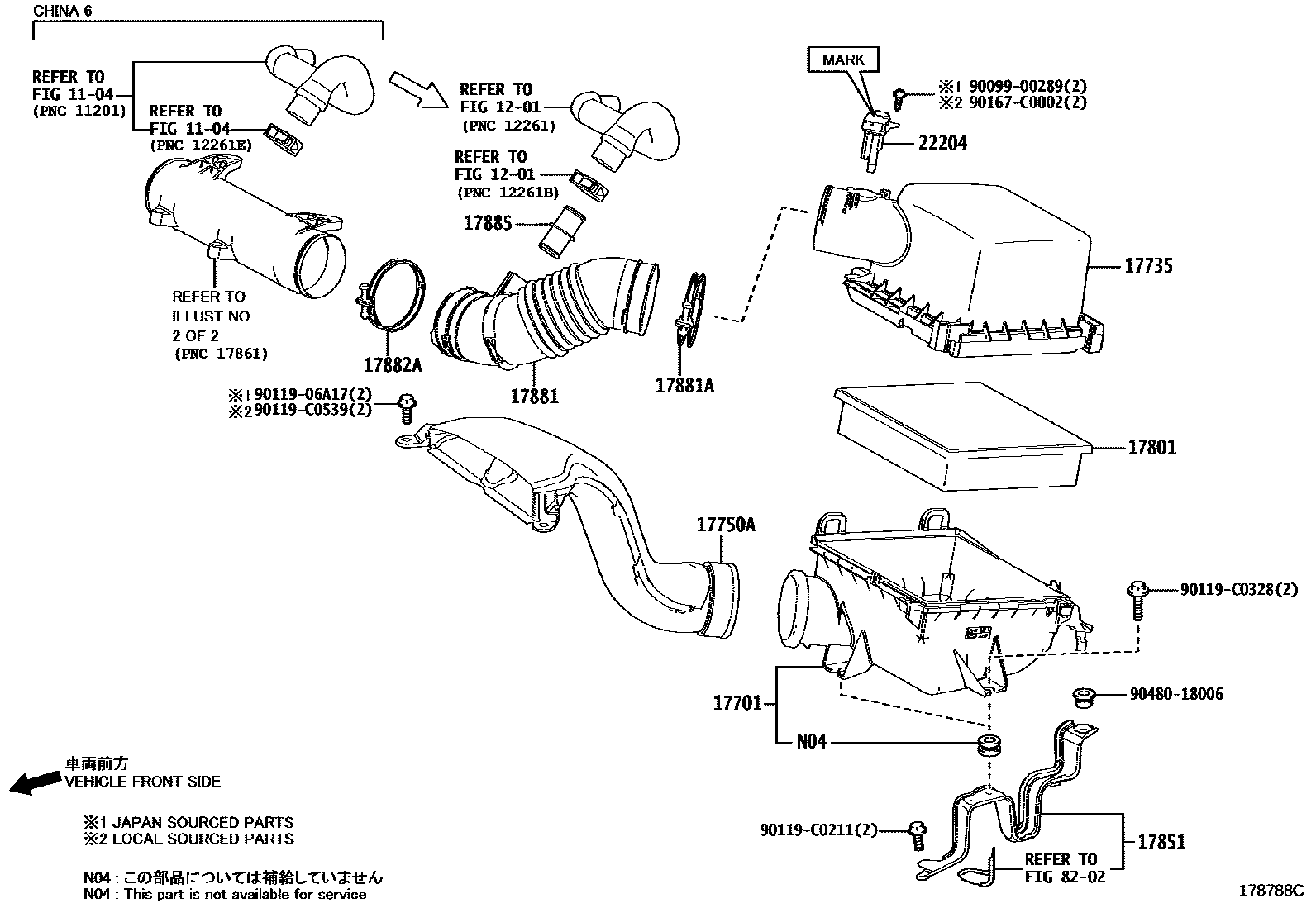

AIR CLEANER

0001 1AIR CLEANER SIDE 0002 1INTERCOOLER SIDE 0003 1

1104

1201

17701CASE SUB-ASSY, AIR CLEANER

main17701-0P130i2GRFE..GSU55201503-201710

main17701-0V140i8ARFTS..ASU5#201503-201803

17735CAP, AIR CLEANER

main17735-0P150i2GRFE..GSU55201503-201710

main17735-0V140i8ARFTS..ASU5#201503-202004

main17735-0V150i8ARFTS..ASU5#201810-202004

EXHAUST EMISSION CONTROL-CHINA 6

main17735-0V150i8ARFTS..ASU5#202004

17750AINLET ASSY, AIR CLEANER

main17750-0V120i8ARFTS..ASU5#201503-201803

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0P080i2GRFE..GSU55201503-201803

(L)

main17801-31131i8ARFTS..ASU5#201503-201803

(J)

17851BRACKET, AIR CLEANER SUPPORT

main17850-0P010i2GRFE..GSU55201503-201710

main17851-0V070i8ARFTS..ASU5#201503-201803

17881HOSE, AIR CLEANER, NO.1

main17881-0P180i2GRFE..GSU55201503-201710

main17881-0V210i8ARFTS..ASU5#201503-201803

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10900i8ARFTS..ASU5#201503-201803

17882HOSE, AIR CLEANER, NO.2

main17882-0V020i8ARFTS..ASU5#201503-201803

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10900i2GRFE..GSU55201503-201803

17885PIPE, AIR CLEANER

main17885-36030i8ARFTS..ASU5#201503-201510

main17885-36040i8ARFTS..ASU5#201511-201803

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i8ARFTS..ASU5#201503-201803

MARK 22204-0T040

sub22204-28010

main22204-0V020i2GRFE..GSU55201503-201803

MARK 22204-0V020

main22204-28010i2GRFE..GSU55201503-201803

MARK 22204-28010

8202

9009900289

main90099-00289

9011906A17

main90119-06A17

90119C0211

main90119-C0211

90119C0328

main90119-C0328

90119C0539

main90119-C0539

90167C0002

main90167-C0002

9048018006

main90480-18006

21 parts on this diagram · 3 diagrams in section
