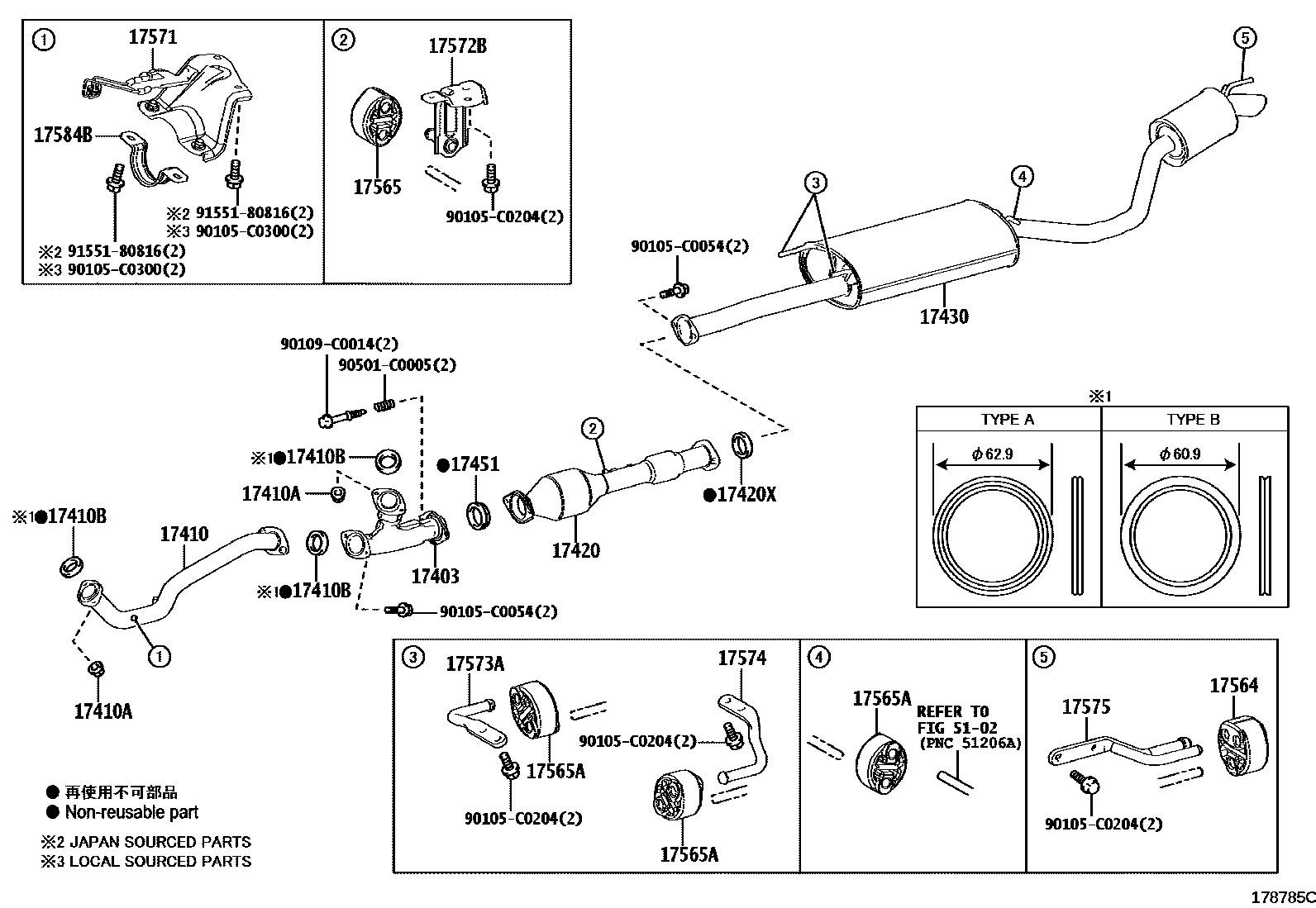

EXHAUST PIPE
17403PIPE SUB-ASSY, EXHAUST, FRONT NO.3
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
(L)
(J)
17410BGASKET, EXHAUST PIPE
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17564SUPPORT,EXHAUST PIPE, NO.4
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
17584BBRACKET, EXHAUST PIPE NO.1 SUPPORT
5102
90105C0054
main90105-C0054
90105C0204
main90105-C0204
90105C0300
main90105-C0300
90109C0014
main90109-C0014
90501C0005
main90501-C0005
9155180816
main91551-80816
24 parts on this diagram · 4 diagrams in section
