RADIATOR & WATER OUTLET

0001 1RADIATOR 0002 1RADIATOR SIDE 0003 1ENGINE SIDE PIPING(1/3) 0004 1ENGINE SIDE PIPING(2/3) 0005 1ENGINE SIDE PIPING(3/3) 0006 1INTERCOOLER SIDE 0007 1 0008 1

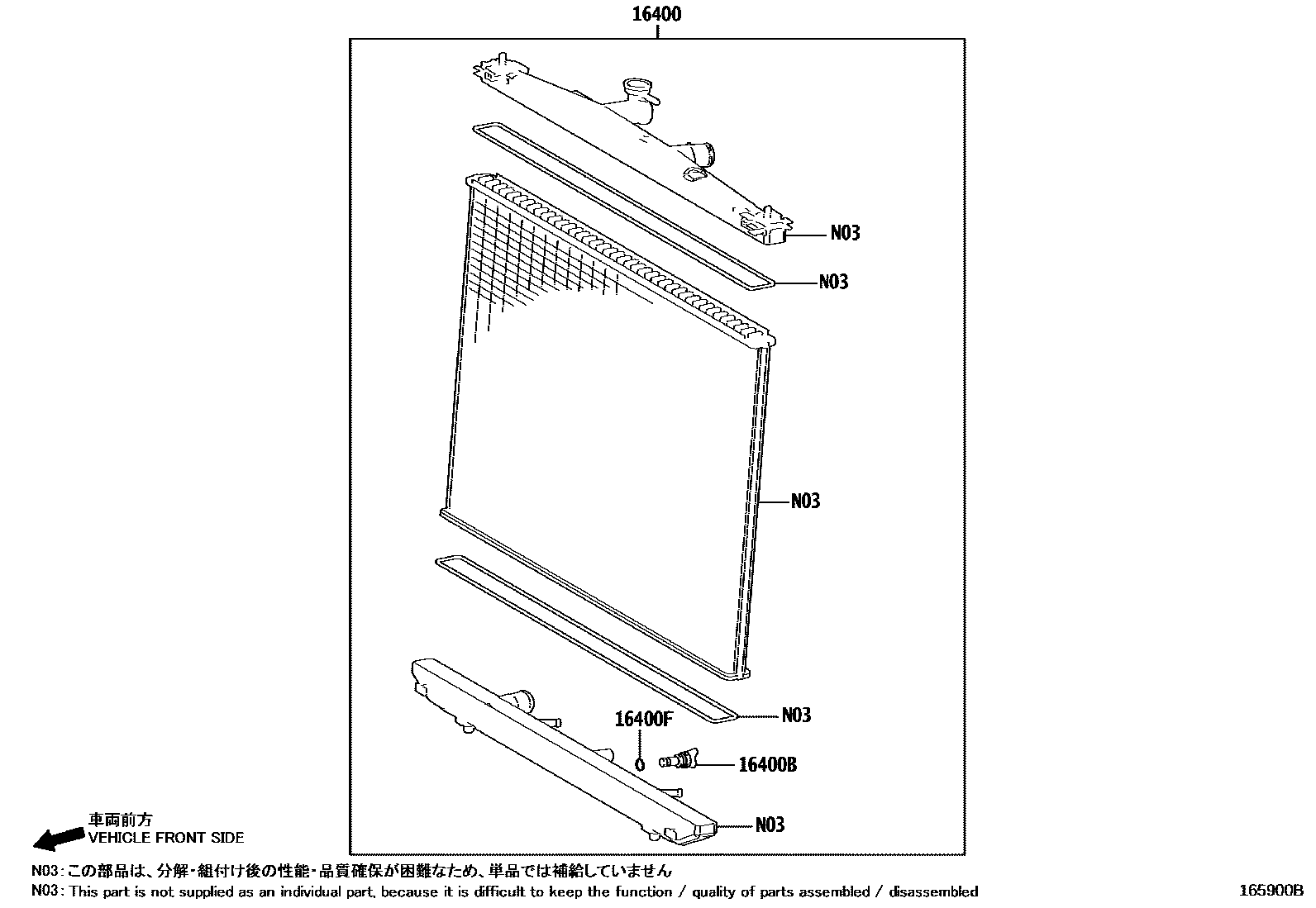

16400RADIATOR ASSY

main16400-0P340i2GRFE..GSU55201503-201710

main16400-0V100i8ARFTS..ASU5#201503-201803

16400BPLUG, RADIATOR DRAIN COCK

main16417-0H290i8ARFTS..ASU5#201503-201803

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-0T270i8ARFTS..ASU5#201707-201803

main16492-21050i2GRFE..GSU55201503-201707

3 parts on this diagram · 8 diagrams in section
