WATER PUMP

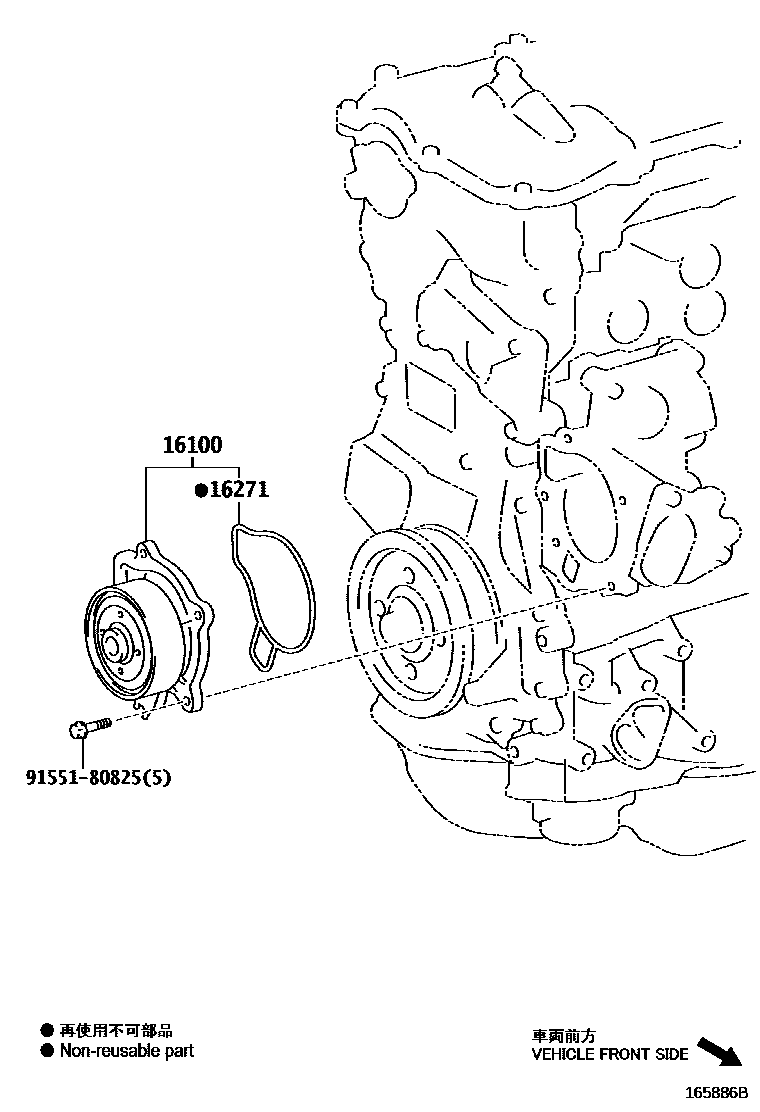

Parts diagram

16100PUMP ASSY, ENGINE WATER

main16100-39456i201503-201710

main16100-39595i201503-201803

16271GASKET, WATER PUMP

main16271-31030i201503-201710

main16271-36040i201503-201803

9155180825

main91551-80825

3 parts on this diagram · 2 diagrams in section
