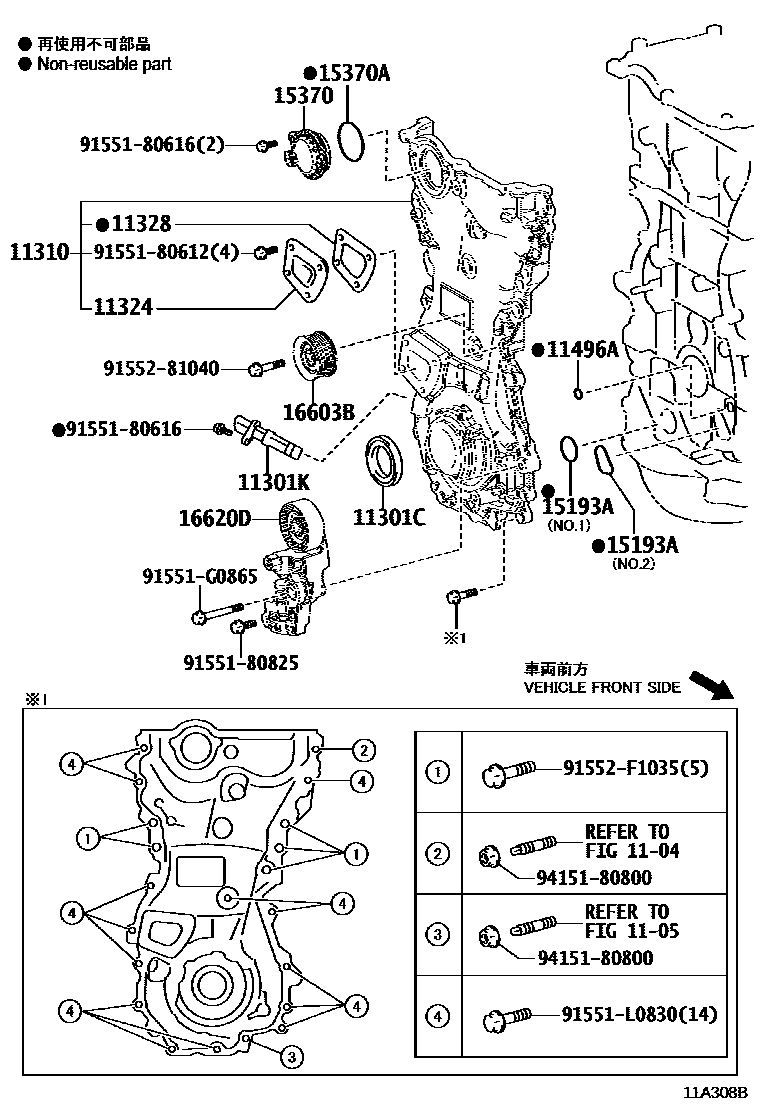

TIMING GEAR COVER & REAR END PLATE
1104
1105
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301KSENSOR, CRANK POSITION
11310COVER ASSY, TIMING CHAIN
11324PLATE, TIMING CHAIN COVER
11328GASKET, TIMING GEAR OR CHAIN COVER
11496AGASKET, OIL HOLE COVER
15193AGASKET, OIL PUMP
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
15370SOLENOID ASSY, CAM TIMING OIL CONTROL
15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
16603BPULLEY SUB-ASSY, IDLER
16620DTENSIONER ASSY, V-RIBBED BELT
9155180612
9155180616
9155180825
91551G0865
91551L0830
9155281040
91552F1035
9415180800
21 parts on this diagram · 2 diagrams in section
