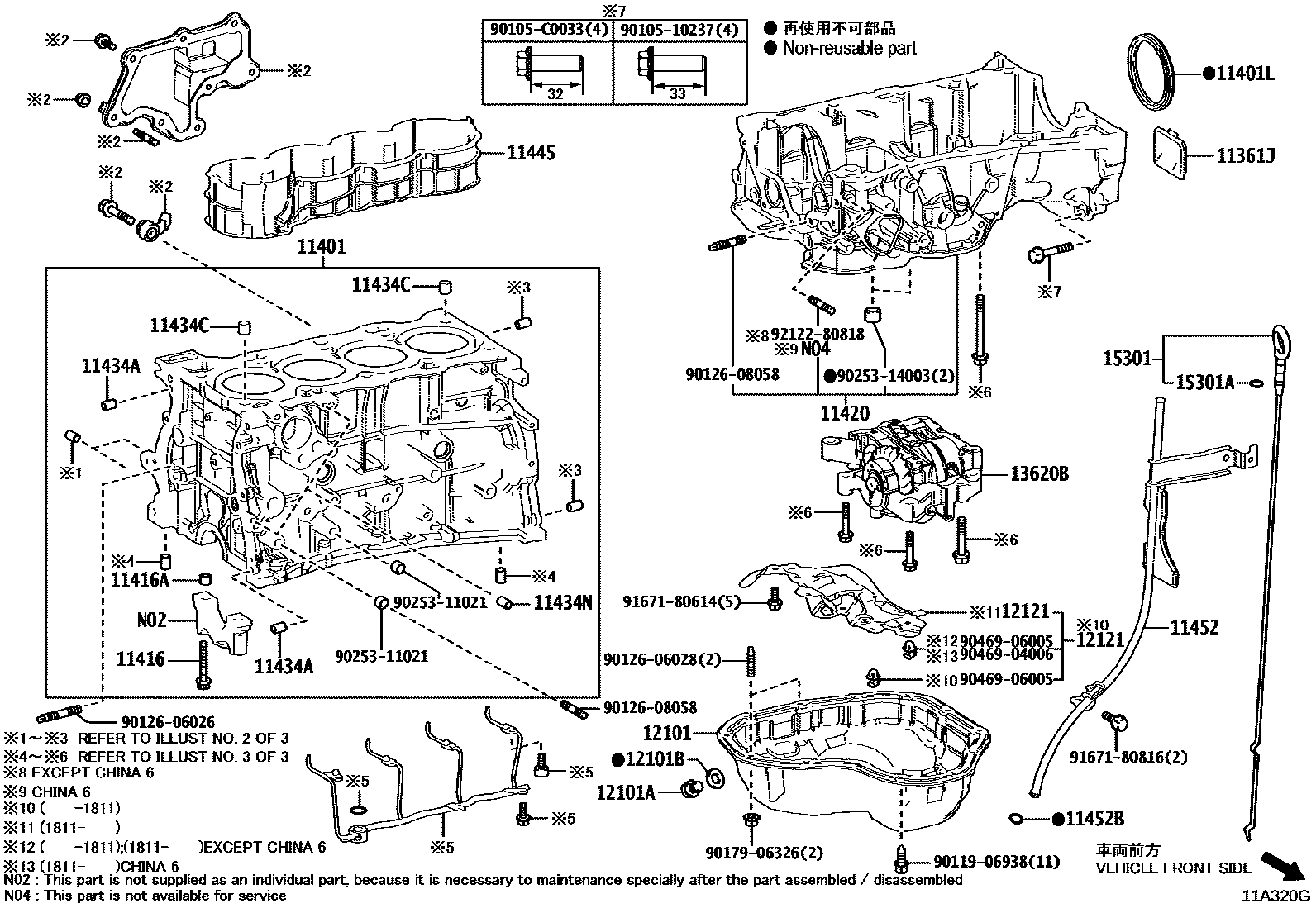

CYLINDER BLOCK

0001 1CYLINDER BLOCK 0002 1FITTING PARTS(1/2) 0003 1FITTING PARTS(2/2) 0004 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-0V020i8ARFTS..ASU5#201607-201803

(L)

main11361-28010i8ARFTS..ASU5#201607-201803

(J)

main11361-28010i8ARFTS..ASU5#201503-201607

main11361-31060i2GRFE..GSU55201503-201710

11401BLOCK SUB-ASSY, CYLINDER

main11401-80826i2GRFE..GSU55201503-201710

sub11401-80A45

main11410-39195i8ARFTS..ASU5#201503-202110

sub11410-39255

main11410-39255i8ARFTS..ASU5#202110

11401LSEAL, ENGINE REAR OIL

main90311-89014i8ARFTS..ASU5#201503-201803

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02154i8ARFTS..ASU5#201503-201710

main90910-02197i8ARFTS..ASU5#201709-201803

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-14003i8ARFTS..ASU5#201503-201803

11420CRANKCASE ASSY, STIFFENING

main11420-36051i8ARFTS..ASU5#201503-202004

main11420-36080i8ARFTS..ASU5#202004

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i2GRFE..GSU55201503-201710

L=12,OD=4.0

main90250-06003i8ARFTS..ASU5#201503-201803

L=14,OD=6

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i2GRFE..GSU55201503-201710

L=18,OD=8

main90253-15001i8ARFTS..ASU5#201503-201803

L=14,OD=15

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003i8ARFTS..ASU5#201503-201803

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-36020i8ARFTS..ASU5#201503-201803

11452GUIDE, OIL LEVEL GAGE

main11452-31060i2GRFE..GSU55201503-201710

main11452-36040i8ARFTS..ASU5#201503-201803

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i2GRFE..GSU55201503-201710

main96723-19010i8ARFTS..ASU5#201503-201803

12101PAN SUB-ASSY, OIL

main12101-31121i2GRFE..GSU55201503-201710

main12101-36080i8ARFTS..ASU5#201503-202004

main12101-36110i8ARFTS..ASU5#202004

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2GRFE..GSU55201503-201803

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2GRFE..GSU55201503-201803

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-31070i2GRFE..GSU55201503-201504

main12121-31120i2GRFE..GSU55201504-201710

main12121-36060i8ARFTS..ASU5#201503-201811

main12121-36061i8ARFTS..ASU5#201811

13620BBALANCER ASSY, ENGINE

main13620-36040i8ARFTS..ASU5#201503-201705

sub13620-36041

main13620-36041i8ARFTS..ASU5#201706-201803

15301GAGE SUB-ASSY, OIL LEVEL

main15301-31100i2GRFE..GSU55201503-201710

main15301-36060i8ARFTS..ASU5#201503-201803

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i8ARFTS..ASU5#201503-201803

9010510237

main90105-10237

90105C0033

main90105-C0033

9011906938

main90119-06938

9012606026

main90126-06026

9012606028

main90126-06028

9012608058

main90126-08058

9017906326

main90179-06326

9025311021

main90253-11021

9025314003

main90253-14003

9046904006

main90469-04006

9046906005

main90469-06005

9167180614

main91671-80614

9167180816

main91671-80816

9212280818

main92122-80818

33 parts on this diagram · 4 diagrams in section
