STANDARD TOOL

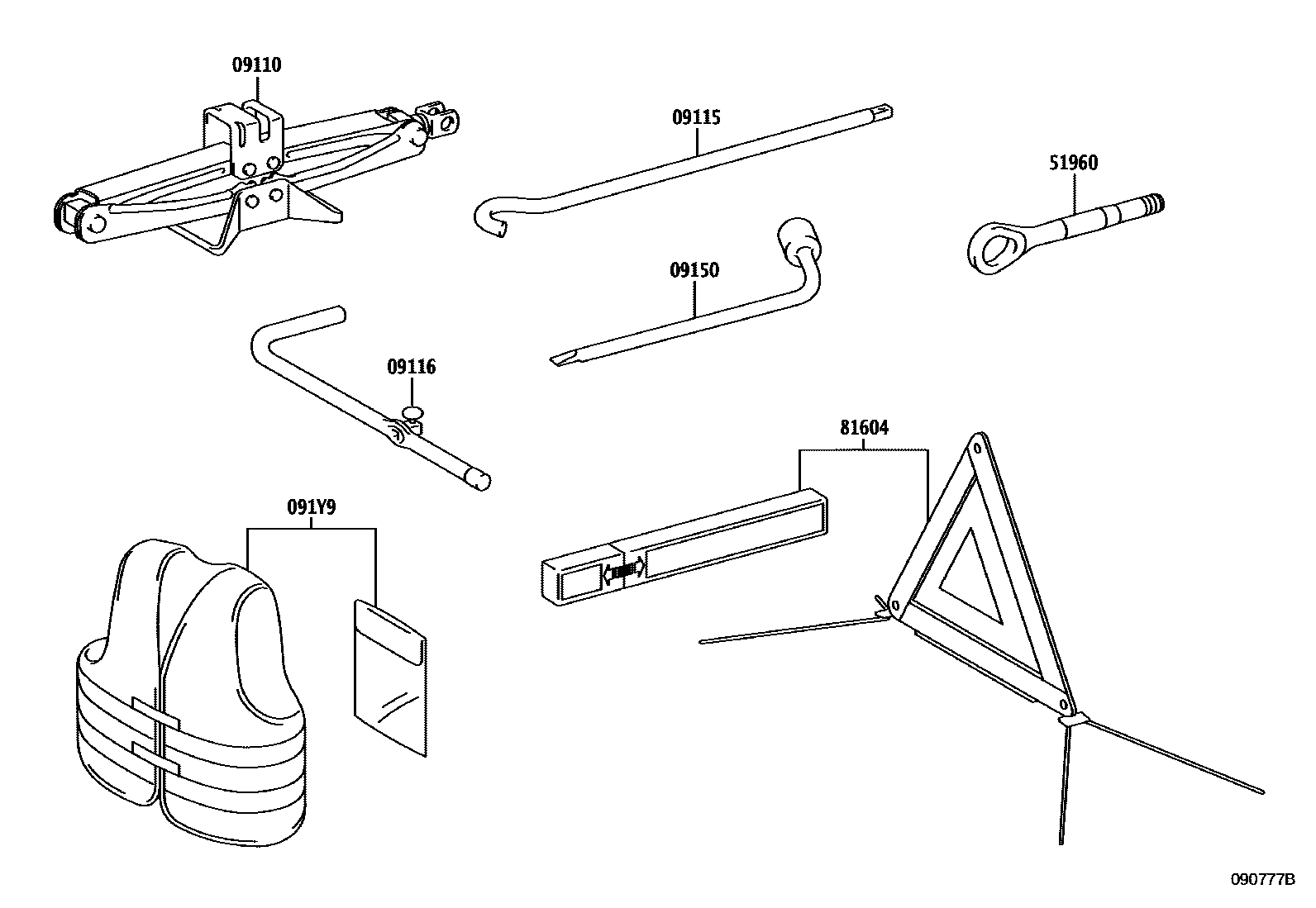

Parts diagram

09110JACK ASSY

main09111-0E040i201503-201803

09115ROD SUB-ASSY, JACK HANDLE

main09115-48010i201503-201803

09116LEVER, JACK HANDLE

main09116-48010i201503-201803

09150WRENCH, HUB NUT BOX

main09150-0D020i201503-201803

091Y9JACKET, W/REFLECTOR

main091Y9-02010i201712-201803

51960HOOK ASSY, FRONT

main51961-0E030i201503-201803

main51961-0E110i201803-201811

81604REFLECTOR SET, TRIANGLE

main81604-0E010i201503-201803

7 parts on this diagram · 1 diagram in section
