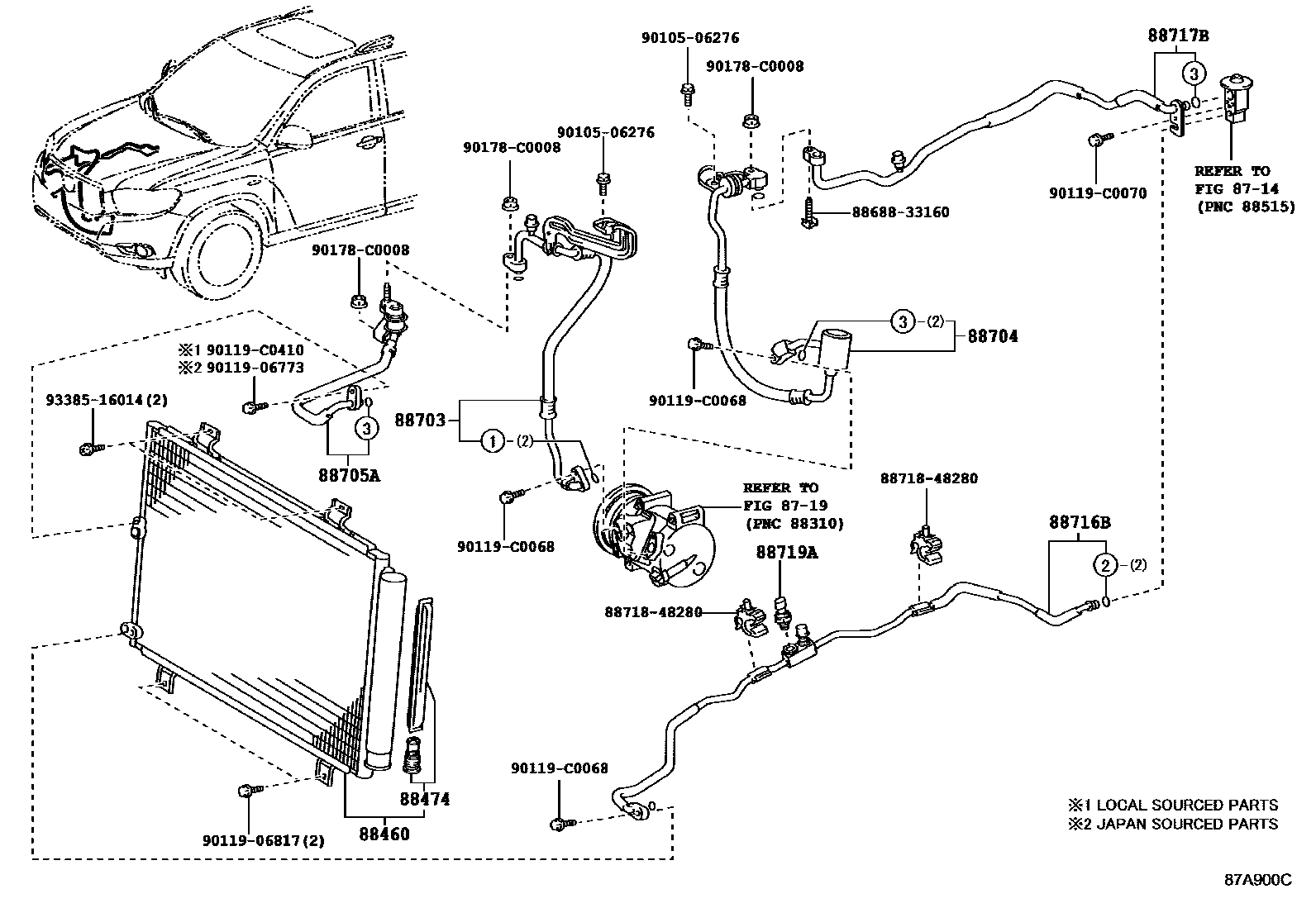

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT---W/O(REAR COOLER) 0002 1FRONT---W/O(REAR COOLER) 0003 1FRONT---W(REAR COOLER) 0004 1FRONT---W(REAR COOLER) 0005 1FRONT 0006 1FRONT 0007 1REAR 0008 1O-RING

8714

8719

88460CONDENSER ASSY, COOLER

main88460-0E040iASU40,GSU45200905-201205

main88460-0E060iASU40,GSU45201205-201503

sub88460-0E040

88474DRYER, COOLER

main88474-17010iASU40,GSU45200905-201205

88703HOSE SUB-ASSY, DISCHARGE

main88703-0E040iGSU45200905-201205

main88703-0E050iASU40200905-201205

main88703-0E090iGSU45201205

88704HOSE SUB-ASSY, SUCTION

main88704-0E040iGSU45200905-201205

main88704-0E050iASU40200905-201205

main88704-0E090iGSU45201205

88705ATUBE SUB-ASSY, DISCHARGE

main88705-0E040iASU40,GSU45200905-201205

main88705-0E070iASU40,GSU45201205

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-0E110iASU40,GSU45200905-201205

main88716-0E120iASU40..D,SPO200905-201205

WITHOUT(REAR NO.2 SEAT)

main88716-0E200iASU40,GSU45201205

main88716-0E210iASU40..D,SPO201205

WITHOUT(REAR NO.2 SEAT)

88717PIPE, COOLER REFRIGERANT SUCTION, NO.1

main88717-0E070iASU40,GSU45200905-201205

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-0E050iASU40,GSU45200905-201205

main88717-0E060iASU40..D,SPO200905-201205

WITHOUT(REAR NO.2 SEAT)

main88717-0E150iASU40,GSU45201205

main88717-0E160iASU40..D,SPO201205

WITHOUT(REAR NO.2 SEAT)

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iASU40,GSU45200905-201205

8868833160BRACKET, COOLER DIAPHRAGM

main88688-33160

8871848280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48280

9010506276

main90105-06276

9011906773

main90119-06773

9011906817

main90119-06817

90119C0068

main90119-C0068

90119C0070

main90119-C0070

90119C0410

main90119-C0410

90178C0008

main90178-C0008

9338516014

main93385-16014

21 parts on this diagram · 8 diagrams in section
