HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL---FRONT 0002 1CONTROL---REAR 0003 1AIR DUCT---FRONT 0004 1AIR DUCT---REAR 0005 1SENSOR

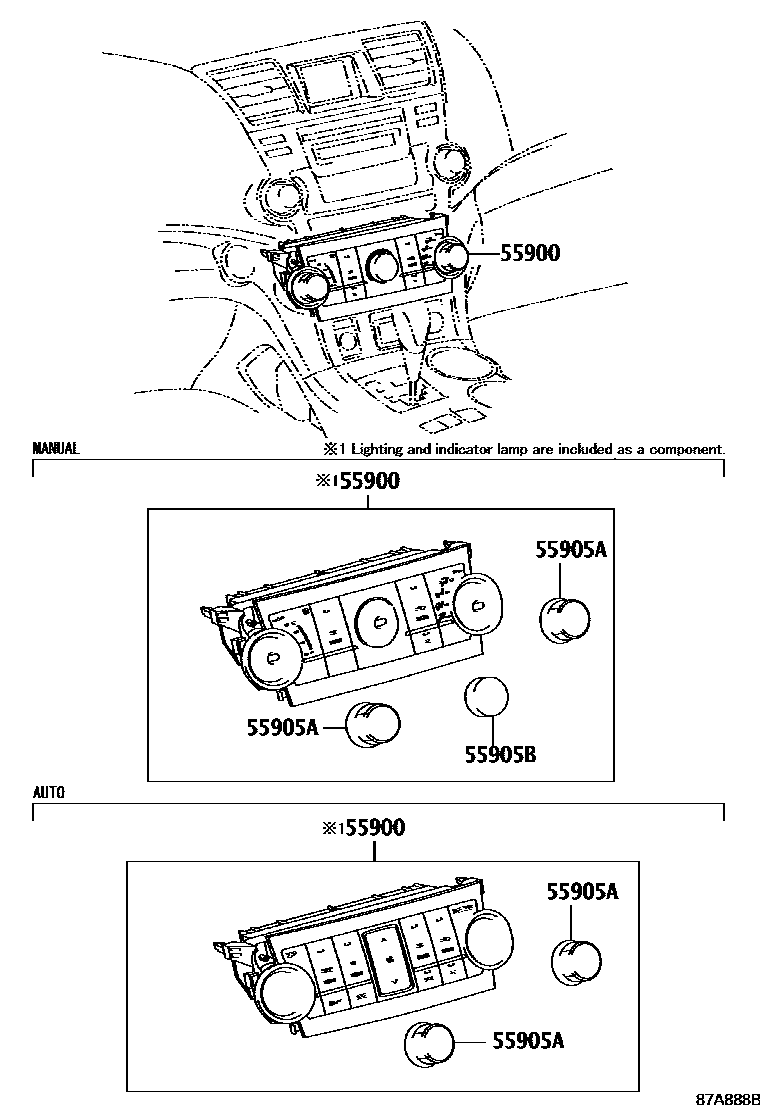

55900CONTROL ASSY, AIR CONDITIONER

main55900-0E030iASU40..SPO200905-201002

REAR AIR CONDITIONER-WITHOUT

sub55900-0E031

main55900-0E031iASU40..D201003-201205

REAR AIR CONDITIONER-WITHOUT

main55900-0E040iASU40,GSU45..D200905-201002

sub55900-0E041

main55900-0E041iASU40,GSU45..D201003-201205

main55900-0E060iASU40,GSU45..SPO200905-201002

sub55900-0E061

main55900-0E061iASU40,GSU45..SPO201003-201205

main55900-0E070iASU40,GSU45..LIMD200905-201002

sub55900-0E071

main55900-0E071iASU40,GSU45..LIMD201003-201205

main55900-0E320iASU40..D201205

WITHOUT(REAR NO.2 SEAT)

main55900-0E330iASU40,GSU45..D201205

main55900-0E340iASU40,GSU45..SPO201205

main55900-0E350iASU40,GSU45..LIMD201205

55905AKNOB, HEATER CONTROL

main55925-0E020iASU40,GSU45200905-201205

main55925-0E050iASU40,GSU45201205

55905BKNOB, HEATER CONTROL, NO.2

main55925-0E030iASU40,GSU45..D200905-201205

REAR AIR CONDITIONER-WITHOUT

main55925-0E030iASU40,GSU45..D201205

WITHOUT(REAR NO.2 SEAT)

3 parts on this diagram · 5 diagrams in section
