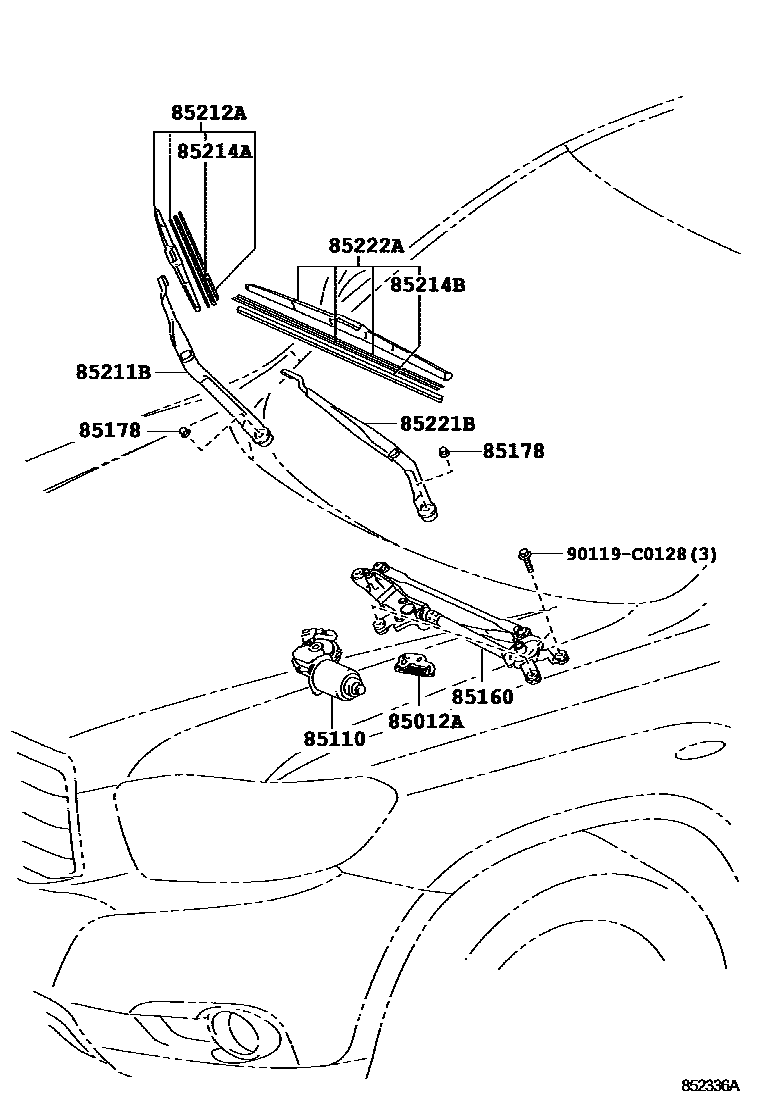

WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-28010iASU40,GSU45200905-201205

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-48120iASU40,GSU45200905-201205

85160LINK ASSY, WINDSHIELD WIPER

main85150-0E030iASU40,GSU45200905-201205

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005iASU40,GSU45200905-201205

85211BARM, FRONT WIPER, RH

main85211-0E030iASU40,GSU45200905-201210

sub85211-0E031

main85211-0E031iASU40,GSU45201211

85212ABLADE, FR WIPER, RH

main85212-06120iASU40,GSU45200909-201205

main85212-0E030iASU40,GSU45200905-200908

sub85212-06120

85214ARUBBER, WIPER, RH

main85214-0E060iASU40,GSU45200905-200908

main85214-53090iASU40,GSU45200909-201205

85214BRUBBER, WIPER, LH

main85214-0E100iASU40,GSU45200905-201205

85221BARM, FRONT WIPER, LH

main85221-0E030iASU40,GSU45200905-201205

85222ABLADE, FR WIPER, LH

main85222-0E030iASU40,GSU45200905-201205

90119C0128

main90119-C0128

11 parts on this diagram · 1 diagram in section
