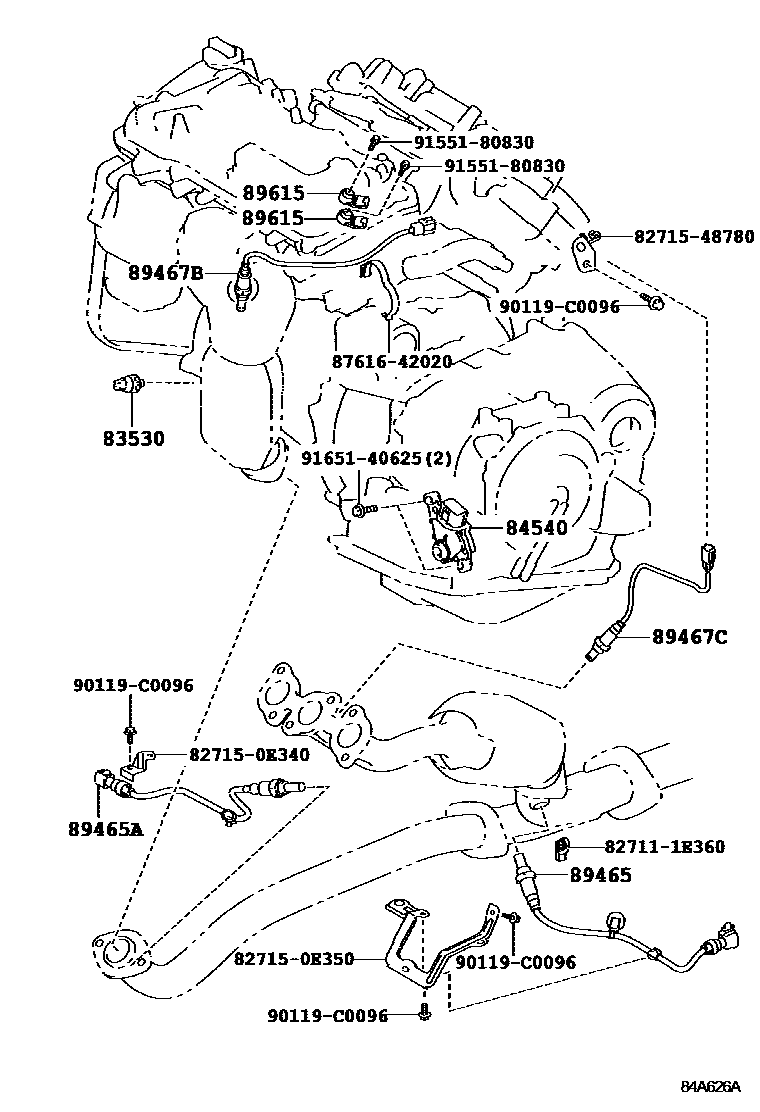

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1COWL 0007 1INSTRUMENT PANEL 1/2 0008 1INSTRUMENT PANEL 2/2 0009 1STEERING 0010 1SEAT 0011 1DOOR,ROOF,FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iASU40,GSU45200905-201503

DENSO

main83530-60020iASU40200905-201503

YAZAKI

main83530-60020iASU40201502-201503

84540SWITCH ASSY, NEUTRAL START

main84540-33010iASU40200905-201503

main84540-42010iGSU45200905-201503

89465SENSOR, OXYGEN

main89465-0E070iGSU45200905-201205

main89465-48250iASU40200905-201111

main89465-48260iASU40201111-201205

89465ASENSOR, OXYGEN NO.2

main89465-0E060iGSU45200905-201205

89467BSENSOR, AIR FUEL RATIO

main89467-06170iASU40201111-201205

main89467-0E050iGSU45200905-201205

main89467-0E070iASU40200905-201111

main89467-0E150iGSU45201205

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-0E060iGSU45200905-201205

main89467-0E160iGSU45201205

89615SENSOR, KNOCK CONTROL

main89615-20090iASU40200905-201205

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

827150E340BRACKET,WIRING HARNESS CLAMP

main82715-0E340

827150E350BRACKET,WIRING HARNESS CLAMP

main82715-0E350

8271548780BRACKET,WIRING HARNESS CLAMP

main82715-48780

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

90119C0096

main90119-C0096

9155180830

main91551-80830

9165140625

main91651-40625

15 parts on this diagram · 11 diagrams in section
