WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE 0004 1ENGINE 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1DOOR 0008 1FLOOR,FRAME & ROOF 0009 1FLOOR,FRAME & ROOF 0010 1SEAT 0011 1CLAMP & BRACKET 0012 1CABLE BOND 0013 1CONNECTOR 1/2 0014 1CONNECTOR 2/2

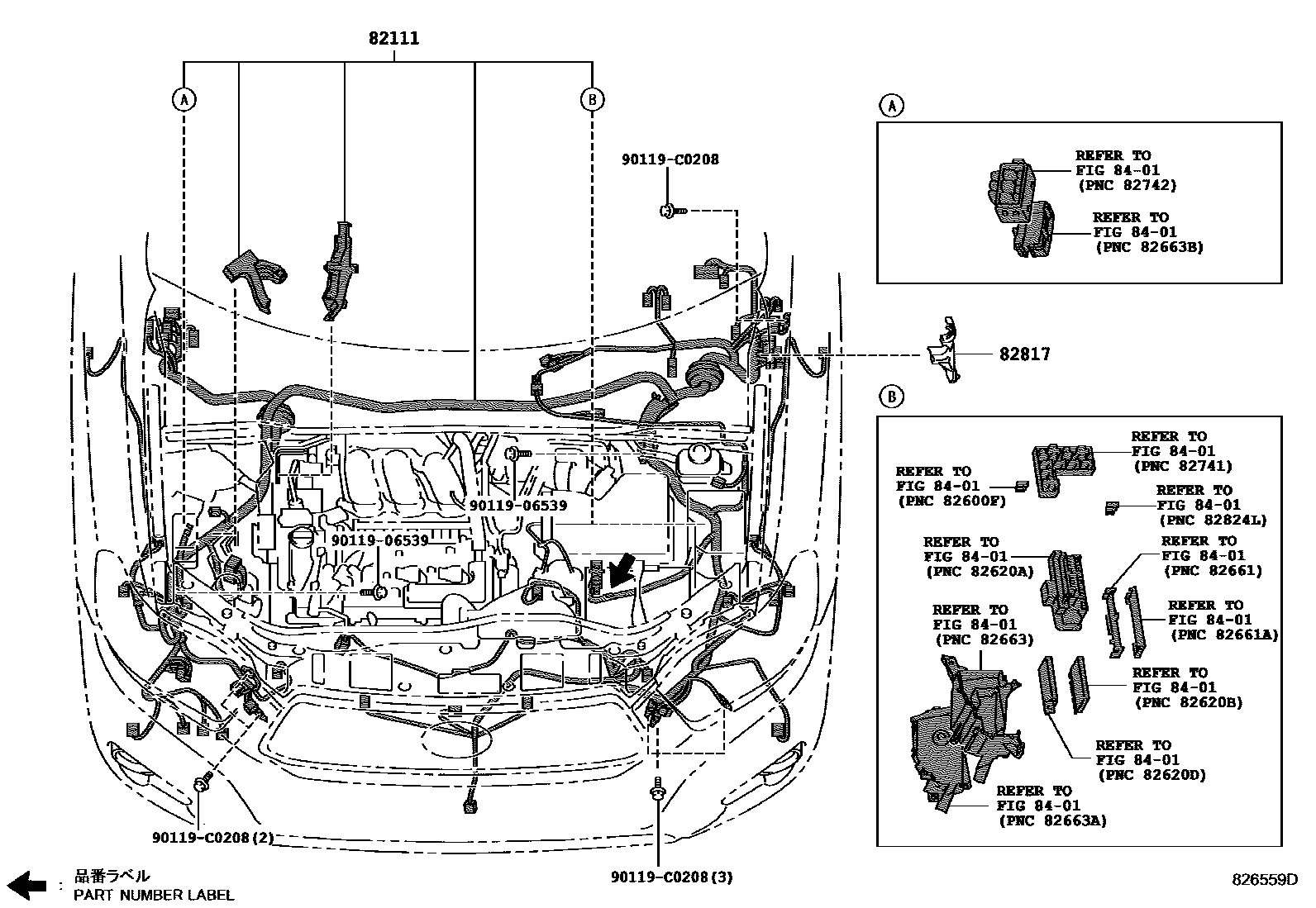

82111WIRE, ENGINE ROOM MAIN

main82111-0E390iGSU45..D,SPO200905-201205

main82111-0E400iGSU45..LIMD200905-201205

main82111-0E430iASU40..LIMD200905-201205

main82111-0E680iGSU45..D,SPO201205

main82111-0E690iGSU45..LIMD201205

main82111-0E720iASU40..LIMD201205

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-0E090iASU40,GSU45200905-201205

8401

9011906539

main90119-06539

90119C0208

main90119-C0208

5 parts on this diagram · 14 diagrams in section
