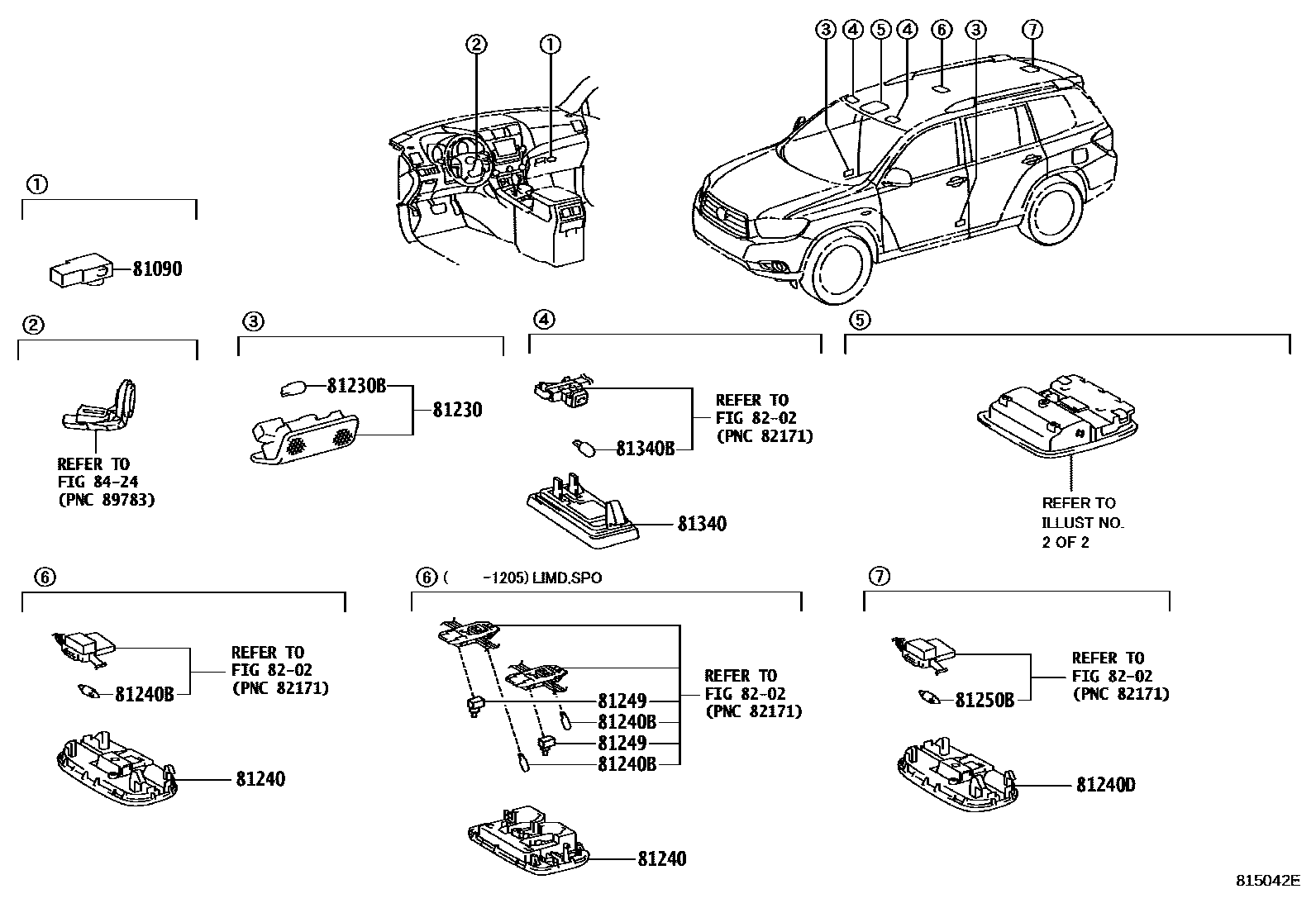

INTERIOR LAMP

0001 1 0002 1

81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81080-48010iASU40,GSU45200905-201205

81230LAMP ASSY, COURTESY

main81230-06020×2iASU40,GSU45200905-201205

81230BBULB(FOR COURTESY LAMP)

main90981-12010×2iASU40,GSU45200905-200911

12V 5W

main90981-CC001×2iASU40,GSU45200912-201205

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-60060-B1iASU40,GSU45..LIMD,SPO201205-201503

GRAY,TRIM2#

sub81240-12100

main81240-60060-E0iASU40,GSU45..D200905-201205

SAND BEIGE,TRIM4#

sub81240-12100

main81260-48290-B0iASU40,GSU45..LIMD,SPO200905-201205

GRAY,TRIM2#

main81260-48290-E0iASU40,GSU45..LIMD,SPO200905-201205

SAND BEIGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iASU40,GSU45..D200905-201205

12V 8W

main99132-12050×2iASU40,GSU45..LIMD,SPO200905-201205

12V 5W

81240DLAMP ASSY, ROOM, NO.2

main81240-60060-B1iASU40,GSU45..LIMD,SPO200905-201205

GRAY,TRIM2#

sub81240-12100

main81240-60060-E0iASU40,GSU45201205-201503

SAND BEIGE,TRIM4#

sub81240-12100

81249SWITCH, ROOM LAMP

main84532-58010×2iASU40,GSU45..LIMD,SPO200905-201205

81250BBULB, ROOM LAMP, NO.2

main90981-14011iASU40,GSU45201205

12V 8W

81340LAMP ASSY, VANITY

main81340-0F010×2iASU40,GSU45201309

main81340-30100-B1×2iASU40,GSU45..LIMD,SPO201205-201309

GRAY,TRIM2#

main81340-30100-E2×2iASU40,GSU45201205-201309

SAND BEIGE,TRIM4#

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iASU40,GSU45200905-201205

12V 8W

8202

8424

12 parts on this diagram · 2 diagrams in section
