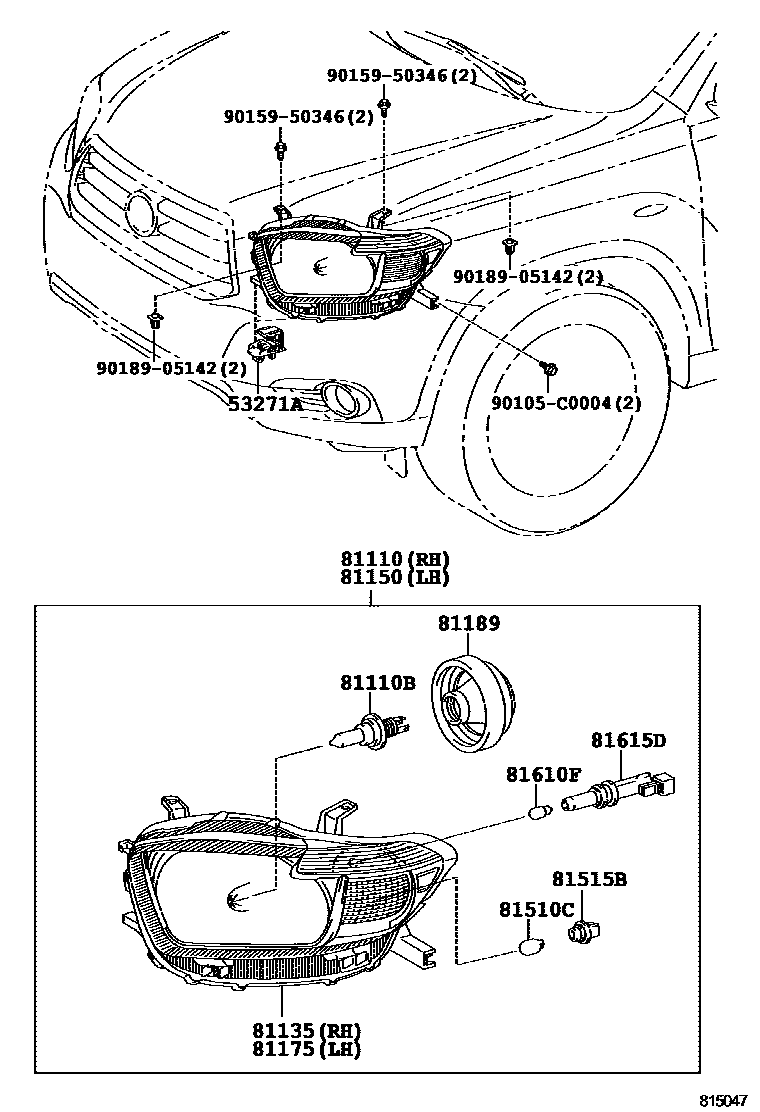

HEADLAMP

0001 1 0002 1

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060×2iASU40,GSU45200905-201205

81110HEADLAMP ASSY, RH

main81110-0E070iASU40,GSU45..D,LIMD200905-201205

main81110-0E080iASU40,GSU45..SPO200905-201205

main81110-0E120iASU40,GSU45201205-201409

main81110-0E121iASU40,GSU45201410-201501

main81110-0E122iASU40,GSU45201502-201503

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iASU40,GSU45201205-201503

12V65W(SAE),60W(ECE)

main90981-13058×2iASU40,GSU45200905-201205

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-0E070iASU40,GSU45..D,LIMD200905-201205

main81130-0E080iASU40,GSU45..SPO200905-201205

main81130-0E120iASU40,GSU45201205-201410

main81130-0E121iASU40,GSU45201410-201502

main81130-0E122iASU40,GSU45201502-201503

81150HEADLAMP ASSY, LH

main81150-0E070iASU40,GSU45201205-201409

main81150-0E071iASU40,GSU45201410-201501

main81150-0E072iASU40,GSU45201502-201503

main81150-0E090iASU40,GSU45..D,LIMD200905-201205

main81150-0E100iASU40,GSU45..SPO200905-201205

81175UNIT ASSY, HEADLAMP, LH

main81170-0E070iASU40,GSU45201205-201410

main81170-0E071iASU40,GSU45201410-201502

main81170-0E072iASU40,GSU45201502-201503

main81170-0E090iASU40,GSU45..D,LIMD200905-201205

main81170-0E100iASU40,GSU45..SPO200905-201205

81189COVER, HEADLAMP

main90075-65002×2iASU40,GSU45200905-201205

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iASU40,GSU45200905-201205

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iASU40,GSU45200905-201205

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iASU40,GSU45200905-201205

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90069-81081×2iASU40,GSU45200905-201205

main90075-60077×2iASU40,GSU45201205-201503

90105C0004

main90105-C0004

9015950346

main90159-50346

9018905142

main90189-05142

14 parts on this diagram · 2 diagrams in section
