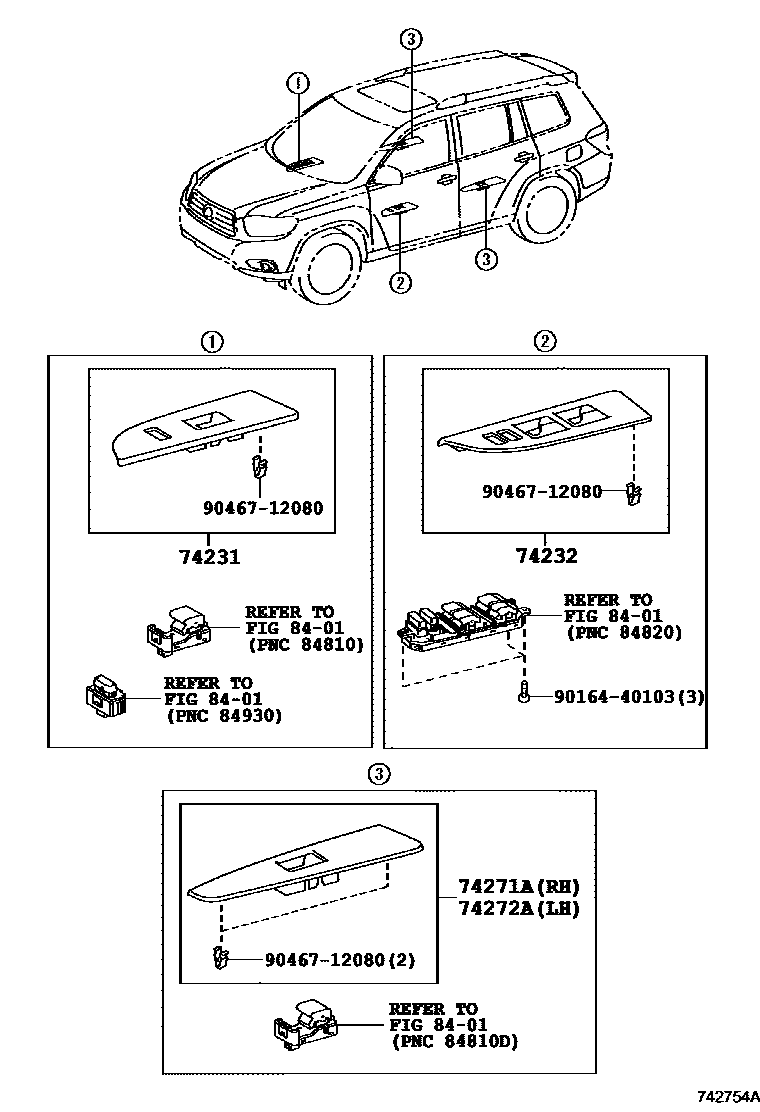

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0E020-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main74231-0E020-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0E020-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main74232-0E020-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-0E020-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main74271-0E020-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-0E020-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main74272-0E020-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

8401

9016440103

main90164-40103¥70

9046712080

main90467-12080¥60

7 parts on this diagram · 2 diagrams in section
