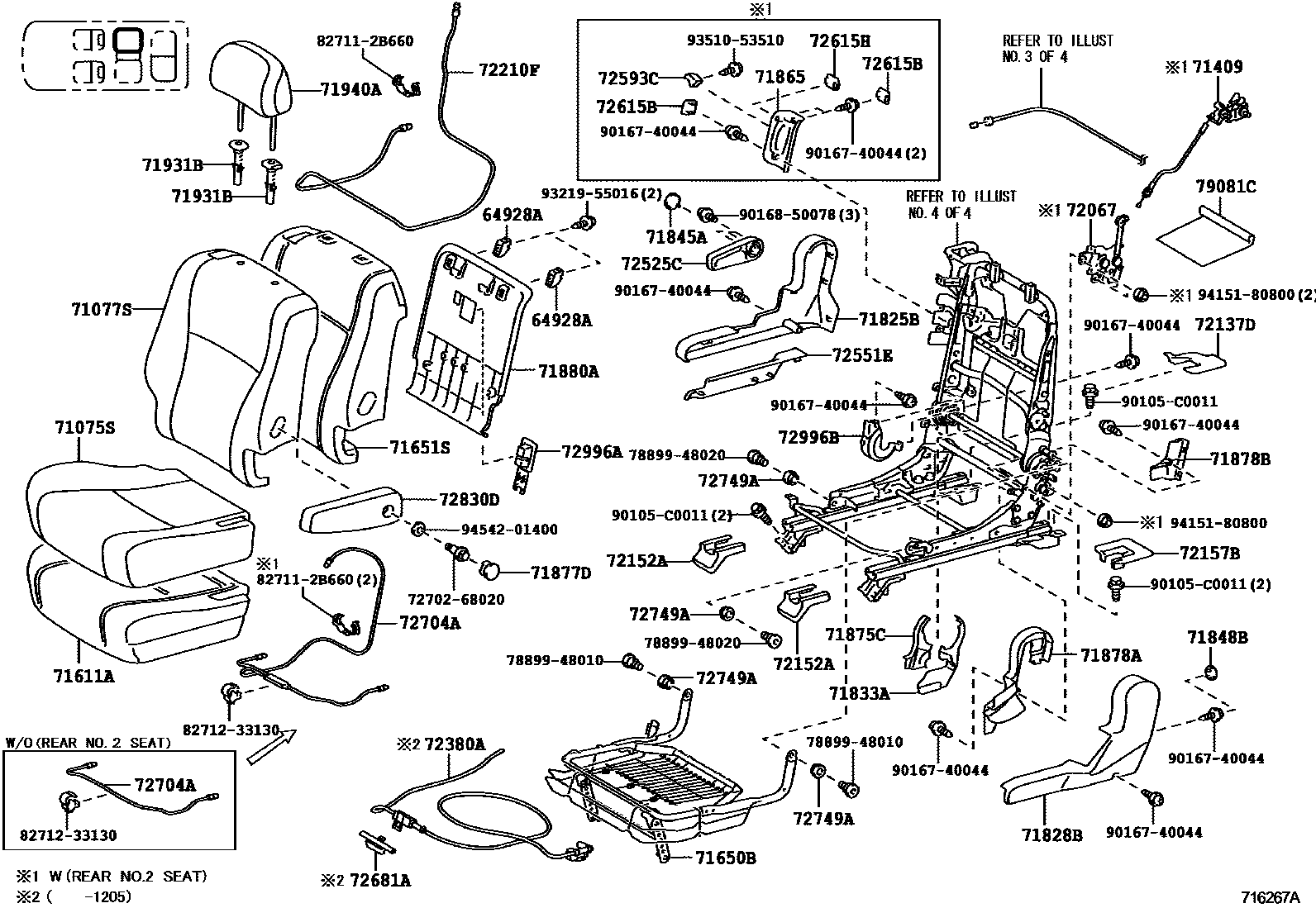

REAR SEAT & SEAT TRACK

0001 1REAR NO.1 SEAT,RH 0002 1REAR NO.1 SEAT,CENTER 0003 1REAR NO.1 SEAT,LH 0004 1REAR NO.1 SEAT,FRAME 0005 1REAR NO.2 SEAT 0006 1REAR NO.2 SEAT,MAIN 0007 1REAR NO.2 SEAT,FRAME

64928AHOLDER, TONNEAU COVER HOOK

main64928-0E040-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main64928-0E040-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

main71075-0E050-E1iASU40,GSU45..D200905-201011

SAND BEIGE,TRIM4#

sub71075-0E051

main71075-0E051-E1iASU40,GSU45..D201011-201503

SAND BEIGE,TRIM4#

main71075-0E060-C1iASU40,GSU45..LIMD,SPO200905-201011

BLACK,TRIM2#

sub71075-0E061

main71075-0E060-E1iASU40,GSU45..LIMD,SPO200905-201011

SAND BEIGE,TRIM4#

sub71075-0E061

main71075-0E061-C1iASU40,GSU45..LIMD,SPO201011-201503

BLACK,TRIM2#

main71075-0E061-E1iASU40,GSU45..LIMD,SPO201011-201503

SAND BEIGE,TRIM4#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-0E050-E1iASU40..D200905-201011

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

sub71077-0E051

main71077-0E051-E1iASU40..D201011-201503

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

main71077-0E060-E1iASU40,GSU45..D200905-201011

SAND BEIGE,TRIM4#

sub71077-0E061

main71077-0E061-E1iASU40,GSU45..D201011-201503

SAND BEIGE,TRIM4#

main71077-0E070-C1iASU40,GSU45..LIMD,SPO200905-201011

BLACK,TRIM2#

sub71077-0E071

main71077-0E070-E1iASU40,GSU45..LIMD,SPO200905-201011

SAND BEIGE,TRIM4#

sub71077-0E071

main71077-0E071-C1iASU40,GSU45..LIMD,SPO201011-201503

BLACK,TRIM2#

main71077-0E071-E1iASU40,GSU45..LIMD,SPO201011-201503

SAND BEIGE,TRIM4#

main71077-0E200-C1iASU40..SPO200905-201011

WITHOUT(REAR NO.2 SEAT),BLACK,TRIM2#

sub71077-0E201

main71077-0E200-E1iASU40..SPO200905-201011

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

sub71077-0E201

main71077-0E201-C1iASU40..SPO201011-201503

WITHOUT(REAR NO.2 SEAT),BLACK,TRIM2#

main71077-0E201-E1iASU40..SPO201011-201503

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

71409STOPPER SUB-ASSY, REAR SEATBACK

main71409-48010iASU40,GSU45200905-201503

71611APAD, REAR SEAT CUSHION, RH

main71611-0E030iASU40,GSU45200905-201503

71650BSPRING ASSY, REAR SEAT CUSHION, RH

main71650-0E030iASU40,GSU45200905-201503

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-0E030iASU40..D,SPO200905-201503

WITHOUT(REAR NO.2 SEAT)

main71651-0E040iASU40,GSU45200905-201503

71825BMOULDING, REAR SEAT CUSHION, RH

main71825-0E030-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main71825-0E030-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

71828BMOULDING, REAR SEAT CUSHION, REAR RH

main71828-0E030-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main71828-0E030-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-0E010-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main71833-0E010-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

71845ACOVER, REAR SEAT RECLINING, UPPER RH

main71845-0E020-C0iASU40..SPO200905-201503

WITHOUT(REAR NO.2 SEAT),BLACK,TRIM2#

main71845-0E020-E0iASU40..D,SPO200905-201503

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

main71845-0E030-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main71845-0E030-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

71848BCAP, SEAT ADJUSTER COVER, RH

main71848-0E010-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main71848-0E010-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

71865BEZEL, REAR SEAT COVER, NO.1

main71865-0E020-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main71865-0E020-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

71875CCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-0E030-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main71875-0E030-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

71877DCOVER, REAR SEAT ARMREST HOLE

main71877-0E020-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main71877-0E020-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

71878ACOVER, REAR SEAT RECLINING, INNER RH

main71878-0E030-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main71878-0E030-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

71878BCOVER, REAR SEAT RECLINING, INNER RH

main71878-0E040-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main71878-0E040-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

71880ACARPET ASSY, REAR SEATBACK BOARD, RH

main71880-0E040-C0iASU40..SPO200905-201503

WITHOUT(REAR NO.2 SEAT),BLACK,TRIM2#

main71880-0E040-E0iASU40..D,SPO200905-201503

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

main71880-0E050-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main71880-0E050-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

71931BSUPPORT ASSY, REAR NO.1 SEAT HEADREST

main71930-02360-C0iASU40,GSU45..LIMD,SPO201204-201503

W(LOCK),BLACK,TRIM2#

sub71930-02360

main71930-02360-E2iASU40,GSU45201204-201503

W(LOCK),SAND BEIGE,TRIM4#

sub71930-02360

main71930-44020-C0iASU40,GSU45..LIMD,SPO200905-201203

W(LOCK),BLACK,TRIM2#

sub71930-44020

sub71930-02370

main71930-44020-E2iASU40,GSU45200905-201203

W(LOCK),SAND BEIGE,TRIM4#

sub71930-44020

sub71930-02370

main71931-02120-C0iASU40,GSU45..LIMD,SPO201204-201503

W/O(LOCK),BLACK,TRIM2#

sub71931-02120

main71931-02120-E2iASU40,GSU45201204-201503

W/O(LOCK),SAND BEIGE,TRIM4#

sub71931-02120

main71931-47010-C0iASU40,GSU45..LIMD,SPO200905-201203

W/O(LOCK),BLACK,TRIM2#

sub71931-47010

sub71931-42020

main71931-47010-E8iASU40,GSU45200905-201203

W/O(LOCK),SAND BEIGE,TRIM4#

sub71931-47010

sub71931-42020

71940AHEADREST ASSY, REAR SEAT

main71940-0E050-E0iASU40,GSU45..D200905-201205

SAND BEIGE,TRIM4#

sub71940-0E051

main71940-0E050-E2iASU40,GSU45..D201205-201411

SAND BEIGE,TRIM4#

sub71940-0E051

main71940-0E051-E2iASU40,GSU45..D201412-201503

SAND BEIGE,TRIM4#

main71940-0E060-C0iASU40,GSU45..LIMD,SPO200905-201205

BLACK,TRIM2#

sub71940-0E061

main71940-0E060-C1iASU40,GSU45..LIMD,SPO201205-201411

BLACK,TRIM2#

sub71940-0E061

main71940-0E060-E0iASU40,GSU45..LIMD,SPO200905-201205

SAND BEIGE,TRIM4#

sub71940-0E061

main71940-0E060-E1iASU40,GSU45..LIMD,SPO201205-201411

SAND BEIGE,TRIM4#

sub71940-0E061

main71940-0E061-C1iASU40,GSU45..LIMD,SPO201412-201503

BLACK,TRIM2#

main71940-0E061-E1iASU40,GSU45..LIMD,SPO201412-201503

SAND BEIGE,TRIM4#

72067LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH

main72067-48020iASU40,GSU45200905-201503

72137DCOVER, REAR SEAT TRACK, RH

main72137-0E040-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main72137-0E040-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

72152ACOVER, REAR SEAT TRACK BRACKET, INNER

main72152-0E030-C0iASU40..SPO200905-201503

WITHOUT(REAR NO.2 SEAT),BLACK,TRIM2#

main72152-0E030-E0iASU40..D,SPO200905-201503

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

main72152-0E040-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main72152-0E040-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

72157BCOVER, REAR SEAT TRACK BRACKET, INNER RH

main72157-0E020-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main72157-0E020-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

72210FCABLE ASSY, SEAT TRACK CONTROL

main72210-48010iASU40,GSU45200905-201503

72380ACABLE ASSY, SEAT ADJUSTER CONTROL, NO.2

main72380-48010iASU40,GSU45200905-201205

72525CHANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

main72525-0E020-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main72525-0E020-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

72551ECOVER, RECLINING HINGE, RH

main72551-0E010-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main72551-0E010-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

72593CKNOB, RECLINING REMOTE CONTROL LEVER, NO.2

main72593-0E020-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main72593-0E020-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

72615BCOVER, REAR SEAT LOCK STRIKER, RH

main72615-0E030-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main72615-0E030-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

72615HCOVER, REAR SEATBACK LOCK STRIKER, NO.1

main72615-0E040-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main72615-0E040-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

72681AHOOK, REAR SEAT

main72681-0E010iASU40,GSU45200905-201205

72704ACABLE, REAR SEAT RECLINING CONTROL

main72704-48080iASU40..D,SPO200905-201503

WITHOUT(REAR NO.2 SEAT)

main72704-48090iASU40,GSU45200905-201503

72749ASPACER, REAR SEAT RECLINING

main72749-0E060iASU40,GSU45200905-201503

72830DARMREST ASSY, REAR SEAT, RH

main72830-0E040-E0iASU40,GSU45..D200905-201503

SAND BEIGE,TRIM4#

main72830-0E050-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main72830-0E050-E0iASU40,GSU45..LIMD,SPO200905-201503

SAND BEIGE,TRIM4#

72996ACOVER, REAR SEATBACK

main72996-0E040-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main72996-0E040-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

72996BCOVER, REAR SEATBACK, INNER RH

main72996-0E050-C0iASU40,GSU45..D200905-201503

BLACK,TRIM2#

main72996-0E050-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK

79081CCOVER, REAR SEAT, NO.1

main79081-0E080iASU40,GSU45200905-201503

7270268020BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-68020

7889948010BOLT, FRONT SEAT

main78899-48010

7889948020BOLT, FRONT SEAT

main78899-48020

827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B660

8271233130CLAMP, WIRING HARNESS

main82712-33130

90105C0011

main90105-C0011

9016740044

main90167-40044

9016850078

main90168-50078

9321955016

main93219-55016

9351053510

main93510-53510

9415180800

main94151-80800

9454201400

main94542-01400

50 parts on this diagram · 7 diagrams in section
