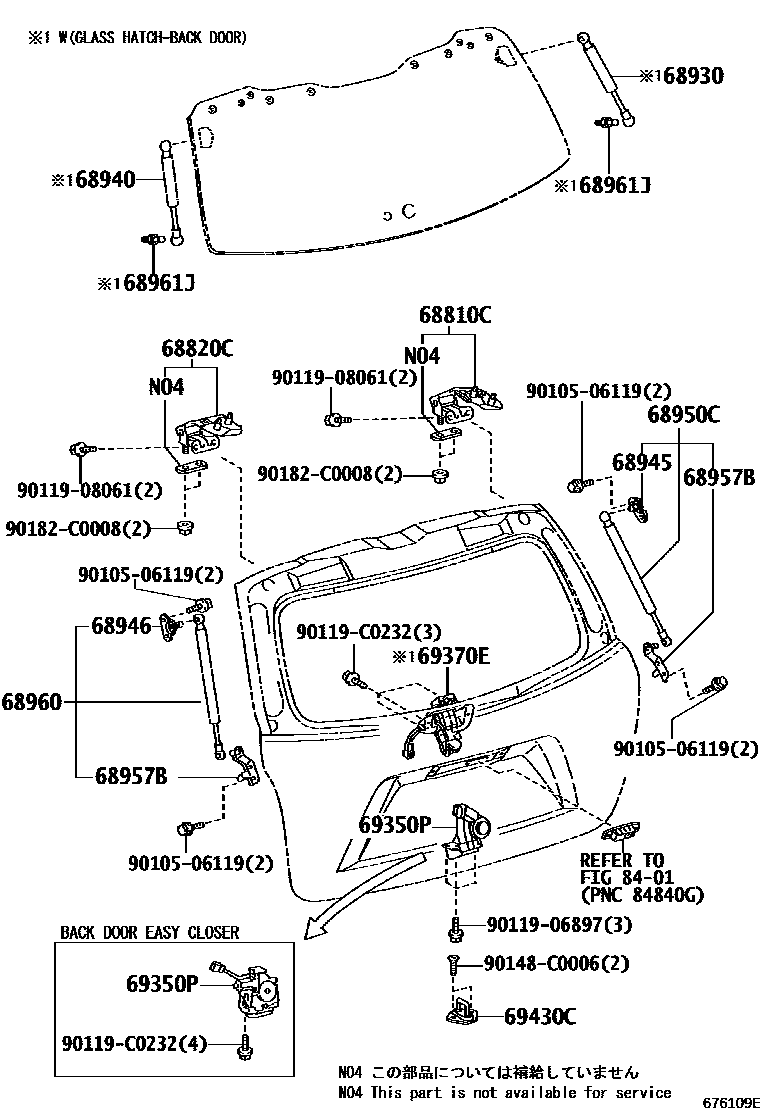

BACK DOOR LOCK & HANDLE

0001 1 0002 1POWER BACK DOOR PARTS

68810CHINGE ASSY, BACK DOOR, RH

main68810-0E010iASU40,GSU45200905-201005

PAD T=1.5

sub68810-0E011

main68810-0E011iASU40,GSU45201006-201108

PAD T=1.5

sub68810-0E130

main68810-0E030iASU40,GSU45200905-201005

PAD T=1.0

sub68810-0E031

main68810-0E031iASU40,GSU45201006-201108

PAD T=1.0

sub68810-0E140

main68810-0E040iASU40,GSU45200905-201005

PAD T=2.0

sub68810-0E041

main68810-0E041iASU40,GSU45201006-201108

PAD T=2.0

sub68810-0E150

main68810-0E130iASU40,GSU45201109-201503

PAD T=1.5

sub68810-0E131

main68810-0E140iASU40,GSU45201109-201503

PAD T=1.0

sub68810-0E141

main68810-0E150iASU40,GSU45201109-201503

PAD T=2.0

sub68810-0E151

68820CHINGE ASSY, BACK DOOR, LH

main68820-0E010iASU40,GSU45200905-201005

PAD T=1.5

sub68820-0E011

main68820-0E011iASU40,GSU45201006-201108

PAD T=1.5

sub68820-0E100

main68820-0E020iASU40,GSU45200905-201005

PAD T=1.0

sub68820-0E021

main68820-0E021iASU40,GSU45201006-201108

PAD T=1.0

sub68820-0E110

main68820-0E030iASU40,GSU45200905-201005

PAD T=2.0

sub68820-0E031

main68820-0E031iASU40,GSU45201006-201108

PAD T=2.0

sub68820-0E120

main68820-0E100iASU40,GSU45201109-201205

PAD T=1.5

sub68820-0E101

main68820-0E110iASU40,GSU45201109-201205

PAD T=1.0

sub68820-0E111

main68820-0E120iASU40,GSU45201109-201205

PAD T=2.0

sub68820-0E121

68930STAY ASSY, BACK WINDOW, RH

main68930-48020iASU40,GSU45..LIMD,SPO200905-201005

sub68930-48021

main68930-48021iASU40,GSU45..LIMD,SPO201006-201205

68940STAY ASSY, BACK WINDOW, LH

main68940-48020iASU40,GSU45..LIMD,SPO200905-201005

sub68940-48021

main68940-48021iASU40,GSU45..LIMD,SPO201006-201205

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-48040iASU40,GSU45..LIMD200905-201205

main68945-48060iASU40,GSU45..D,SPO200905-201205

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-48040iASU40,GSU45..LIMD200905-201205

main68946-48010iASU40,GSU45..D,SPO200905-201205

68950CSTAY ASSY, BACK DOOR, RH

main68950-49248iASU40,GSU45..SPO200905-201006

sub68950-49265

main68950-49257iASU40,GSU45..D200905-201006

sub68950-49277

main68950-49258iASU40,GSU45..LIMD200905-201006

sub68950-49276

main68950-49265iASU40,GSU45..SPO201006-201203

sub68950-49335

main68950-49276iASU40,GSU45..LIMD201006-201203

sub68950-49375

main68950-49277iASU40,GSU45..D201006-201203

sub68950-49365

main68950-49335iASU40,GSU45..SPO201204-201205

main68950-49365iASU40,GSU45..D,SPO201204-201205

main68950-49375iASU40,GSU45..LIMD201204-201205

68957BBRACKET, BACK DOOR STAY, LOWER

main68957-48010iASU40,GSU45200905-201205

RH

main68957-48020iASU40,GSU45200905-201205

LH

68960STAY ASSY, BACK DOOR, LH

main68960-49248iASU40,GSU45..SPO200905-201006

sub68960-49265

main68960-49257iASU40,GSU45..D200905-201006

sub68960-49268

main68960-49258iASU40,GSU45..LIMD200905-201006

sub68960-49267

main68960-49265iASU40,GSU45..SPO201006-201203

sub68960-49335

main68960-49267iASU40,GSU45..LIMD201006-201203

sub68960-49375

main68960-49268iASU40,GSU45..D201006-201203

sub68960-49365

main68960-49335iASU40,GSU45..SPO201204-201205

main68960-49365iASU40,GSU45..D201204-201205

main68960-49375iASU40,GSU45..LIMD201204-201205

68961BOLT, BACK DOOR STAY

main68961-23010iASU40,GSU45..LIMD200905-201205

68961JBOLT, BACK WINDOW STAY

main68961-20140iASU40,GSU45..LIMD,SPO200905-201205

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0E050iASU40,GSU45..D,SPO200905-201503

sub69350-0E051

main69350-0E060iASU40,GSU45..LIMD200905-201503

sub69350-0E061

69370ELOCK ASSY, BACK WINDOW

main69370-48010iASU40,GSU45..LIMD,SPO200905-201205

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0E030iASU40,GSU45200905-201205

8401

9010506119

main90105-06119

9011906897

main90119-06897

9011908061

main90119-08061

90119C0232

main90119-C0232

90148C0006

main90148-C0006

90182C0008

main90182-C0008

21 parts on this diagram · 2 diagrams in section
