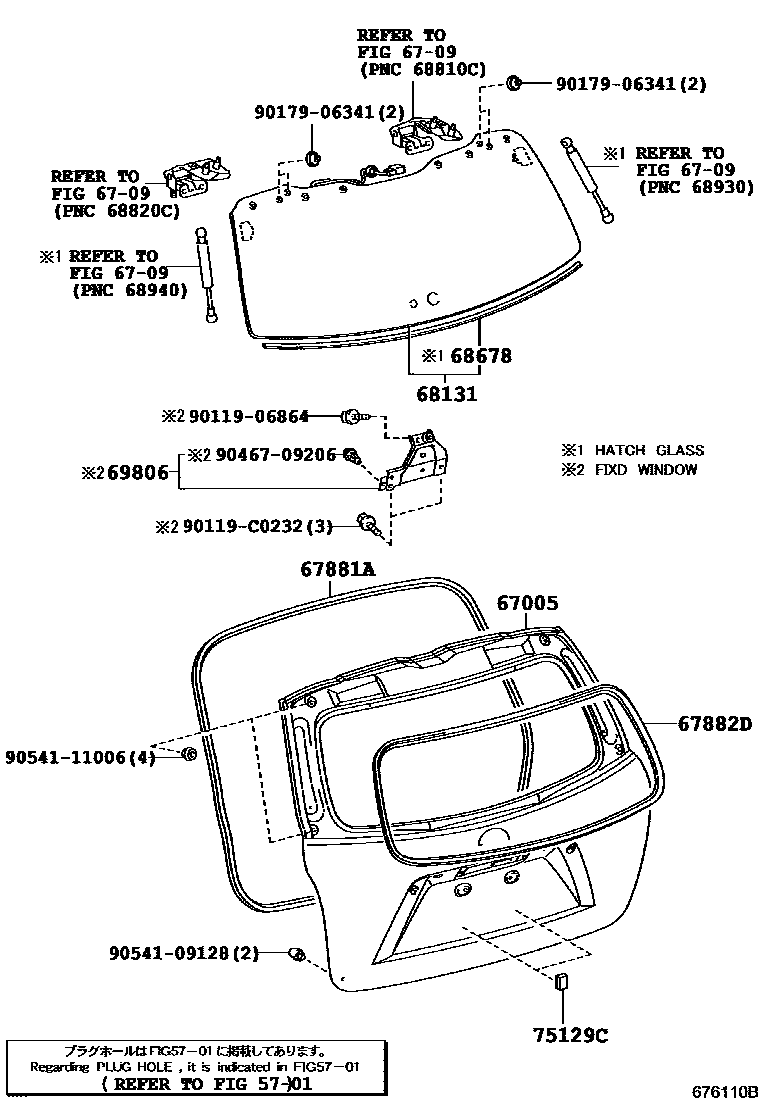

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

67005PANEL SUB-ASSY, BACK DOOR

main67005-0E170iASU40,GSU45..LIMD201205

main67005-0E180iASU40,GSU45..SPO200905-201205

main67005-0E190iASU40,GSU45..D200905-201205

6709

67881AWEATHERSTRIP, BACK DOOR

main67881-0E030iASU40,GSU45200905-201205

main67881-0E031iASU40,GSU45201407

67882DWEATHERSTRIP, BACK DOOR, NO.2

main67882-0E010iASU40,GSU45200905-201205

main67882-0E011iASU40,GSU45201407

68131GLASS, BACK DOOR

main68105-0E030iASU40,GSU45..D200905-201203

*EHT,T=5.0,PRIVACY

main68105-0E031iASU40,GSU45..D201204-201205

*EHT,T=5.0,PRIVACY

main68105-0E040iASU40,GSU45..LIMD201205

*EHT,T=5.0,PRIVACY

68678PROTECTOR, BACK DOOR WINDOW

main68678-0E010iASU40,GSU45..LIMD,SPO200905-201205

69806BRACKET SUB-ASSY, BACK DOOR GLASS GUIDE

main69806-0E010iASU40,GSU45..D200905-201205

75129CCUSHION, REAR LICENCE PLATE

main75129-0E020×2iASU40,GSU45200905-201205

9011906864

main90119-06864

90119C0232

main90119-C0232

9017906341

main90179-06341

9046709206

main90467-09206

9054109128

main90541-09128

9054111006

main90541-11006

15 parts on this diagram · 2 diagrams in section
